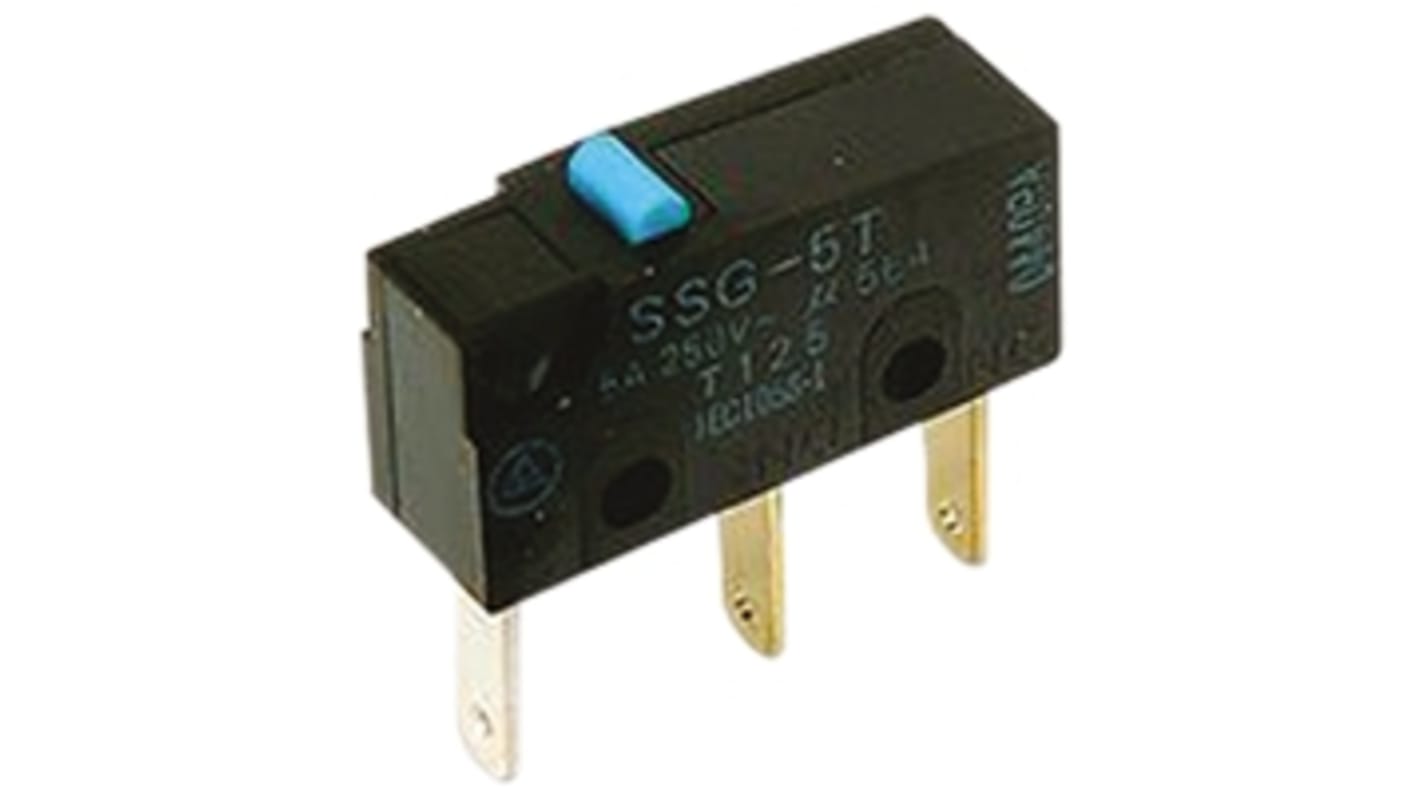

Omron Pin Plunger Subminiature Micro Switch, Tab Terminal, 5 A, 250 V ac, 30 V dc, SPDT, IP40

This subminiature micro switch is a high-performance electrical switch designed for automation and control applications. Featuring a Compact design, it integrates seamlessly into various devices while providing reliable functionality. With a pin plunger actuator and quick connect Terminal type, this switch ensures efficient operation. It operates effectively at a contact rating of 5A at 125 V AC and maintains performance across a temperature range of -25 to +125 °C.

• Compact form factor for space-constrained applications
• Pin plunger mechanism enhances reliability and ease of use
• Quick connect feature simplifies installation and maintenance
• SPDT configuration enables versatile circuit designs
• High mechanical life of 10 million operations for longevity

• Used in control panels for automation equipment
• Ideal for Compact appliances requiring precise switching
• Effective in security systems as a limit switch
• Utilised in consumer electronics for reliable performance
• Suited for HVAC systems for effective temperature control

The IP40 rating indicates that the switch is protected against solid objects larger than 1mm, making it suitable for indoor use where dust ingress is limited but not completely prevented. This ensures dependable operation in controlled environments.

The operating force of 0.5 N means less effort is required to actuate the switch. This feature is particularly beneficial in applications where user comfort and ease of operation are essential.

Yes, it can operate within a temperature range of -25 to +125 °C, making it suitable for various environments, including industrial settings where temperature fluctuations are common.

Silver contact material provides low contact resistance, improving the overall electrical performance and reducing heat generation during operation, which enhances reliability and lifespan.

UL, CSA, VDE, TUV, BEAB, IMQ
