Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	3M
	Product Type	Copper Tape
	Backing Material	Lead Foil
	Width	25mm
	Thickness	25mm
	Length	20m
	Conductivity	Conductive
	Colour	Copper
	Adhesive Material	Acrylic
	Complies with EN Legislation	No
	Model Number	2245
	Standards/Approvals	No

	Select all
	Brand 3M
	Product Type Copper Tape
	Backing Material Lead Foil
	Width 25mm
	Thickness 25mm
	Length 20m
	Conductivity Conductive
	Colour Copper
	Adhesive Material Acrylic
	Complies with EN Legislation No
	Model Number 2245
	Standards/Approvals No

Datasheet - 2245 25MMx20M

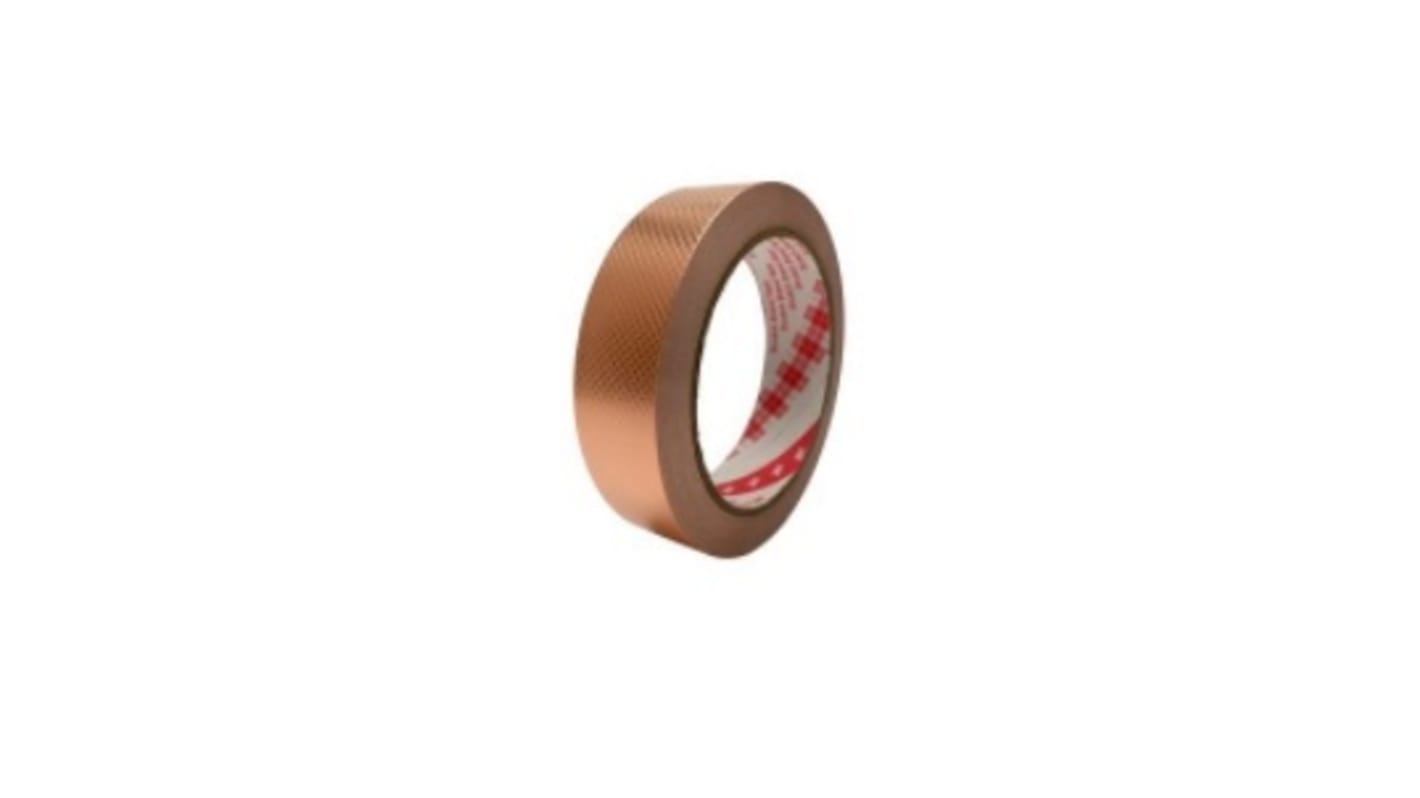

3M Copper Tape, 25mm Width, 20m Length - 2245 25MMx20M

This copper tape serves as a versatile solution for various electrical applications. It features a conductive adhesive on an embossed 0.035mm copper foil, providing effective connectivity across different environments. Its excellent conductivity and flame retardancy make it suitable for use in electronics, automation, and mechanical industries, facilitating dependable electrical connections and shielding.

Features & Benefits

• High conductivity from direct contact with adherend

• Suitable for electrical shielding applications

• Compliant with UL510 flame retardant standards

• Acrylic adhesive offers strong bonding

Applications

• Grounding and shielding electrical components

• in printed circuit boards

• Utilisation in electronics for robust connectivity

• Mechanical assemblies requiring conductive adhesive

What surfaces can it be applied to?

It can be applied effectively to a variety of surfaces including metal, plastic, and PCB materials, ensuring strong adhesion and conductivity.

How should it be stored to maintain its properties?

Store in a cool, dry location away from direct sunlight and high humidity to preserve adhesive properties and overall effectiveness.

What is the maximum temperature tolerance for this tape?

It can withstand a temperature range appropriate for most electrical applications; for extreme conditions, refer to specific usage guidelines related to thermal limits.

3M 2245 Conductive Copper Tape, 25mm x 20 m
