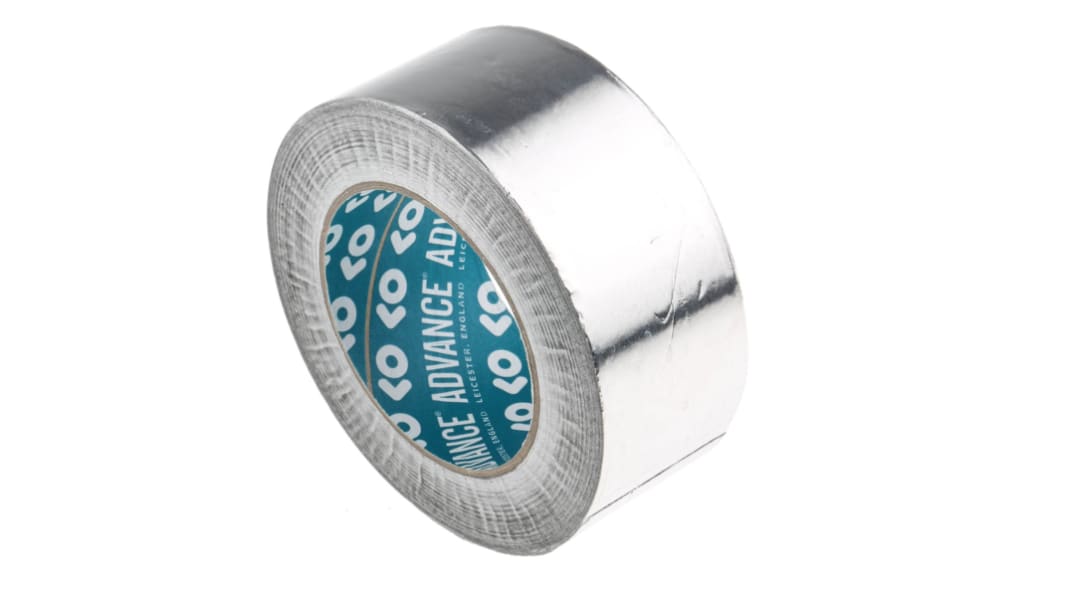

Advance Tapes AT500 Non-Conductive Metallic Tape, 50mm x 45m

RS stock no.:: 176-567
Mfr. Part No.:: AT500
Manufacturer:: Advance Tapes

Advance Tapes AT500 Non-Conductive Metallic Tape, 50mm x 45m

Bulk discount available

Subtotal (1 unit)*

R 317,50

(exc. VAT)

R 365,12

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

523 unit(s) ready to ship from another location
Plus 252 unit(s) shipping from 01 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	R 317.50
10 - 19	R 309.56
20 - 49	R 300.27
50 +	R 288.26

*price indicative

RS stock no.:: 176-567
Mfr. Part No.:: AT500
Manufacturer:: Advance Tapes

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Advance Tapes
	Tape Type	Aluminium Tape
	Total Thickness	0.08mm
	Foil Thickness	0.04mm
	Width	50mm
	Length	45m
	Conductivity	Non-Conductive
	Adhesion Strength	3.8 N/cm
	Adhesive Material	Acrylic
	Tensile Strength	22N/cm
	Maximum Temperature Resistance	+110°C
	Minimum Temperature Resistance	-20°C
	Model Number	AT500

	Select all
	Brand Advance Tapes
	Tape Type Aluminium Tape
	Total Thickness 0.08mm
	Foil Thickness 0.04mm
	Width 50mm
	Length 45m
	Conductivity Non-Conductive
	Adhesion Strength 3.8 N/cm
	Adhesive Material Acrylic
	Tensile Strength 22N/cm
	Maximum Temperature Resistance +110°C
	Minimum Temperature Resistance -20°C
	Model Number AT500

AT500 40 Micron Aluminium Foil Tape - Datasheet

Exempt

COO (Country of Origin):: GB

Advance Tapes Aluminium Tape

The Advance Tapes non-conductive aluminium tape is backed with a strong, polythene-coated release paper. It is a 40μm aluminium foil, coated one side with an acrylic, pressure-sensitive adhesive. This tape is 0.08mm thick, 50mm wide and 45m long.

Note:

There is no electrolytic corrosion factor associated with these products.

Features and Benefits

Breaking load is 22N/cm

Elongation is 5%

Operating temperature ranges between -20°C and 110°C

Flame retardant

Good high-temperature resistance

Easy tear and unwind

Water-resistant

Joining foil-faced glass fibre or rock wool suitable for heat reflection

Sealing cold store insulation, packing refrigerated export containers

Decoration of point of sale media

Sealing double glazing units

Peel off backing

Applications

Heating and ventilation

Construction industry

Manufacturing

Duct sealing

Certifications

BS476 part 6 and part 7 category 1

Fire class M1

Class O
