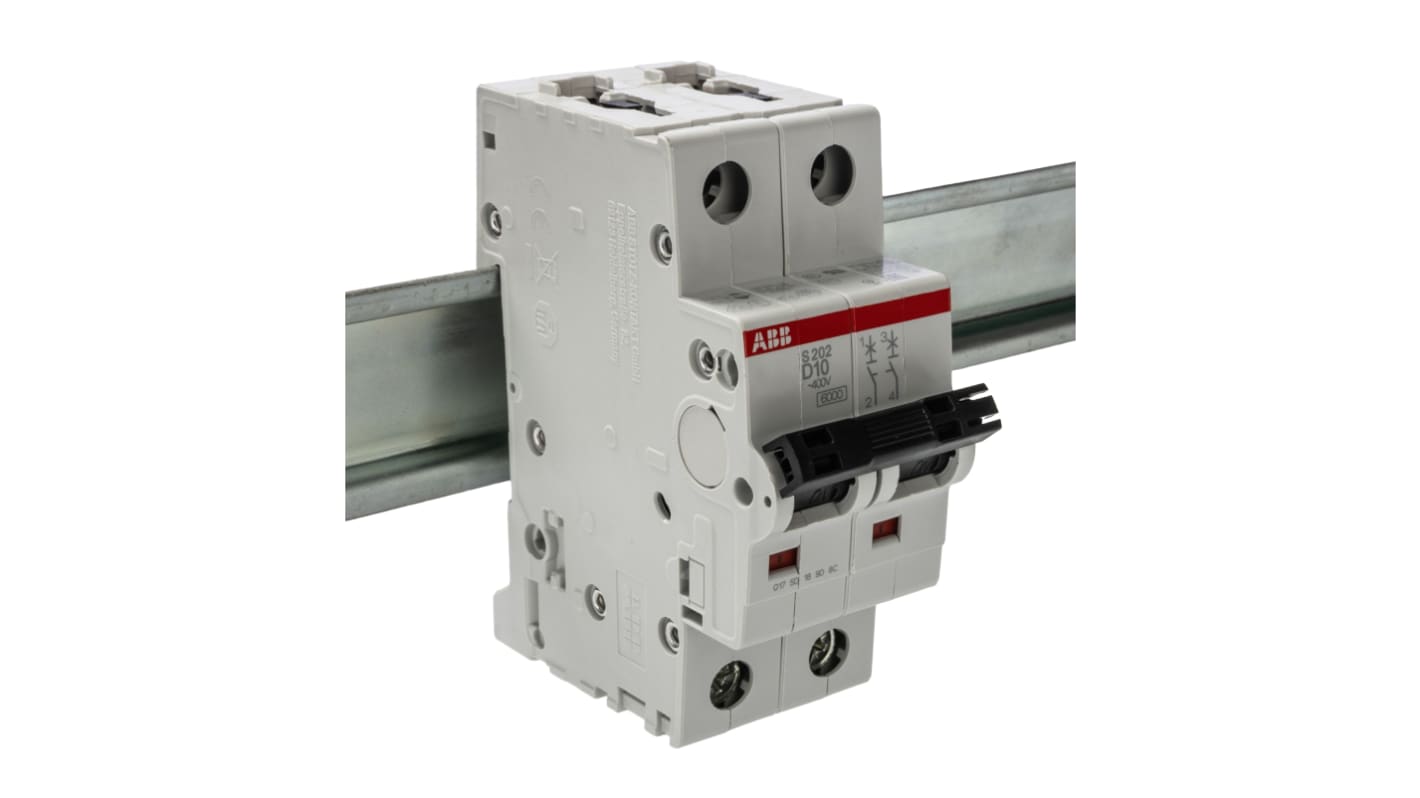

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 10A, Type D, 400V ac AC, 125 V dc DC, 6 kA Breaking
- RS stock no.:
- 746-7851
- Mfr. Part No.:
- 2CDS252001R0101 S202-D10
- Manufacturer:
- ABB
Subtotal (1 unit)*
R 1 186,56
(exc. VAT)
R 1 364,54
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 26 unit(s) ready to ship from another location
- Plus 21 unit(s) shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 1,186.56 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS stock no.:
- 746-7851
- Mfr. Part No.:
- 2CDS252001R0101 S202-D10
- Manufacturer:
- ABB
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 10A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 125V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 6kA | |
| Range | System Pro M Compact | |
| Series | S200 | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Width | 35mm | |
| Height | 69mm | |
| Depth | 69mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Tripping Mechanism | Electromagnetic, Thermomagnetic | |
| Reset Actuator Type | Lever | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 10A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 125V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 6kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Width 35mm | ||
Height 69mm | ||
Depth 69mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Tripping Mechanism Electromagnetic, Thermomagnetic | ||
Reset Actuator Type Lever | ||
- COO (Country of Origin):
- DE
ABB S200 Series MCB, 10A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS252001R0101 S202-D10
This MCB is suitable for commercial and industrial environments, providing essential protection for electrical circuits. It prevents damage from short circuits and overloads, adhering to industry standards for reliability and longevity.
Features & Benefits
• Incorporates a thermal electromechanical tripping mechanism for effective protection
• Offers a 10 A circuit breaker rating for various installations
• Utilises Type D characteristics for a robust short circuit response
• Features screw terminal contacts for secure electrical connections
• Allows for easy DIN rail mounting for quick installation and replacements
• Designed with disassembly considerations to promote sustainability
Applications
• Utilised in commercial electrical distribution systems
• Appropriate for industrial machinery and equipment circuits
• Suitable for electrical systems requiring effective overload protection
• Applied in environments where short circuit protection is critical
What type of installation is recommended for this product?
It is recommended to install this in a DIN rail configuration for optimal performance.
How often should it be inspected for effectiveness?
Regular inspections should be conducted in line with local electrical safety regulations and requirements.
Can it be used in outdoor environments?
This device is intended for indoor use unless specified otherwise, so precautions are necessary for outdoor installations.
What is the process for resetting this after a trip?
Resetting can be performed using the lever, ensuring it is in the correct position before re-energising the circuit.
Is it compatible with existing electrical systems?
Yes, it is designed to integrate seamlessly with standard commercial and industrial electrical setups.
