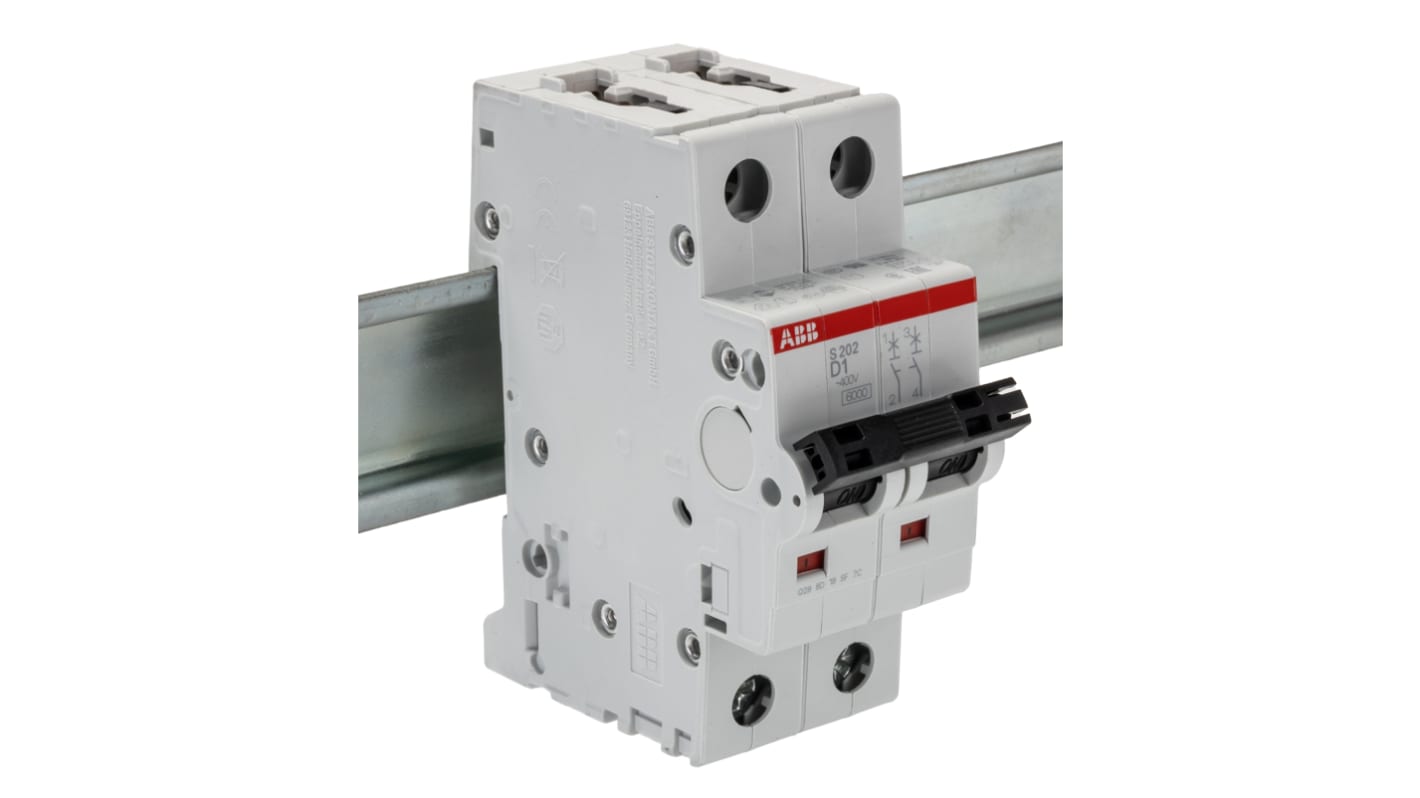

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 1 A, Type D, 400 V ac AC, 125 V dc DC, 6 kA Breaking

RS stock no.:: 746-7839
Mfr. Part No.:: 2CDS252001R0011 S202-D1
Manufacturer:: ABB

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 1 A, Type D, 400 V ac AC, 125 V dc DC, 6 kA Breaking

View all MCBs

Subtotal (1 unit)*

R 1 279,63

(exc. VAT)

R 1 471,57

(inc. VAT)

FREE delivery for orders over R 1,500.00

Temporarily out of stock

6 unit(s) shipping from 20 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 1,279.63

*price indicative

RS stock no.:: 746-7839
Mfr. Part No.:: 2CDS252001R0011 S202-D1
Manufacturer:: ABB

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Product Type	Miniature Circuit Breaker
	Number of Poles	2
	Current Rating	1 A
	Tripping Characteristics	Type D
	Rated AC Voltage	400 V ac
	Rated DC Voltage	125 V dc
	Breaking Capacity	6kA
	Mount Type	DIN Rail
	Range	System Pro M Compact
	Series	S200
	Terminal Type	Cage Terminal
	IP Rating	IP20, IP40
	Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
	Depth	69mm
	Height	69mm
	Width	35 mm
	Tripping Mechanism	Electromagnetic, Thermomagnetic
	Reset Actuator Type	Lever

	Select all
	Brand ABB
	Product Type Miniature Circuit Breaker
	Number of Poles 2
	Current Rating 1 A
	Tripping Characteristics Type D
	Rated AC Voltage 400 V ac
	Rated DC Voltage 125 V dc
	Breaking Capacity 6kA
	Mount Type DIN Rail
	Range System Pro M Compact
	Series S200
	Terminal Type Cage Terminal
	IP Rating IP20, IP40
	Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2
	Depth 69mm
	Height 69mm
	Width 35 mm
	Tripping Mechanism Electromagnetic, Thermomagnetic
	Reset Actuator Type Lever

COO (Country of Origin):: DE

ABB S200 Series MCB, 1A Current Rating, 10kA Breaking Capacity (at Maximum Voltage Rating) - S202-D1

This circuit breaker is a key component for commercial and industrial applications, facilitating efficient electrical circuit management. It provides crucial short circuit protection, enhancing operational safety. Its robust construction and dependable functionality make it an integral part of contemporary electrical installations.

Features & Benefits

• Delivers a 10kA breaking capacity for improved safety

• Utilises a thermal electromechanical tripping mechanism for effective operation

• Designed for DIN rail mounting for straightforward installation

• Incorporates a lever reset actuator for speedy recovery after a trip

• Features screw terminal contacts for secure connections

• Constructed with a focus on disassembly for eco-friendly practices

Applications

• Ideal for circuit protection in commercial buildings

• Utilised with machinery in industrial settings

• Suitable for residential electrical systems requiring robust protection

• Applicable in automation sectors that demand reliable circuit management

• Effective for controlling and protecting electrical appliances

What type of environment is suitable for installation?

The circuit breaker is appropriate for both commercial and industrial environments, ensuring effective electrical protection.

How can I reset the device after a tripping event?

It is equipped with a lever reset actuator that allows for quick recovery following a fault event.

Is this suitable for use with both AC and DC applications?

Yes, it is rated for a maximum AC voltage of 400V and a DC voltage of 125V, making it versatile for various applications.

What is the installation method for this device?

The device is designed for simple mounting on standard DIN rails, facilitating easy installation in electrical panels.

What protection does it provide against electrical faults?

It is designed with a short circuit protection feature, safeguarding circuits from unexpected overloads or faults.
