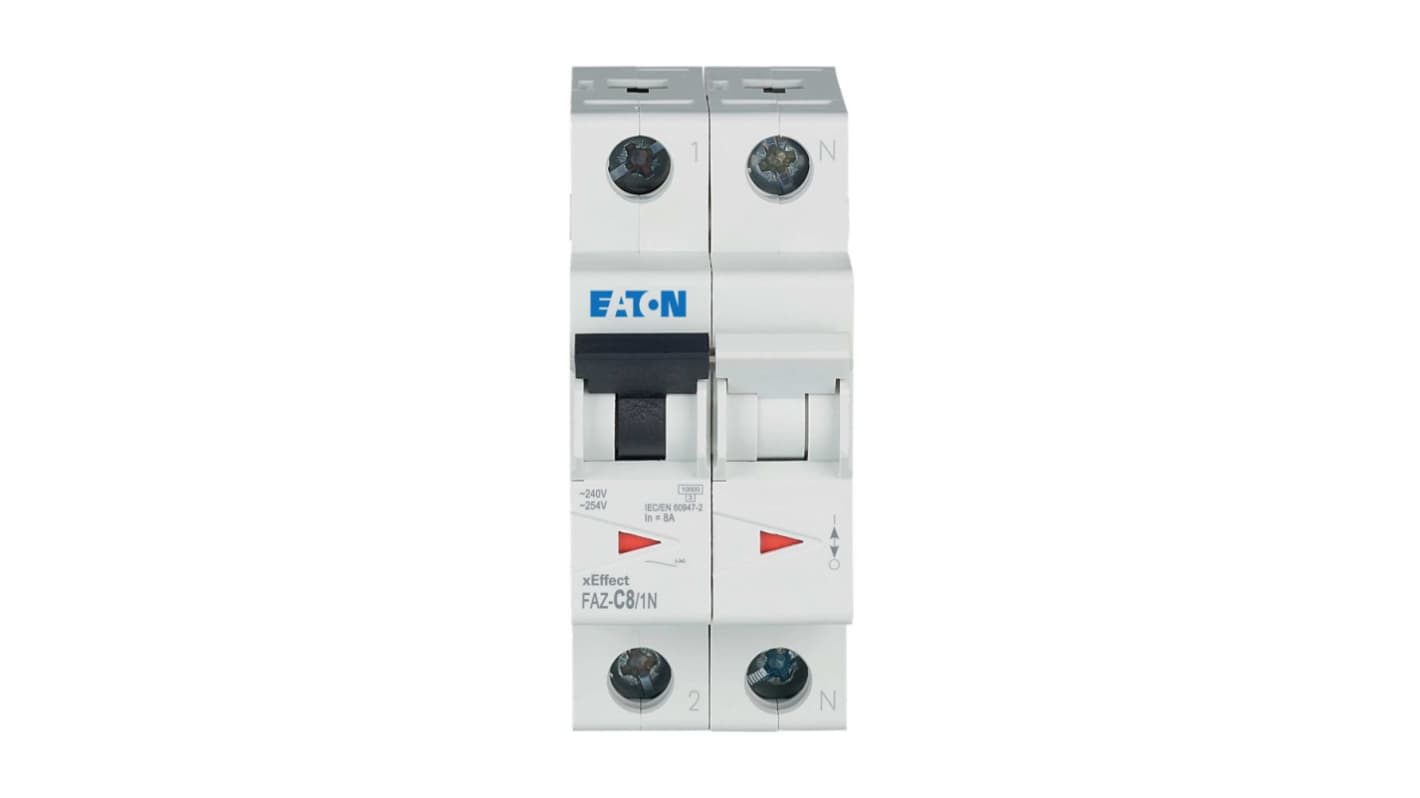

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 8A, Type C, 230V ac AC, 60 V dc DC, 10 kA Breaking Capacity
- RS stock no.:
- 259-589
- Mfr. Part No.:
- 278669 FAZ-C8/1N
- Manufacturer:
- Eaton
Subtotal (1 unit)*
R 1 830,99
(exc. VAT)
R 2 105,64
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | R 1,830.99 |
*price indicative
- RS stock no.:
- 259-589
- Mfr. Part No.:
- 278669 FAZ-C8/1N
- Manufacturer:
- Eaton
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 8A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230V ac | |
| Rated DC Voltage | 60V dc | |
| Breaking Capacity | 10kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| Terminal Type | Twin-Purpose Terminal | |
| IP Rating | IP20, IP40 | |
| Width | 17.5mm | |
| Standards/Approvals | EN45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | |
| Height | 75.5mm | |
| Depth | 80mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 8A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230V ac | ||
Rated DC Voltage 60V dc | ||
Breaking Capacity 10kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
Terminal Type Twin-Purpose Terminal | ||
IP Rating IP20, IP40 | ||
Width 17.5mm | ||
Standards/Approvals EN45545-2, IEC 61373, IEC/EN 60898, IEC/EN 60947-2 | ||
Height 75.5mm | ||
Depth 80mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is designed to ensure optimal protection in industrial environments. It combines functionality with advanced technology, offering features such as high breaking capacity and temperature resistance. The product is specifically engineered to fit seamlessly into modern switchgear solutions, safeguarding electrical systems against overloads and short circuits. With its compact design, the product maximises space efficiency while ensuring robust performance.
Amber rated for temperature compliance ensures safe operation in varied conditions
IP40 rating provides effective protection against solid objects
Versatile mounting position allows for flexible installation options
Dual terminal types enhance connectivity with various conductor types
Guaranteed lifespan of 10000 operations enhances reliability
