Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, 1 NO/1 NC, IP66, IP67, Zinc Alloy Housing, 240V ac,

View all Limit Switches
Currently unavailable
Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Honeywell GLC Series Adjustable Roller Lever Limit Switch, SPDT, IP66, Die Cast Zinc Housing, 240V ac, 6A
RS stock no.
308-1951

Each

R 3,186.89

(exc. VAT)

R 3,664.92

(inc. VAT)

RS stock no.:
447-3519
Mfr. Part No.:
XCKD2145P16
Manufacturer:
Telemecanique Sensors
Find similar products by selecting one or more attributes.
Select all

Brand

Telemecanique Sensors

Product Type

Limit Switch

Actuator Type

Roller Lever

Contact Configuration

1 NO/1 NC

IP Rating

IP66, IP67

Housing Material

Zinc Alloy

Contact Type

Snap Action

Terminal Type

Screw Clamp

Switching Current

3A

Series

OsiSense XC

Switching AC Voltage

240V ac

Switching DC Voltage

250V dc

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

70°C

Standards/Approvals

CSA, EN, IEC, REACH, RoHS, UL

Depth

30mm

Width

31mm

Length

65mm

Hazardous Area Certification

NO

Conduit Entry

M16

Operating Force

0.25Nm

Mechanical Life

10000000Cycles

Exempt

COO (Country of Origin):
ID

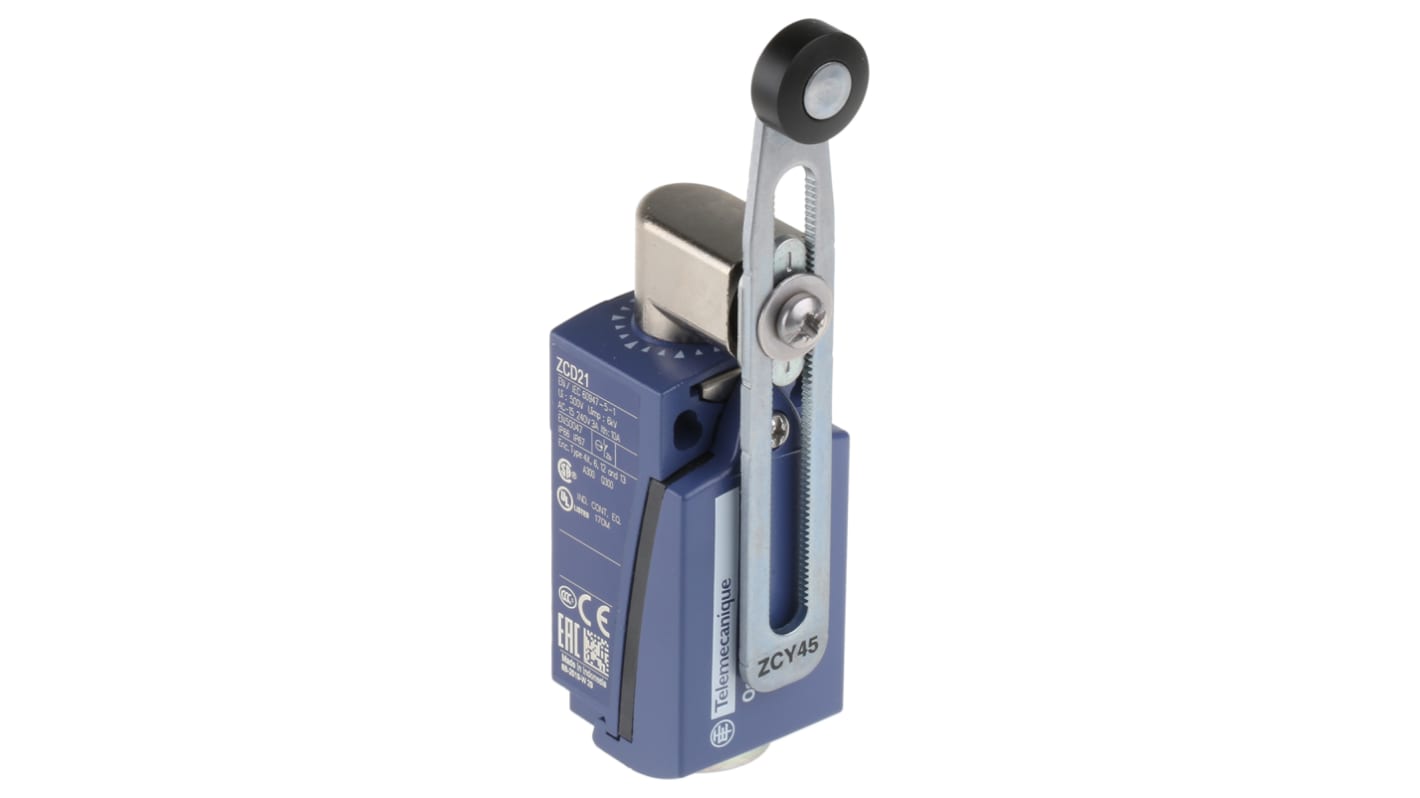

Telemecanique XCKD2145P16 Limit Switch


• Forms part of the OsiSense XC range of products

• Fixed body type

• Features a rotary head

• Comprised of a hardwearing metal material

• The operator type is a spring return roller lever thermoplastic variable length

• 1NC - 1 NO contact types

• 2 poles

• Snap-action contact operation

• Minimum torque for tripping is 0.1 N.m

• Dimensions – W31mm X H65mm x D30mm

Telemecanique Electromechanical Limit Switches


Introducing Telemecanique OsiSense XC range of limit switches and accessories. With precise operating points and visible operation, these Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before. These ones in particular also feature double insulation and have a robust, hard-wearing material.

The products that sit within this range are compact and easy to use, they are made up from reinforced UL-VO thermoplastic which provides an extra layer of protection and has an IP rating of IP66.

How does a limit switch work?


The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
