Telemecanique Sensors OsiSense XC Series Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240 V ac, 3 A

RS stock no.:: 230-1951
Mfr. Part No.:: XCKM121
Manufacturer:: Telemecanique Sensors

Telemecanique Sensors OsiSense XC Series Plunger Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240 V ac, 3 A

Currently unavailable

Sorry, we don't know when this will be back in stock.

Alternative

This product is not currently available. Here is our alternative recommendation.

Telemecanique Sensors OsiSense XC Series Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240 V ac, 3 A

RS stock no.: 360-8562

Each

R 816.39

(exc. VAT)

R 938.85

(inc. VAT)

RS stock no.:: 230-1951
Mfr. Part No.:: XCKM121
Manufacturer:: Telemecanique Sensors

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Telemecanique Sensors
	Product Type	Limit Switch
	Actuator Type	Plunger
	Contact Configuration	1 NO/1 NC
	IP Rating	IP66
	Housing Material	Zinc Alloy
	Contact Type	Snap Action
	Terminal Type	Screw Clamp
	Switching Current	3 A
	Series	OsiSense XC
	Switching AC Voltage	240 V ac
	Minimum Operating Temperature	-25°C
	Switching DC Voltage	250 V dc
	Maximum Operating Temperature	70°C
	Width	63 mm
	Length	64mm
	Depth	30mm
	Standards/Approvals	CSA, CCC, RoHS, UL, IEC, REACH
	Hazardous Area Certification	No
	Conduit Entry	PG11
	Mechanical Life	20000000Cycles
	Operating Force	24N

	Select all
	Brand Telemecanique Sensors
	Product Type Limit Switch
	Actuator Type Plunger
	Contact Configuration 1 NO/1 NC
	IP Rating IP66
	Housing Material Zinc Alloy
	Contact Type Snap Action
	Terminal Type Screw Clamp
	Switching Current 3 A
	Series OsiSense XC
	Switching AC Voltage 240 V ac
	Minimum Operating Temperature -25°C
	Switching DC Voltage 250 V dc
	Maximum Operating Temperature 70°C
	Width 63 mm
	Length 64mm
	Depth 30mm
	Standards/Approvals CSA, CCC, RoHS, UL, IEC, REACH
	Hazardous Area Certification No
	Conduit Entry PG11
	Mechanical Life 20000000Cycles
	Operating Force 24N

Exempt

COO (Country of Origin):: ID

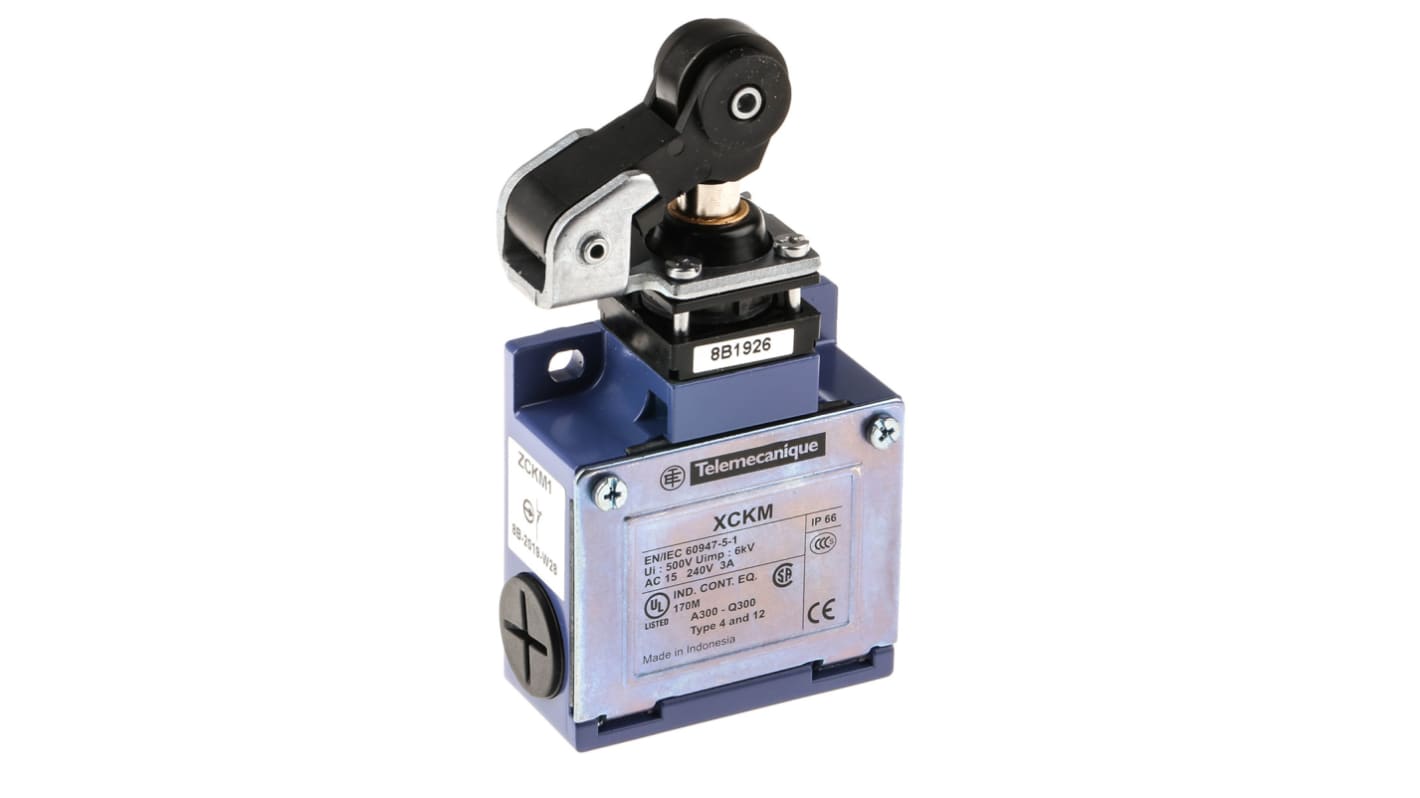

Telemecanique XCKM121 Limit Switch

• Forms part of the OsiSense XC range of products

• Fixed body type

• Features a plunger head

• Comprised of a hardwearing metal material

• The operator type is a spring return roller lever plunger thermoplastic

• 1NC - 1 NO contact types

• 2 poles

• Snap-action contact operation

• Minimum force for tripping 8 N

• Dimensions - W64mm x H64mm x D30mm

Telemecanique Limit Switches

Introducing Telemecanique XCKM range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.

Standards

IEC 947-5-1, NFC 63146,
VDE 0660-200, UL 508
