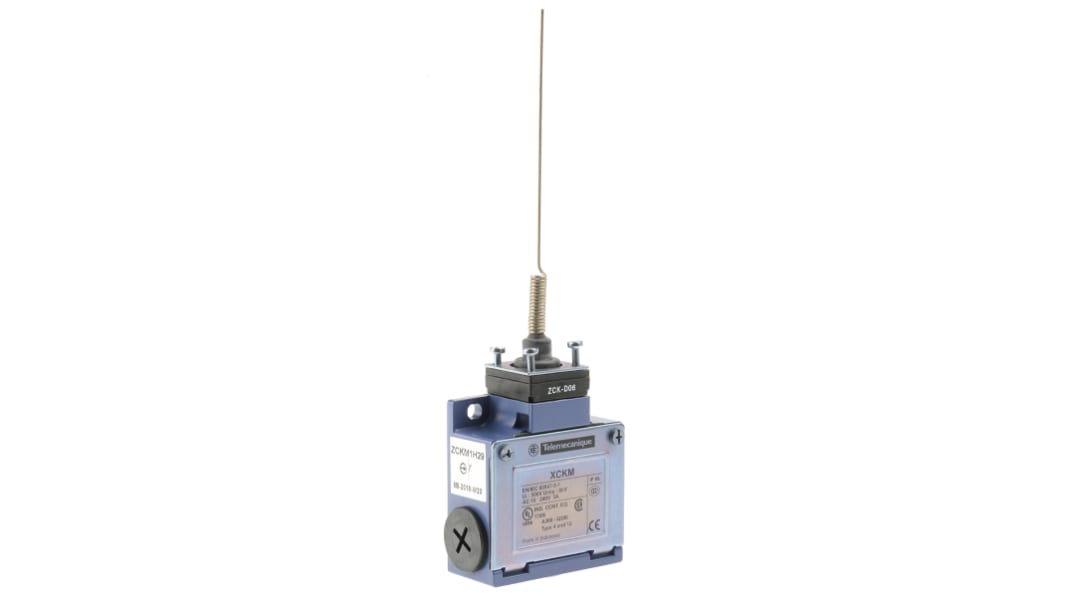

Telemecanique Sensors OsiSense XC Series Cats Whisker Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 240V ac, 3A
- RS stock no.:
- 236-013
- Mfr. Part No.:
- XCKM106H29
- Manufacturer:
- Telemecanique Sensors
Bulk discount available
Subtotal (1 unit)*
R 1 595,66
(exc. VAT)
R 1 835,01
(inc. VAT)
FREE delivery for orders over R 1,500.00
Limited stock
- 20 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,595.66 |
| 5 - 9 | R 1,555.77 |
| 10 + | R 1,509.10 |
*price indicative
- RS stock no.:
- 236-013
- Mfr. Part No.:
- XCKM106H29
- Manufacturer:
- Telemecanique Sensors
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Actuator Type | Cats Whisker | |
| Product Type | Limit Switch | |
| IP Rating | IP66 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Zinc Alloy | |
| Contact Type | Snap Action | |
| Terminal Type | Screw Clamp | |
| Switching Current | 3A | |
| Series | OsiSense XC | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 250V dc | |
| Maximum Operating Temperature | 70°C | |
| Length | 64mm | |
| Width | 63mm | |
| Depth | 30mm | |
| Standards/Approvals | IEC, REACH, RoHS, UL, CCC, CSA | |
| Hazardous Area Certification | No | |
| Operating Force | 0.13Nm | |
| Conduit Entry | M20 | |
| Mechanical Life | 10000000Cycles | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Actuator Type Cats Whisker | ||
Product Type Limit Switch | ||
IP Rating IP66 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Zinc Alloy | ||
Contact Type Snap Action | ||
Terminal Type Screw Clamp | ||
Switching Current 3A | ||
Series OsiSense XC | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 250V dc | ||
Maximum Operating Temperature 70°C | ||
Length 64mm | ||
Width 63mm | ||
Depth 30mm | ||
Standards/Approvals IEC, REACH, RoHS, UL, CCC, CSA | ||
Hazardous Area Certification No | ||
Operating Force 0.13Nm | ||
Conduit Entry M20 | ||
Mechanical Life 10000000Cycles | ||
Exempt
- COO (Country of Origin):
- ID
Telemecanique Limit Switches
Introducing Telemecanique XCKM range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.
How does a limit switch work?
The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.
Approvals
UL, CSA
Standards
VDE0660, IEC947-5-1
