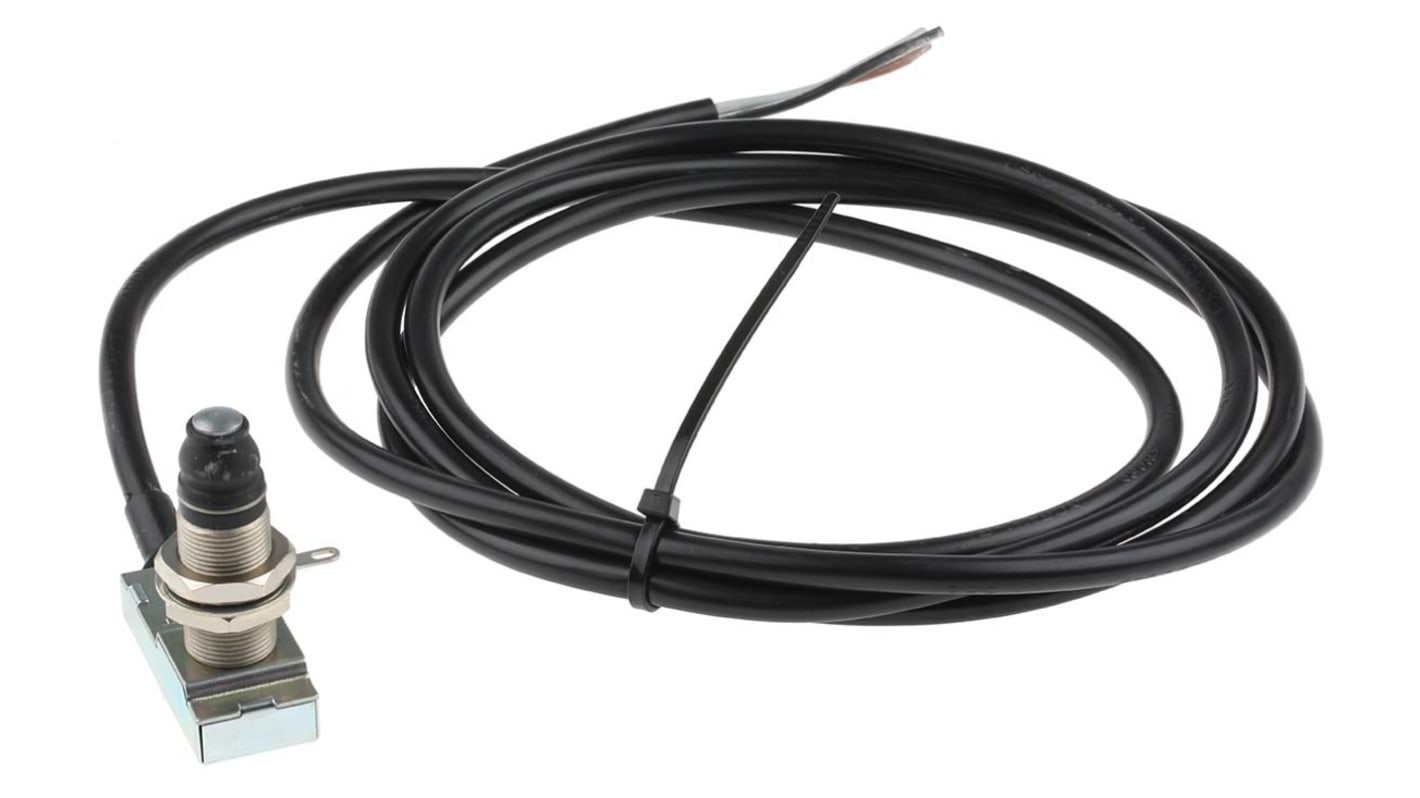

Crouzet 83731 Series Plunger Limit Switch, 1 NO/1 NC, IP66, 250V ac, 5A
- RS stock no.:
- 539-315
- Mfr. Part No.:
- 83731324
- Manufacturer:
- Crouzet
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
R 736.94
(exc. VAT)
R 847.48
(inc. VAT)
- RS stock no.:
- 539-315
- Mfr. Part No.:
- 83731324
- Manufacturer:
- Crouzet
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Actuator Type | Plunger | |
| Product Type | Limit Switch | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP66 | |
| Contact Type | Single Break | |
| Switching Current | 5A | |
| Terminal Type | Cable | |
| Series | 83731 | |
| Minimum Operating Temperature | -5°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C | |
| Length | 49.5mm | |
| Depth | 22mm | |
| Standards/Approvals | CSA | |
| Width | 49mm | |
| Hazardous Area Certification | No | |
| Mounting Orientation | Top | |
| Mechanical Life | 1000000Cycles | |
| Operating Force | 15N | |
| Conduit Entry | M16 | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Actuator Type Plunger | ||
Product Type Limit Switch | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP66 | ||
Contact Type Single Break | ||
Switching Current 5A | ||
Terminal Type Cable | ||
Series 83731 | ||
Minimum Operating Temperature -5°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 70°C | ||
Length 49.5mm | ||
Depth 22mm | ||
Standards/Approvals CSA | ||
Width 49mm | ||
Hazardous Area Certification No | ||
Mounting Orientation Top | ||
Mechanical Life 1000000Cycles | ||
Operating Force 15N | ||
Conduit Entry M16 | ||
- COO (Country of Origin):
- MA
Thermal current (Ith) 12 A
Assigned operating current (Ie) 5A at 250V
Minimum operating travel of 0.2mm
Temperature range -5 to +70 deg C
3 Terminal single pole form C changeover contacts
0.5M 3 core cable fitted, 0.75mm2 conductors
Hermetically sealed pushbutton limit switch, NO/NC
Mechanical life 1 000 000 operations
Approvals
CSA
