Crouzet 83874 Series Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Metal Housing, 240V ac, 6A

RS stock no.:: 539-214
Mfr. Part No.:: 83874101
Manufacturer:: Crouzet

Crouzet 83874 Series Plunger Limit Switch, 1 NO/1 NC, IP66, IP67, Metal Housing, 240V ac, 6A

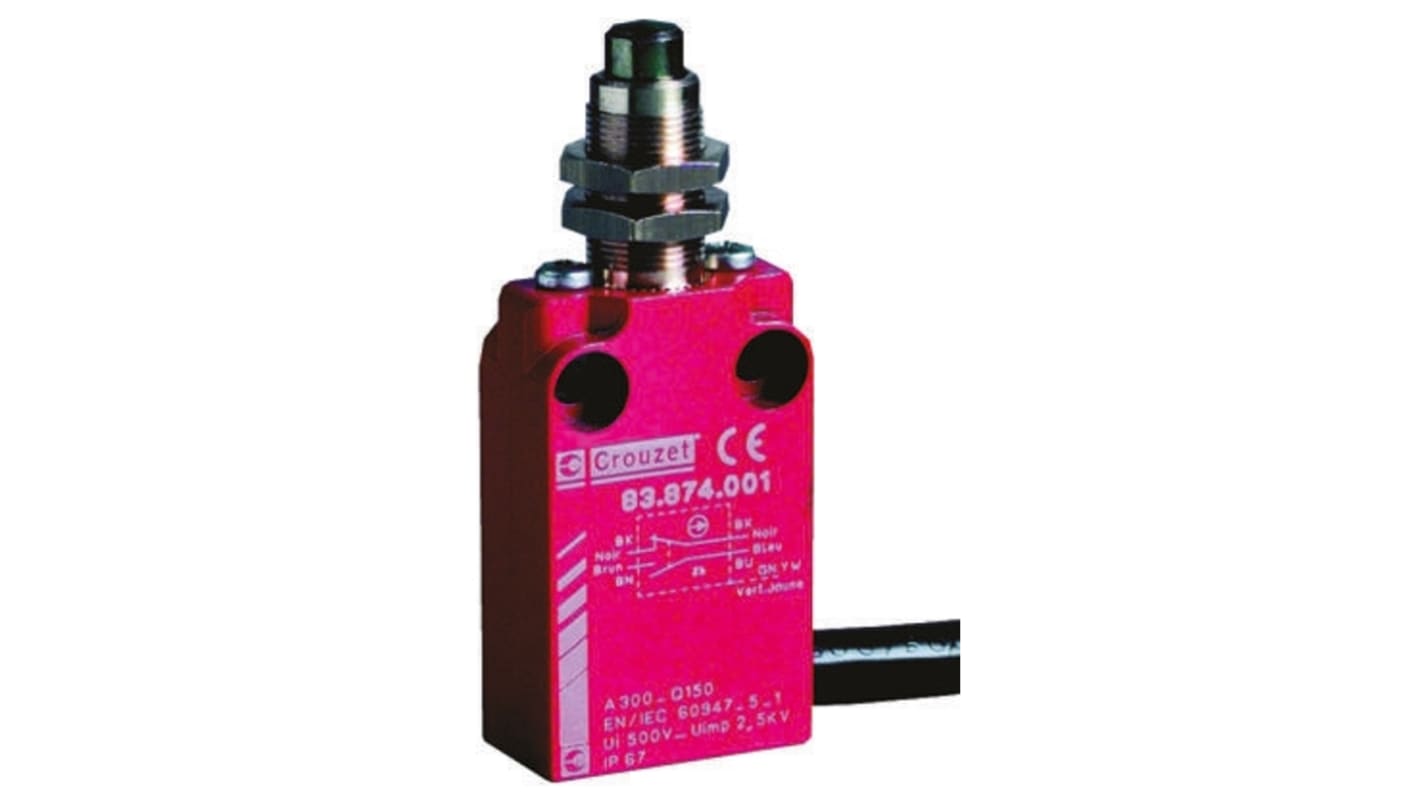

Image representative of range

Subtotal (1 unit)*

R 2 127,38

(exc. VAT)

R 2 446,49

(inc. VAT)

FREE delivery for orders over R 1,500.00

Limited stock

6 left, ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 2,127.38

*price indicative

RS stock no.:: 539-214
Mfr. Part No.:: 83874101
Manufacturer:: Crouzet

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Crouzet
	Actuator Type	Plunger
	Product Type	Limit Switch
	IP Rating	IP66, IP67
	Contact Configuration	1 NO/1 NC
	Housing Material	Metal
	Contact Type	Snap Action
	Terminal Type	Cable
	Switching Current	6A
	Series	83874
	Switching AC Voltage	240V ac
	Minimum Operating Temperature	-25°C
	Switching DC Voltage	125V dc
	Maximum Operating Temperature	70°C
	Width	30mm
	Length	74.8mm
	Depth	16mm
	Standards/Approvals	IEC, UL
	Hazardous Area Certification	No
	Operating Force	10N
	Mounting Orientation	Vertical
	Mechanical Life	10000000Operations

	Select all
	Brand Crouzet
	Actuator Type Plunger
	Product Type Limit Switch
	IP Rating IP66, IP67
	Contact Configuration 1 NO/1 NC
	Housing Material Metal
	Contact Type Snap Action
	Terminal Type Cable
	Switching Current 6A
	Series 83874
	Switching AC Voltage 240V ac
	Minimum Operating Temperature -25°C
	Switching DC Voltage 125V dc
	Maximum Operating Temperature 70°C
	Width 30mm
	Length 74.8mm
	Depth 16mm
	Standards/Approvals IEC, UL
	Hazardous Area Certification No
	Operating Force 10N
	Mounting Orientation Vertical
	Mechanical Life 10000000Operations

Datasheet

COO (Country of Origin):: MA

Compact Metal Limit Switch with Cable Output

Metal cased limit switches complete with fitted 5 core 0.75mm² 7.3mm ext. dia.cable and four terminal double break two-way contact elements with positive opening contacts which are electrically isolated from one another.

Impulse voltage 2500V

Insulation voltage 500V

Thermal Current (Ith) 10A

Minimum load switching voltage 10V

Minimum load switching current 10mA

Temperature range -25 to +70 deg C

Minimum current switching load 100mA

1 Metre cable length

20mm pitch mounting holes

IP66/67

Note

Dimensions refer to limit switch body only.

Approvals

UL508, UL50
