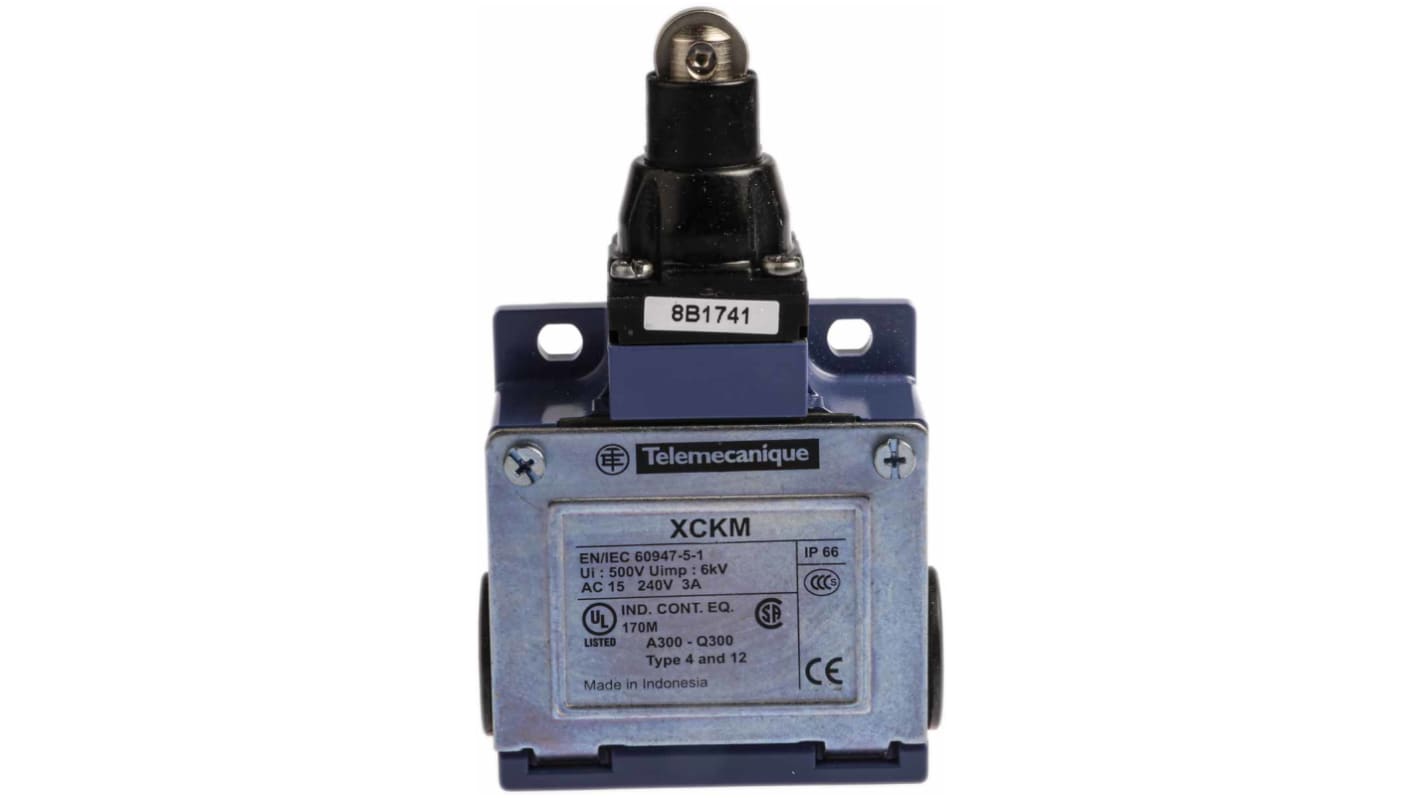

Telemecanique Sensors OsiSense XC Series Roller Plunger Limit Switch, 1 NO/1 NC, IP66, Zamak Housing, 240V ac, 3A
- RS stock no.:
- 235-981
- Distrelec Article No.:
- 304-22-212
- Mfr. Part No.:
- XCKM102H29
- Manufacturer:
- Telemecanique Sensors
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 1 663,92
(exc. VAT)
R 1 913,51
(inc. VAT)
FREE delivery for orders over R 1,500.00
Limited stock
- 28 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,663.92 |
| 5 - 9 | R 1,622.32 |
| 10 + | R 1,573.65 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
R 1,526.85
(exc. VAT)
R 1,755.88
(inc. VAT)
- RS stock no.:
- 235-981
- Distrelec Article No.:
- 304-22-212
- Mfr. Part No.:
- XCKM102H29
- Manufacturer:
- Telemecanique Sensors
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Plunger | |
| IP Rating | IP66 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Zamak | |
| Contact Type | Snap Action | |
| Terminal Type | Screw Clamp | |
| Switching Current | 3A | |
| Series | OsiSense XC | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 240V ac | |
| Maximum Operating Temperature | 70°C | |
| Length | 64mm | |
| Depth | 30mm | |
| Width | 64mm | |
| Standards/Approvals | RoHS, UL, REACH, IEC, CCC, CSA | |
| Hazardous Area Certification | No | |
| Conduit Entry | M20 | |
| Operating Force | 36N | |
| Mechanical Life | 20000000Cycles | |
| Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Product Type Limit Switch | ||
Actuator Type Roller Plunger | ||
IP Rating IP66 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Zamak | ||
Contact Type Snap Action | ||
Terminal Type Screw Clamp | ||
Switching Current 3A | ||
Series OsiSense XC | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 240V ac | ||
Maximum Operating Temperature 70°C | ||
Length 64mm | ||
Depth 30mm | ||
Width 64mm | ||
Standards/Approvals RoHS, UL, REACH, IEC, CCC, CSA | ||
Hazardous Area Certification No | ||
Conduit Entry M20 | ||
Operating Force 36N | ||
Mechanical Life 20000000Cycles | ||
Exempt
- COO (Country of Origin):
- ID
Telemecanique Sensors Osizense XC Series Limit Switch, IP66, 20000000 Cycles Mechanical Life - XCKM102H29
This limit switch provides a rugged electromechanical means to detect position changes in industrial systems. Designed for use where precise actuation is required, it employs a roller plunger actuator and snap-action contacts to deliver clear switching signals in machinery and control panels. The device is suited to environments requiring ingress protection and a Durable housing material.
Features and Benefits:
• IP66 rating ensures protection against dust and powerful water jets
• Zamak housing offers mechanical robustness and corrosion resistance
• 1NO1NC snap-action contacts deliver distinct switching states
• 250V DC switching at 3A permits moderate DC load control
• 36N operating force gives consistent actuation feedback
• M20 conduit entry enables standard conduit and cable gland fittings
• Zamak housing offers mechanical robustness and corrosion resistance
• 1NO1NC snap-action contacts deliver distinct switching states
• 250V DC switching at 3A permits moderate DC load control
• 36N operating force gives consistent actuation feedback
• M20 conduit entry enables standard conduit and cable gland fittings
Applications
• Suitable for end-of-travel detection on conveyor systems
• Ideal for limit sensing on industrial presses and cutters
• Used for position monitoring of automated Gates and doors
• Can be used for safety interlocks on manufacturing equipment
• Ideal for limit sensing on industrial presses and cutters
• Used for position monitoring of automated Gates and doors
• Can be used for safety interlocks on manufacturing equipment
What contact behaviour can be expected during actuation?
The internal mechanism uses snap-action contacts providing rapid, positive transition between normally open and normally closed states to reduce contact bounce and improve repeatability.
How does the device cope with wide temperature ranges?
It operates reliably between -25°C and 70°C, maintaining switching characteristics across typical plant ambient conditions.
What type of termination is provided for wiring connections?
The unit uses screw-clamp terminals to secure conductors and facilitate straightforward installation and maintenance.
How Durable is the switch under repeated cycling?
Mechanical endurance is rated at 20,000,000 cycles, supporting long service life in high-frequency actuation applications.
What standards and certifications does the switch meet?
It conforms to multiple international standards and approvals including RoHS, UL, REACH, IEC, CCC and CSA.
Approvals
UL, CSA
Standards
VDE0660, IEC947-5-1
