Infineon LED Driver IC, 40 V 120 mA 14-Pin SSOP-14
- RS stock no.:
- 260-5230
- Mfr. Part No.:
- TLD1314ELXUMA1
- Manufacturer:
- Infineon

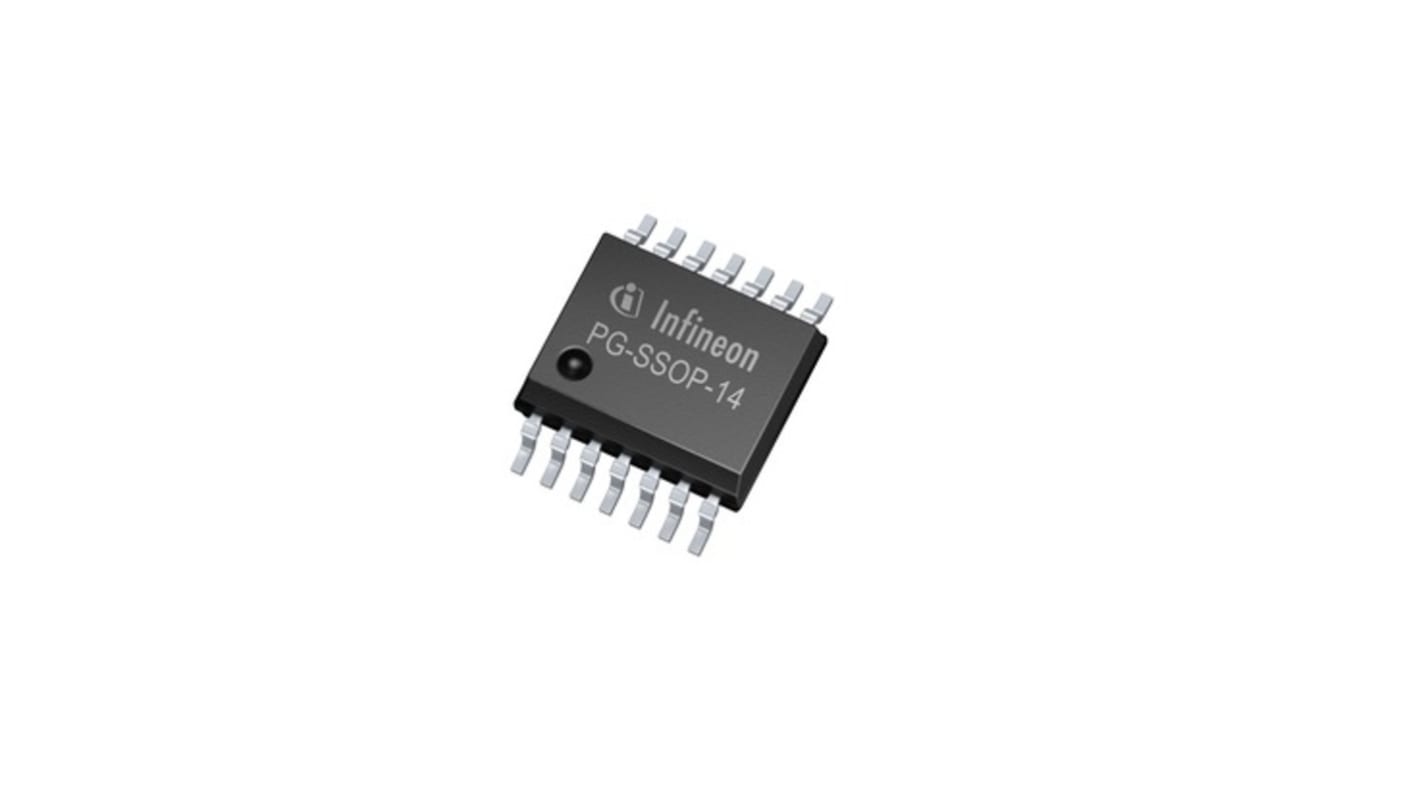

Image representative of range
Bulk discount available
Subtotal (1 reel of 2500 units)*
R 20 730,00
(exc. VAT)
R 23 840,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | R 8.292 | R 20,730.00 |
| 5000 + | R 8.085 | R 20,212.50 |
*price indicative
- RS stock no.:
- 260-5230
- Mfr. Part No.:
- TLD1314ELXUMA1
- Manufacturer:
- Infineon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Output Current | 120mA | |
| Product Type | LED Driver IC | |
| Input Voltage | 40 V | |
| Input Voltage Type | DC | |
| Dimming Operation | PWM | |
| Maximum Output Power | 1.5W | |
| Mount Type | Surface | |
| Package Type | SSOP-14 | |
| Number of Pins | 14 | |
| Maximum Output Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Series | TLD1314E | |
| Height | 1.7mm | |
| Length | 4.9mm | |
| Width | 3.9 mm | |
| Standards/Approvals | RoHS, IPC/JEDEC J-STD-020 | |
| Automotive Standard | AEC-Q100 | |
| Minimum Output Voltage | 5.5V | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Output Current 120mA | ||
Product Type LED Driver IC | ||
Input Voltage 40 V | ||
Input Voltage Type DC | ||
Dimming Operation PWM | ||
Maximum Output Power 1.5W | ||
Mount Type Surface | ||
Package Type SSOP-14 | ||
Number of Pins 14 | ||
Maximum Output Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Series TLD1314E | ||
Height 1.7mm | ||
Length 4.9mm | ||
Width 3.9 mm | ||
Standards/Approvals RoHS, IPC/JEDEC J-STD-020 | ||
Automotive Standard AEC-Q100 | ||
Minimum Output Voltage 5.5V | ||
The Infineon LITIX basic is a three channel high side driver IC with integrated output stages. It is designed to control LEDs with a current up to 120 mA. In typical automotive applications the device is capable to drive that is 3 red LEDs per chain, which is limited by thermal cooling aspects.
3 Channel device with integrated output stages (current sources), optimized to drive LEDs
Low current consumption in sleep mode
Reverse polarity protection
