DiodesZetex LED Driver IC, 4.5/60 V 18 mA 8-Pin MSOP
- RS stock no.:
- 206-0169
- Mfr. Part No.:
- AL5814QMP-13
- Manufacturer:
- DiodesZetex

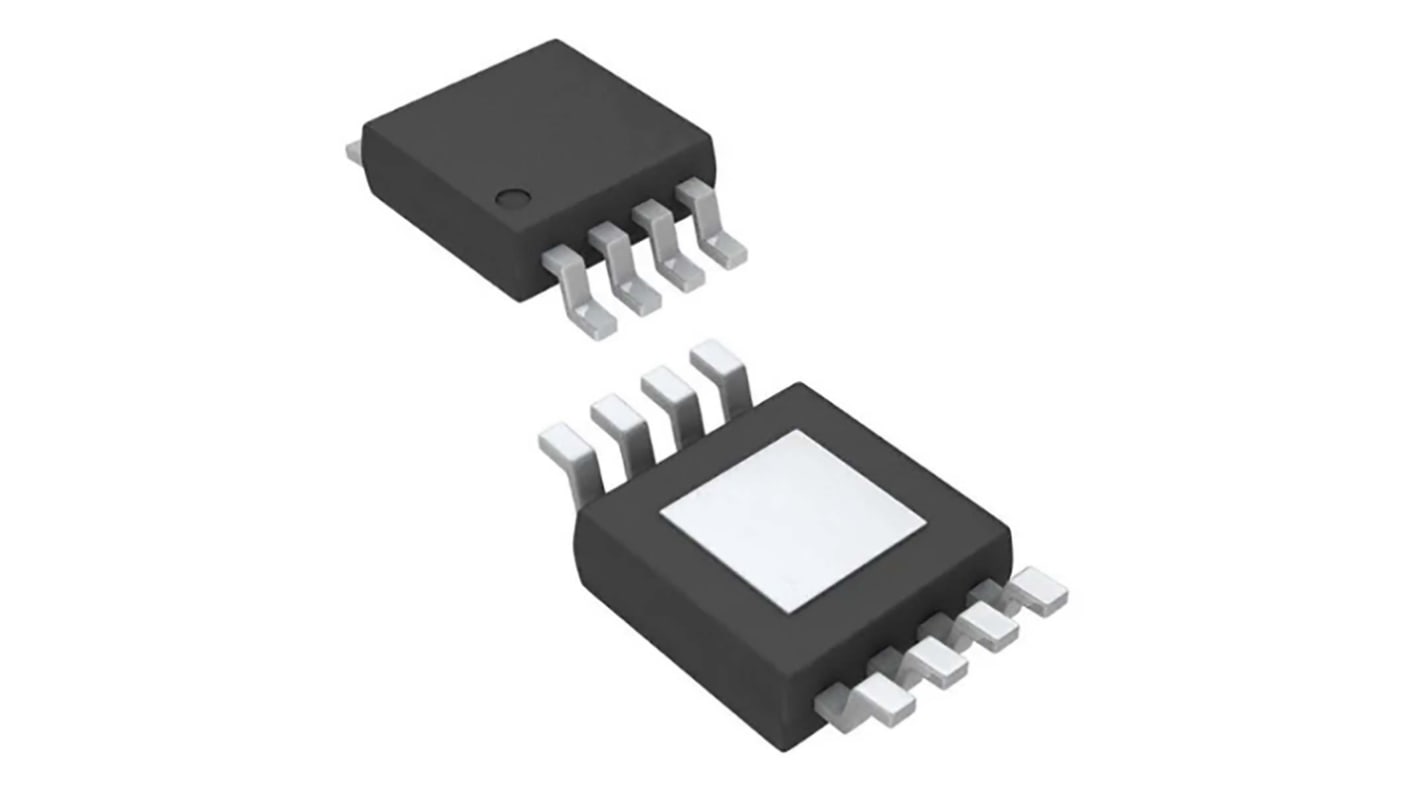

Image representative of range
Subtotal (1 reel of 2500 units)*
R 10 747,50
(exc. VAT)
R 12 360,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 23 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | R 4.299 | R 10,747.50 |
*price indicative
- RS stock no.:
- 206-0169
- Mfr. Part No.:
- AL5814QMP-13
- Manufacturer:
- DiodesZetex
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Output Current | 18mA | |
| Product Type | LED Driver IC | |
| Input Voltage | 4.5/60 V | |
| Input Voltage Type | DC | |
| Dimming Operation | PWM | |
| Maximum Output Power | 1.2W | |
| Mount Type | Through Hole | |
| Package Type | MSOP | |
| Number of Pins | 8 | |
| Maximum Output Voltage | 65V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Length | 3mm | |
| Width | 2.95 mm | |
| Standards/Approvals | No | |
| Height | 1.1mm | |
| Series | AL5814 | |
| Automotive Standard | AEC-Q100 | |
| Minimum Output Voltage | -0.3V | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Output Current 18mA | ||
Product Type LED Driver IC | ||
Input Voltage 4.5/60 V | ||
Input Voltage Type DC | ||
Dimming Operation PWM | ||
Maximum Output Power 1.2W | ||
Mount Type Through Hole | ||
Package Type MSOP | ||
Number of Pins 8 | ||
Maximum Output Voltage 65V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Length 3mm | ||
Width 2.95 mm | ||
Standards/Approvals No | ||
Height 1.1mm | ||
Series AL5814 | ||
Automotive Standard AEC-Q100 | ||
Minimum Output Voltage -0.3V | ||
- COO (Country of Origin):
- CN
The DiodesZetex automotive compliant linear dimmable LED controller is 8-terminal adjustable linear LED controller offering excellent temperature stability and output current capability. Its internal power dissipation is minimized compared with traditional linear LED driver.
5% Reference voltage tolerance across operating temperature
PWM dimming realized through VFAULT pin
