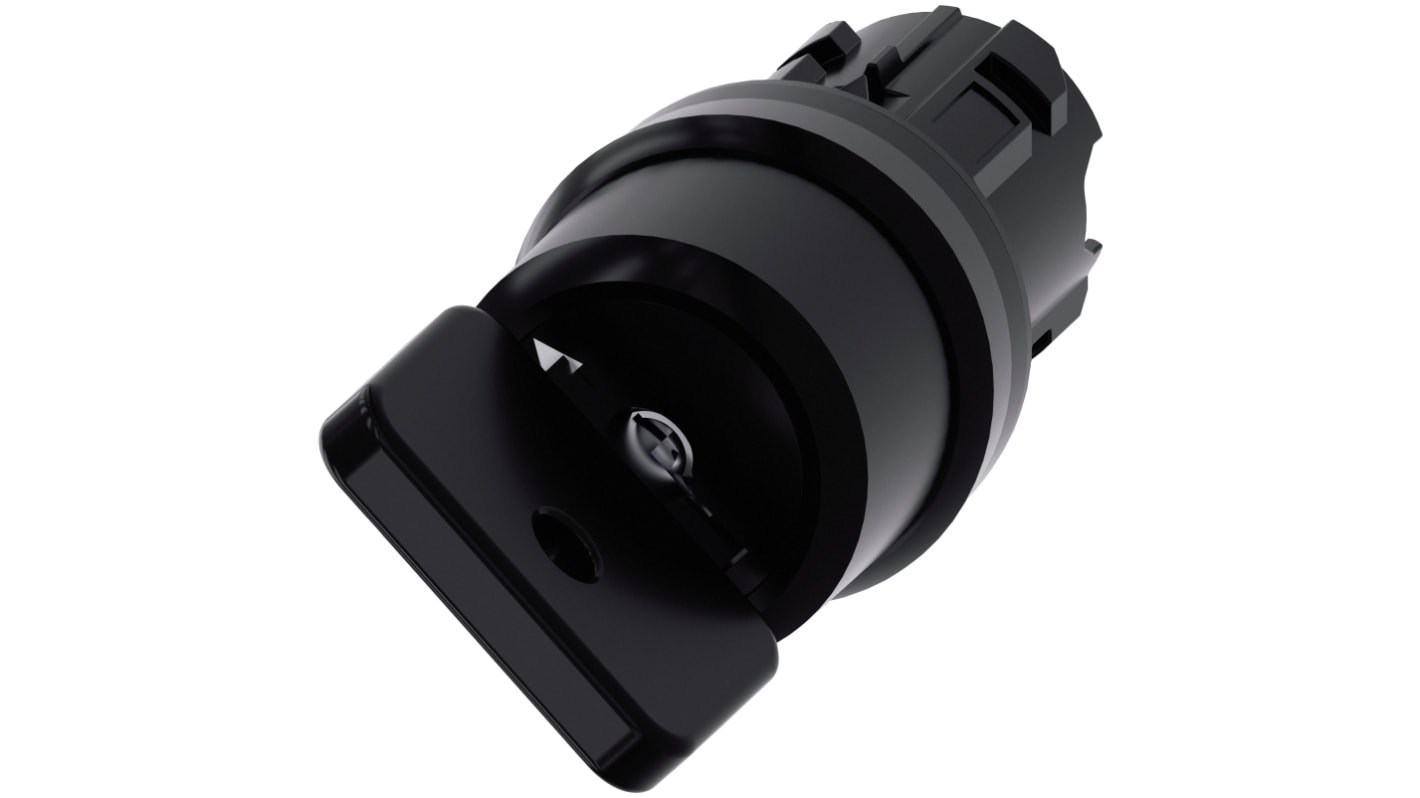

Siemens SIRIUS ACT 3SU10 2-position Key Switch Head, Momentary, 22 mm Cutout

RS stock no.:: 193-3112
Mfr. Part No.:: 3SU1000-4HC01-0AA0
Manufacturer:: Siemens

Siemens SIRIUS ACT 3SU10 2-position Key Switch Head, Momentary, 22 mm Cutout

Subtotal (1 unit)*

R 930,25

(exc. VAT)

R 1 069,79

(inc. VAT)

FREE delivery for orders over R 1,500.00

Stocked by manufacturer

Ready to ship from 17 August 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 930.25

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Learn more about RS Better World products

RS stock no.:: 193-3112
Mfr. Part No.:: 3SU1000-4HC01-0AA0
Manufacturer:: Siemens

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Siemens
	Series	SIRIUS ACT 3SU10
	Product Type	Key Switch Head
	Cutout Diameter	22mm
	Number of Positions	2
	Switch Operation	Momentary
	IP Rating	IP66, IP67, IP69K
	Angle of Throw	45 °
	Number of Keys	2
	Hazardous Area Certification	No
	Standards/Approvals	IEC 60068-2-6, IEC 60721, EN 61373, IEC 60068-2-27
	Mechanical Life	1000000Cycles
	Better World Product	Yes
	Better World Claim	Extended Product Life, Low Carbon Manufacture

	Select all
	Brand Siemens
	Series SIRIUS ACT 3SU10
	Product Type Key Switch Head
	Cutout Diameter 22mm
	Number of Positions 2
	Switch Operation Momentary
	IP Rating IP66, IP67, IP69K
	Angle of Throw 45 °
	Number of Keys 2
	Hazardous Area Certification No
	Standards/Approvals IEC 60068-2-6, IEC 60721, EN 61373, IEC 60068-2-27
	Mechanical Life 1000000Cycles
	Better World Product Yes
	Better World Claim Extended Product Life, Low Carbon Manufacture

COO (Country of Origin):: CZ

Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.

An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.

As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.

The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.

Note: Single device, please order holders and modules separately.

Key-operated switch O.M.R, 22 mm, round, plastic, lock number 73034, black, with 2 keys, 2 switch positions O
