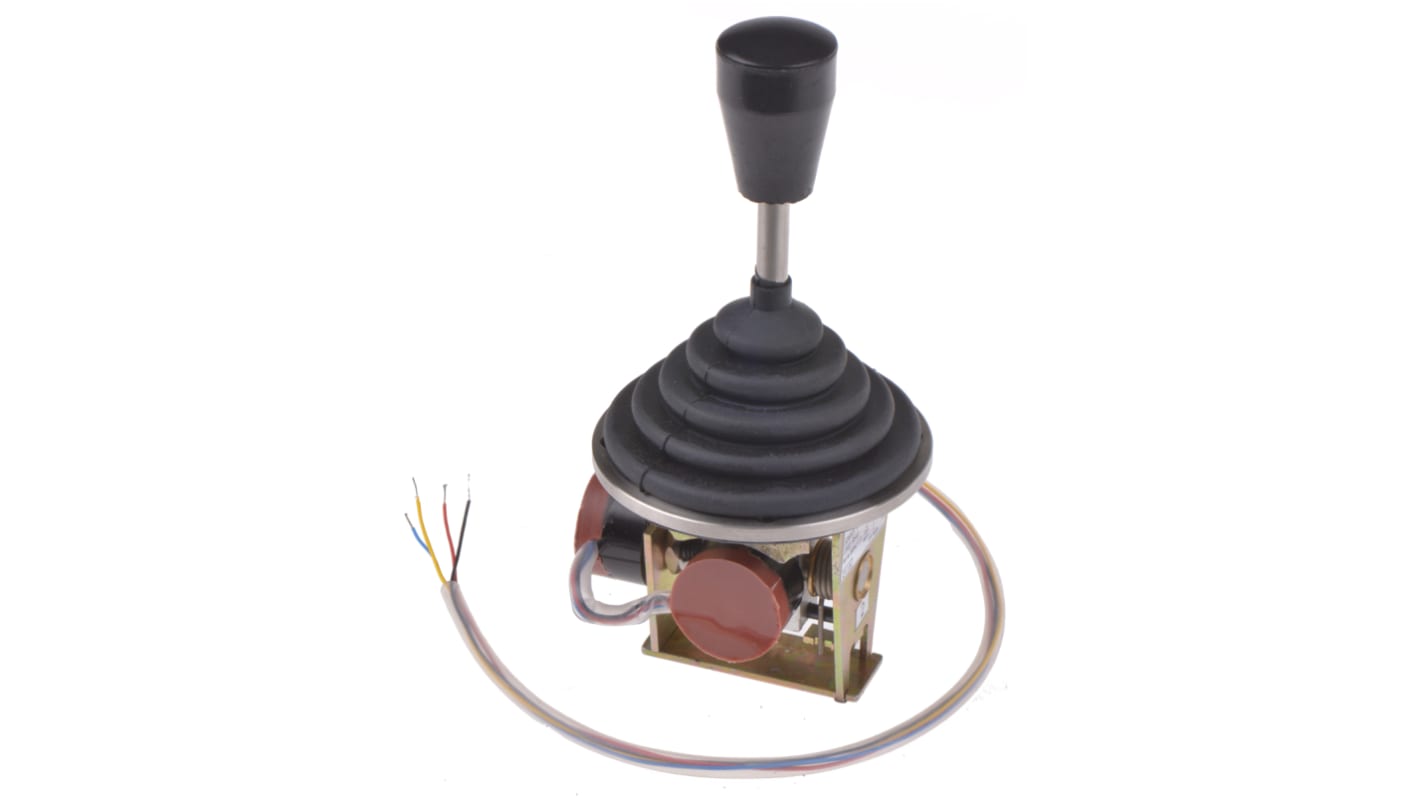

RS PRO 2-Axis Joystick Knob Dual Axis Potentiometric, 240 V ac, 10mA

Image representative of range

View all Joysticks
Bulk discount available

Subtotal (1 unit)*

R 2 276,94

(exc. VAT)

R 2 618,48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship from another location
  • Plus 22 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4R 2,276.94
5 - 9R 2,220.02
10 +R 2,153.42

*price indicative

Packaging Options:
RS stock no.:
842-7172
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Series

J102

Number of Axes

2

Product Type

Joystick

Switch Technology

Dual Axis Potentiometric

Handle Type

Knob

Contact AC Voltage

240V ac

Switch Contact Current

10mA

Joystick Travel

25-0-25 °

Terminal Type

Teflon Wire

Mechanical Life

2000000Operations

Standards/Approvals

RoHS

Maximum Operating Temperature

105°C

Minimum Operating Temperature

-40°C

RS Pro Two Axis Joystick Controllers


RS Pro Joystick Controllers which are constructed from a conductive plastic that is optimised for a long life and an anodised aluminium precision machined body. These two axis joystick controllers offer a noise free output due to the use of a precious metal wiper. With a resistance range of 5 kΩ, these joystick controllers also have an infinite resolution.

Features and Benefits:


1 W power rating at 70°C

Nitrial rubber boot

Stainless steel mounting flange

±20% standard resistance tolerance

842-7175 has a push button, 842-7172 does NOT have a push button
