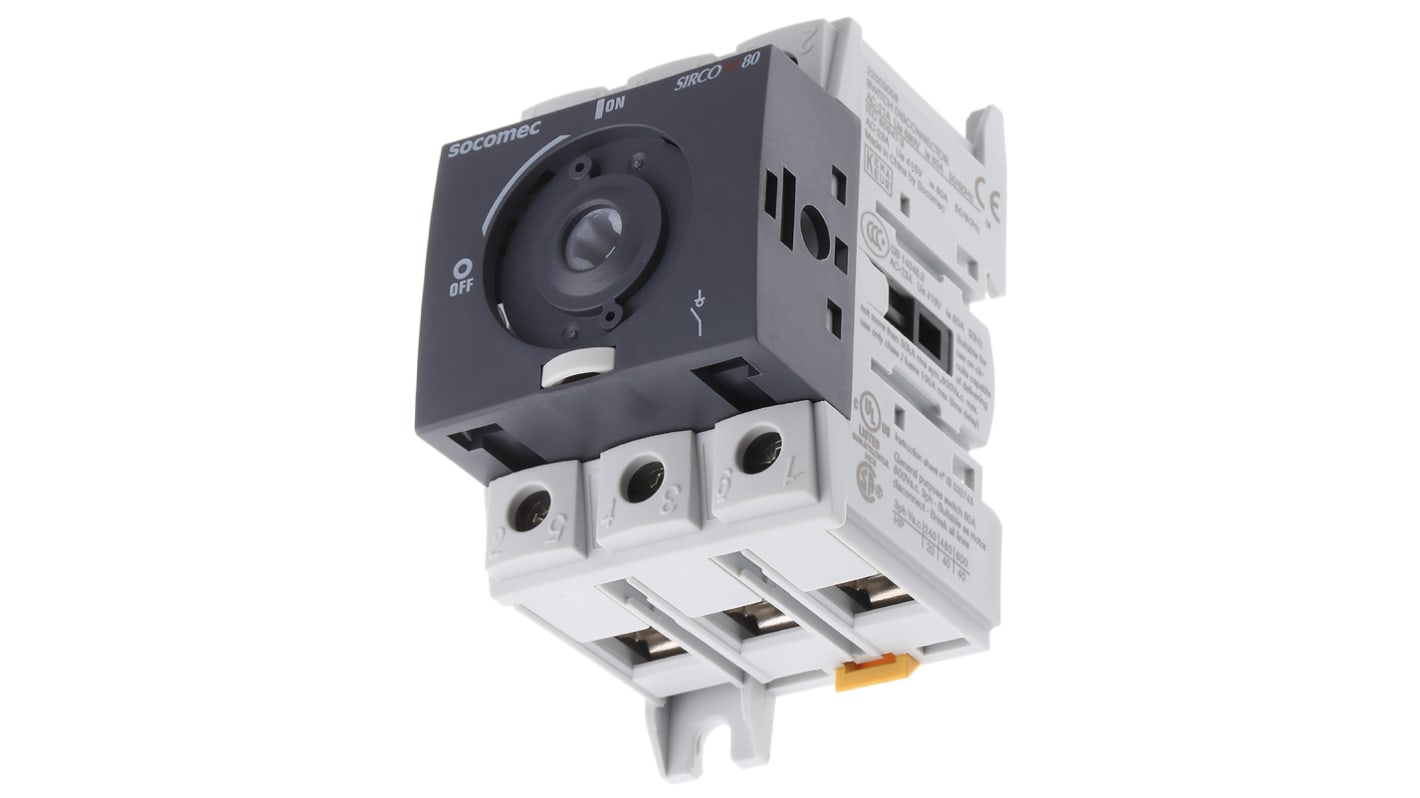

Socomec 3-Pole DIN Rail Isolator Switch -, IP20, 80A, 37 kW
- RS stock no.:
- 781-3689
- Mfr. Part No.:
- 2200 3008
- Manufacturer:
- Socomec
Subtotal (1 unit)*
R 1 266,27
(exc. VAT)
R 1 456,21
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 38 unit(s) ready to ship from another location
- Plus 24 unit(s) shipping from 04 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 1,266.27 |
*price indicative
- RS stock no.:
- 781-3689
- Mfr. Part No.:
- 2200 3008
- Manufacturer:
- Socomec
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Socomec | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | DIN Rail | |
| IP Rating | IP20 | |
| Electrical Phase | 3 | |
| Handle Colour | Blue, Red | |
| Terminal Type | Screw | |
| Auxiliary Contacts Available | Yes | |
| Series | Sirco M | |
| Switching Current | 80A | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 415V ac | |
| Switching Power | 37kW | |
| Padlock Compatibility | No | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EN, IEC, IS | |
| Depth | 408mm | |
| Width | 76mm | |
| Length | 52.5mm | |
| Select all | ||
|---|---|---|
Brand Socomec | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type DIN Rail | ||
IP Rating IP20 | ||
Electrical Phase 3 | ||
Handle Colour Blue, Red | ||
Terminal Type Screw | ||
Auxiliary Contacts Available Yes | ||
Series Sirco M | ||
Switching Current 80A | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 415V ac | ||
Switching Power 37kW | ||
Padlock Compatibility No | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Standards/Approvals EN, IEC, IS | ||
Depth 408mm | ||
Width 76mm | ||
Length 52.5mm | ||
- COO (Country of Origin):
- CN
Non-Fusible Disconnect Switches SIRCO M
SIRCO M is a range of multipolar, modular and manually operated switch-disconnectors (or load break switches).
Available in 3 or 4 poles and from 16 to 125A, they make and break under load conditions and provide safety isolation for any low voltage circuit, particularly for machine control circuits.
Through the use of accessories, SIRCO M can be transformed into multipolar load break or 3/4 pole changeover switches. SIRCO M changeover switches provide on load changeover switching between two sources or two low voltage power circuits, as well as their safety isolation.
- Comply with international standards IEC 60947-3, UL508 and UL98.
- Double break per pole.
- Mounting options: DIN rail, panel or modular panel with 45 mm front cut out.
- IP20 devices and accessories.
- Severe utilisation categories (AC-22 and AC-23).
- Positive break indication.
- Contact point technology.
- Product can be mounted directly on the door or panel side, with a specific "Door mounting kit" accessory.
