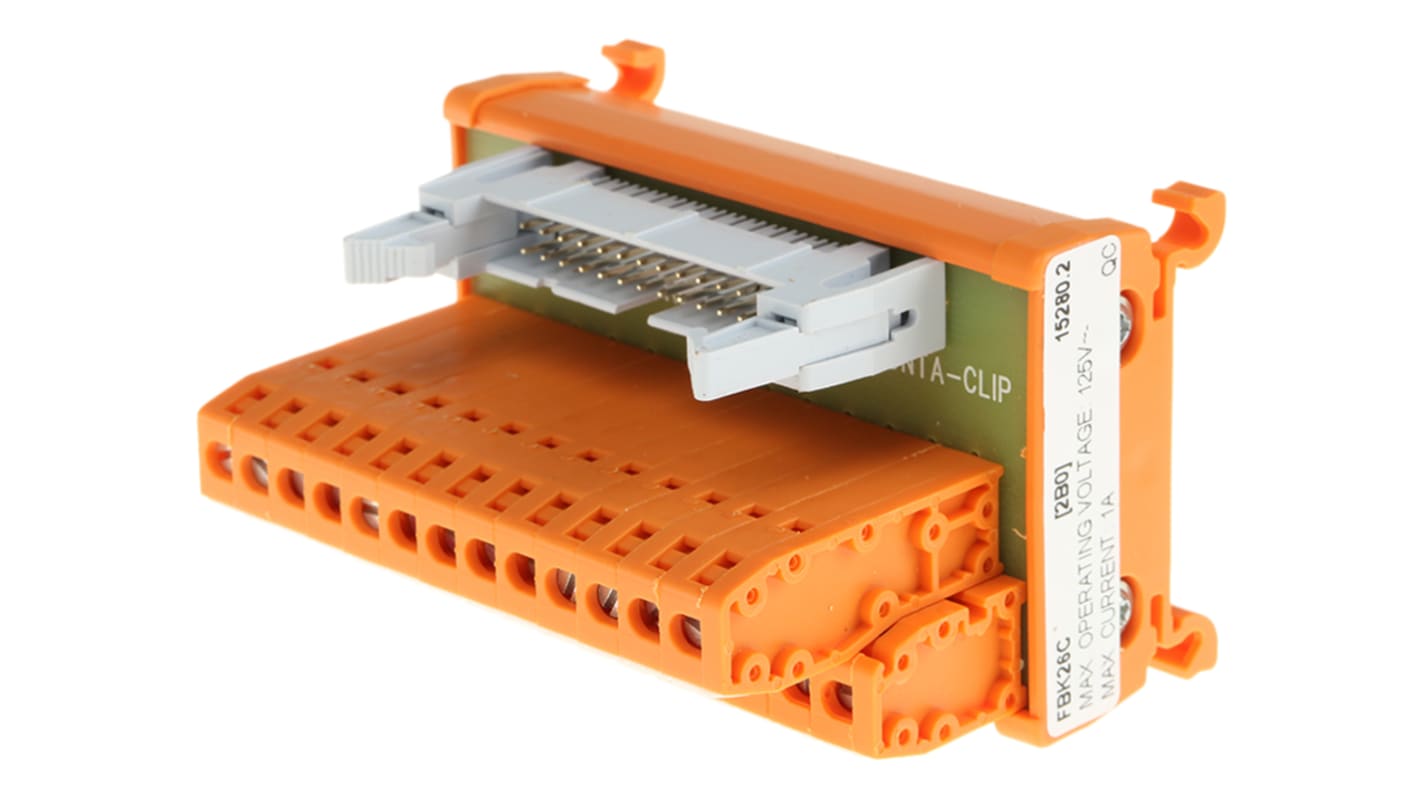

RS PRO 26-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail Mount, 1A
- RS stock no.:
- 665-9667
- Manufacturer:
- RS PRO
13 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 1 233,02
(exc. VAT)
R 1 417,97
(inc. VAT)
| Units | Per unit |
| 1 - 9 | R 1 233,02 |
| 10 - 49 | R 1 202,19 |
| 50 + | R 1 166,12 |
- RS stock no.:
- 665-9667
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
Interface Modules
Screw-clamp connection
Male plug - flat ribbon cable connection EN 60 603-13/DIN 41651
DIN EN 50178; DIN VDE 0110, pollution degree 2
Ejector mechanism
Compact design, clear terminal labelling and simple assembly
Insulating stripping length 7mm
Alternative to pure individual wire approach
Male plug - flat ribbon cable connection EN 60 603-13/DIN 41651
DIN EN 50178; DIN VDE 0110, pollution degree 2
Ejector mechanism
Compact design, clear terminal labelling and simple assembly
Insulating stripping length 7mm
Alternative to pure individual wire approach
Specification
Attribute | Value |
|---|---|
| Gender | Male |
| Wire Size | 22 → 14 AWG |
| Number of Contacts | 26 |
| Connector Type | Flat Ribbon Cable |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 0.67kV ac |
| Voltage Rating | 125 V ac/dc |
| Current Rating | 1A |
| Cable CSA | 0.2 → 2.5mm² |
| Dimensions | 77 x 61 x 47mm |
| Depth | 47mm |
| Length | 77mm |
| Minimum Operating Temperature | -20°C |
| Width | 61mm |
| Maximum Operating Temperature | +50°C |
