Infineon FF1500R17IP5PBPSA1, Type N-Channel IGBT Module, 1500 A 1700 V, 10-Pin PRIME3, Screw
- RS stock no.:
- 218-4328
- Mfr. Part No.:
- FF1500R17IP5PBPSA1
- Manufacturer:
- Infineon

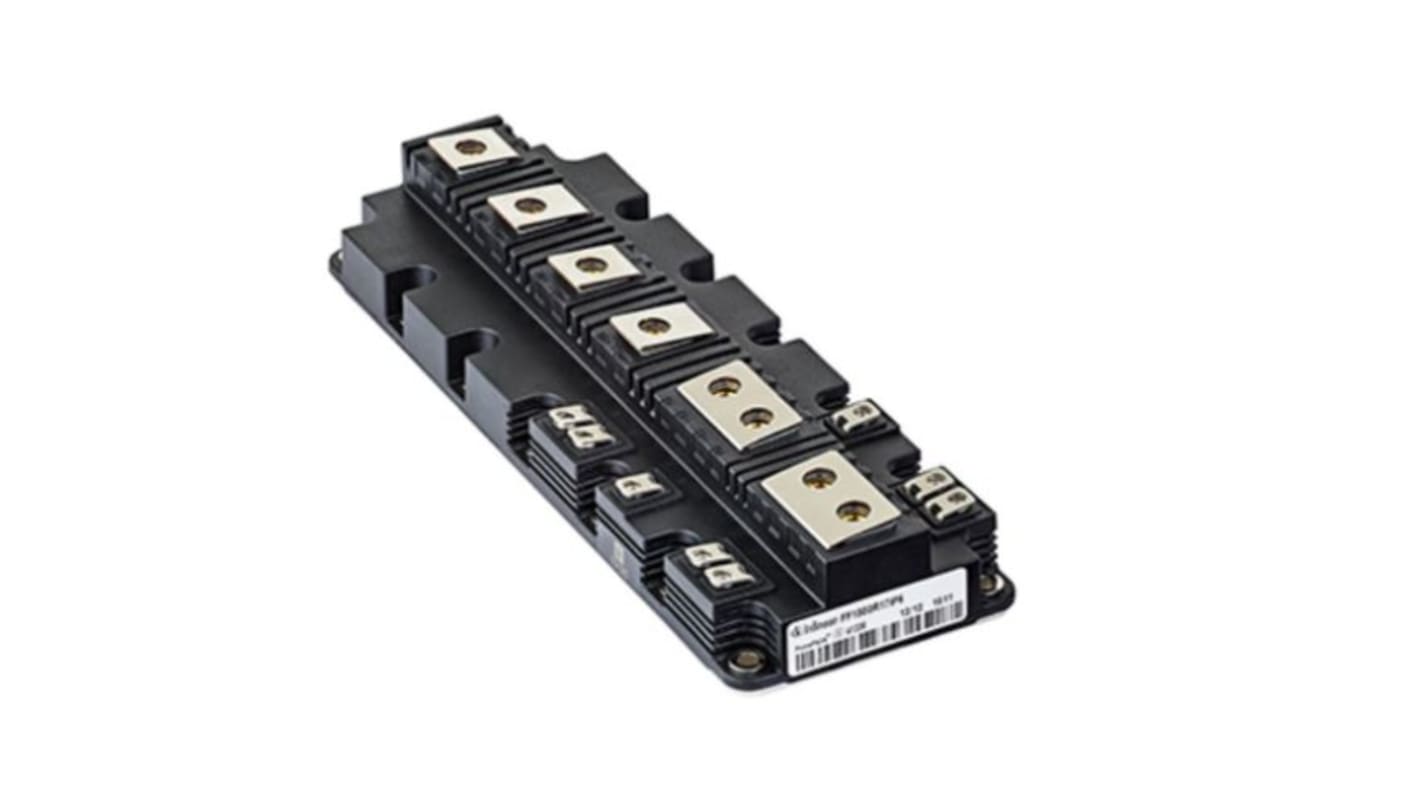

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 17 872,41
(exc. VAT)
R 20 553,27
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | R 17,872.41 |
| 10 - 99 | R 17,425.60 |
| 100 - 249 | R 16,902.83 |
| 250 - 499 | R 16,226.72 |
| 500 + | R 15,577.65 |
*price indicative
- RS stock no.:
- 218-4328
- Mfr. Part No.:
- FF1500R17IP5PBPSA1
- Manufacturer:
- Infineon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 1500A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 1700V | |
| Number of Transistors | 2 | |
| Maximum Power Dissipation Pd | 1500kW | |
| Package Type | PRIME3 | |
| Mount Type | Screw | |
| Channel Type | Type N | |
| Pin Count | 10 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.9V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Operating Temperature | 175°C | |
| Series | FF1500R17IP5P | |
| Length | 247mm | |
| Standards/Approvals | No | |
| Width | 86 mm | |
| Height | 38.25mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 1500A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 1700V | ||
Number of Transistors 2 | ||
Maximum Power Dissipation Pd 1500kW | ||
Package Type PRIME3 | ||
Mount Type Screw | ||
Channel Type Type N | ||
Pin Count 10 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.9V | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Operating Temperature 175°C | ||
Series FF1500R17IP5P | ||
Length 247mm | ||
Standards/Approvals No | ||
Width 86 mm | ||
Height 38.25mm | ||
Automotive Standard No | ||
The Infineon PrimePack dual IGBT module with TRENCHSTOP IGBT5 and .XT interconnection technology. It has collector emitter voltage of 1700 V. The N-Channel TRENCHSTOP and field stop IGBT Modules are suitable for motor control and drives, power converter and inverter for wind turbines, power transmission and distribution, traction and etc.
Low switching losses
High current density
High creepage and clearance distances
High power and thermal cycling capability
