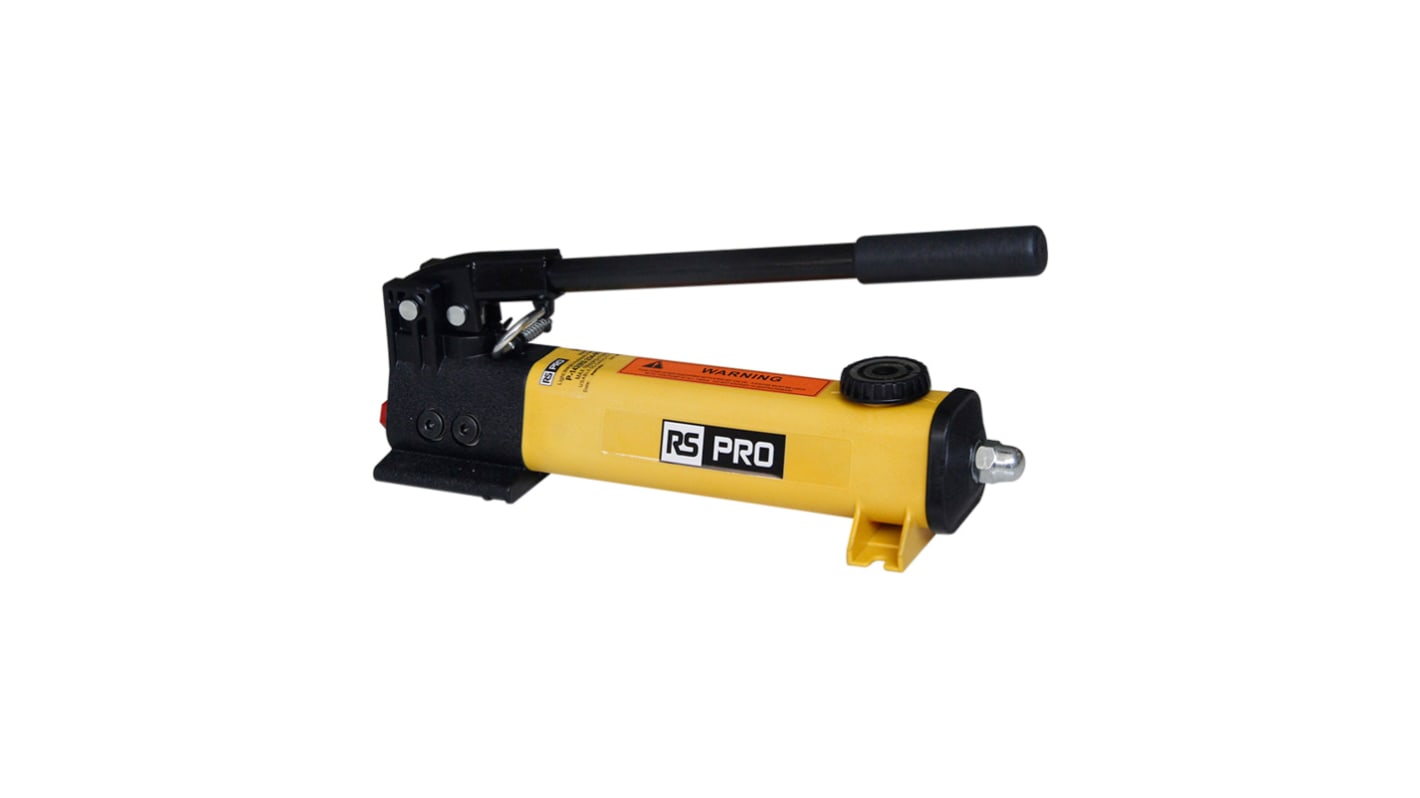

RS PRO Hydraulic Hand Pump, 0.327 L Hand, 12.7 mm Cylinder Stroke, 700 bar
- RS stock no.:
- 234-9578
- Distrelec Article No.:
- 304-19-040
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
R 8 948,78
(exc. VAT)
R 10 291,10
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 3 unit(s) shipping from 10 August 2026
- Plus 19 unit(s) shipping from 16 October 2026
- Plus 14 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 8,948.78 |
*price indicative
- RS stock no.:
- 234-9578
- Distrelec Article No.:
- 304-19-040
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hydraulic Hand Pump | |
| Maximum Operating Pressure | 700 bar | |
| Pump Type | Hand | |
| Usable Oil Capacity | 0.327L | |
| Cylinder Stroke | 12.7mm | |
| Displacement Per Stroke 1st Stage | 3.62cm³ | |
| Displacement Per Stroke 2nd Stage | 0.9cm³ | |
| Thread Standard | No | |
| Maximum Handle Effort | 32.7kg | |
| Weight | 2.5kg | |
| Length | 310mm | |
| Width | 127mm | |
| Height | 137mm | |
| Standards/Approvals | CE, EN 809:1998+A1:2009, EN ISO 12100:2010, UKCA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hydraulic Hand Pump | ||
Maximum Operating Pressure 700 bar | ||
Pump Type Hand | ||
Usable Oil Capacity 0.327L | ||
Cylinder Stroke 12.7mm | ||
Displacement Per Stroke 1st Stage 3.62cm³ | ||
Displacement Per Stroke 2nd Stage 0.9cm³ | ||
Thread Standard No | ||
Maximum Handle Effort 32.7kg | ||
Weight 2.5kg | ||
Length 310mm | ||
Width 127mm | ||
Height 137mm | ||
Standards/Approvals CE, EN 809:1998+A1:2009, EN ISO 12100:2010, UKCA | ||
Exempt
- COO (Country of Origin):
- CN
RS PRO Two Speed Hydraulic Hand Pump - 327 ml Oil Capacity
RS PRO is proud to introduce an exciting range of Hydraulic Hand Pumps. Each version has been expertly designed and crafted to give you the best user experience for bending, cutting, assembling, and dismantling. Upon inspection, this hand-operated tool includes features such as an internal pressure relief valve to prevent pump overload, a durable glass-filled nylon reservoir, and nylon encapsulated aluminium pump base for maximum corrosion resistance.
Why would you choose this Hydraulic Hand Pump?
This lightweight single-acting hydraulic pump, and has a 327 ml oil capacity, and has a two-speed operation with automatic switching. Our quality hand pumps are commonly used with hydraulic cylinders, hydraulic pullers, and hydraulic flange spreaders. The compact construction and lower handle make this device a joy to use, minimises operator fatigue during extended use, and can be easily carried and stored.
Features and Benefits
Mechanical Specification
General Specification
RS PRO Hydraulic Hand Pump Variant - Available Separately
RS PRO also offers a two-speed hydraulic hand pump with a larger oil capacity.
Why would you choose RS PRO for hydraulic hand pumps?
RS PRO is our own brand that offers high-quality manual hydraulic hand pumps to suit your applications. Our great value products give you more choice and are easily found via our improved Apply Filters option. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
Applications
