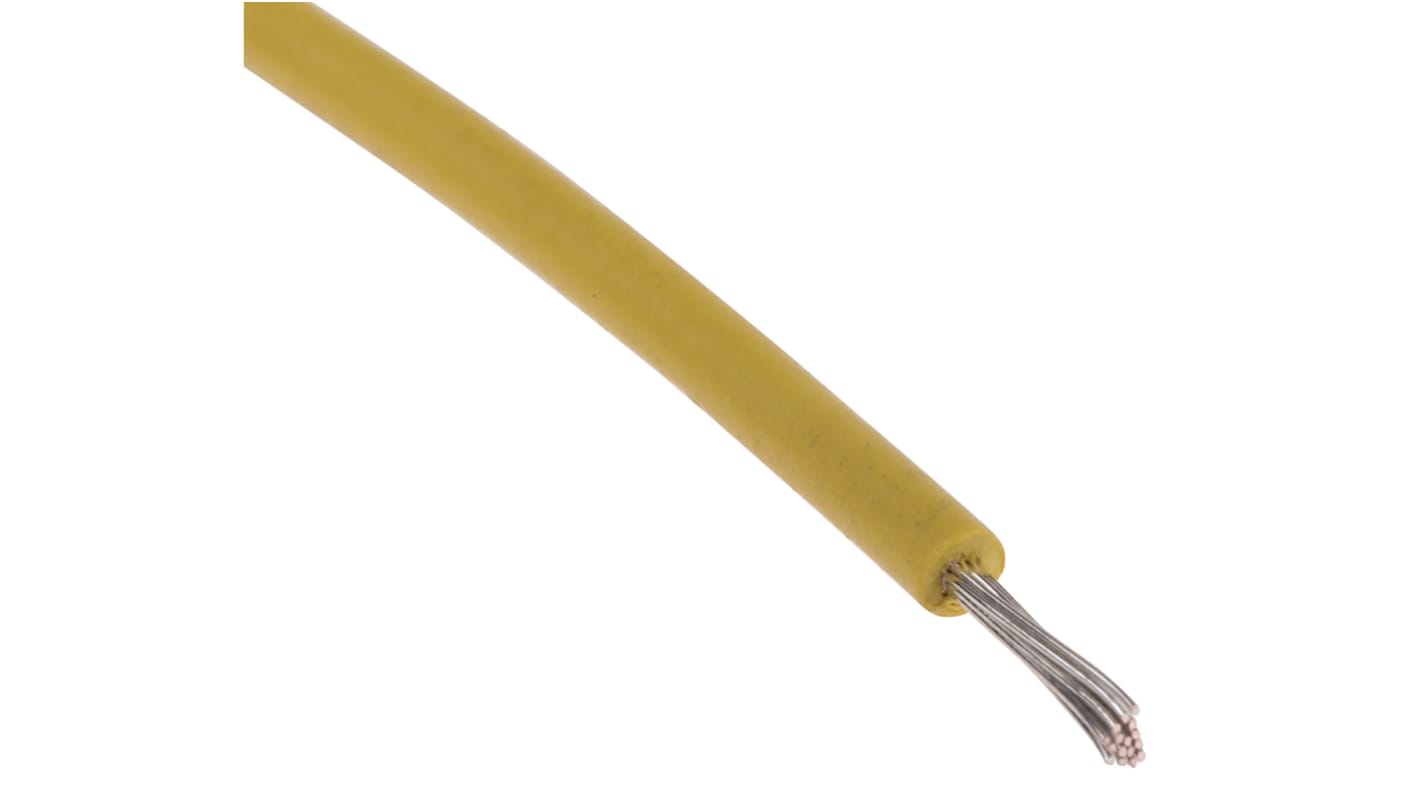

RS PRO UL3239 Series Yellow 0.33 mm² Hook Up Wire, 22 AWG, 17, 100 m, Polyethylene
- RS stock no.:
- 873-8999
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
R 826,82
(exc. VAT)
R 950,84
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 40 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 24 | R 826.82 | R 8.268 |
| 25 - 49 | R 806.15 | R 8.062 |
| 50 + | R 781.97 | R 7.82 |
*price indicative
- RS stock no.:
- 873-8999
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.33mm² | |
| Jacket Colour | Yellow | |
| American Wire Gauge | 22AWG | |
| Core Strands | 17 | |
| Cable Length | 100m | |
| Voltage | 6kV dc | |
| Outside Diameter | 1.58mm | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Stranded | |
| Minimum Operating Temperature | 0°C | |
| Sub Type | Automotive Primary Wire | |
| Jacket Material | Polyethylene | |
| Standards/Approvals | UL3239 | |
| Fire Behaviour | Flame Retardant | |
| Series | UL3239 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.33mm² | ||
Jacket Colour Yellow | ||
American Wire Gauge 22AWG | ||
Core Strands 17 | ||
Cable Length 100m | ||
Voltage 6kV dc | ||
Outside Diameter 1.58mm | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Cable Type Stranded | ||
Minimum Operating Temperature 0°C | ||
Sub Type Automotive Primary Wire | ||
Jacket Material Polyethylene | ||
Standards/Approvals UL3239 | ||
Fire Behaviour Flame Retardant | ||
Series UL3239 | ||
- COO (Country of Origin):
- CN
RS UL 3239 Hook-up Wire
The UL3239 Hook up wire is generally used for internal wiring of TV receivers.
• Stranded tinned copper conductor
• XPLE insulation material
• Various colours
• 22,24,26 & 28 AWG
• UL758, UL1581
• Flammability Rating VW-1
Standards
UL758, UL1581, VW-1
