RS PRO H07Z-R Series Green, Yellow 2.5 mm² Hook Up Wire, 14 AWG, 7/0.67 mm, 100 m, Ethylene Propylene Diene Monomer, Low

RS stock no.:: 836-1000
Manufacturer:: RS PRO

RS PRO H07Z-R Series Green, Yellow 2.5 mm² Hook Up Wire, 14 AWG, 7/0.67 mm, 100 m, Ethylene Propylene Diene Monomer, Low

Bulk discount available

Subtotal (1 reel of 100 metres)*

R 2 460,41

(exc. VAT)

R 2 829,47

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

Plus 15 unit(s) shipping from 16 March 2026
Plus 30 unit(s) shipping from 09 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 4	R 2,460.41	R 24.604
5 +	R 2,398.90	R 23.989

*price indicative

RS stock no.:: 836-1000
Manufacturer:: RS PRO

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	2.5 mm²
	Product Type	Hook Up Wire
	Jacket Colour	Green, Yellow
	American Wire Gauge	14AWG
	Core Strands	7/0.67 mm
	Cable Length	100m
	Voltage	750 V
	Outside Diameter	3.3 → 4.1 mm
	Maximum Operating Temperature	70°C
	Conductor Material	Copper
	Standards/Approvals	Euroclass Eca
	Sub Type	6491B
	Jacket Material	Ethylene Propylene Diene Monomer, Low Smoke Zero Halogen
	Minimum Operating Temperature	-5°C
	Fire Behaviour	Flame Retardant
	Series	H07Z-R

	Select all
	Brand RS PRO
	Cross Sectional Area 2.5 mm²
	Product Type Hook Up Wire
	Jacket Colour Green, Yellow
	American Wire Gauge 14AWG
	Core Strands 7/0.67 mm
	Cable Length 100m
	Voltage 750 V
	Outside Diameter 3.3 → 4.1 mm
	Maximum Operating Temperature 70°C
	Conductor Material Copper
	Standards/Approvals Euroclass Eca
	Sub Type 6491B
	Jacket Material Ethylene Propylene Diene Monomer, Low Smoke Zero Halogen
	Minimum Operating Temperature -5°C
	Fire Behaviour Flame Retardant
	Series H07Z-R

COO (Country of Origin):: TR

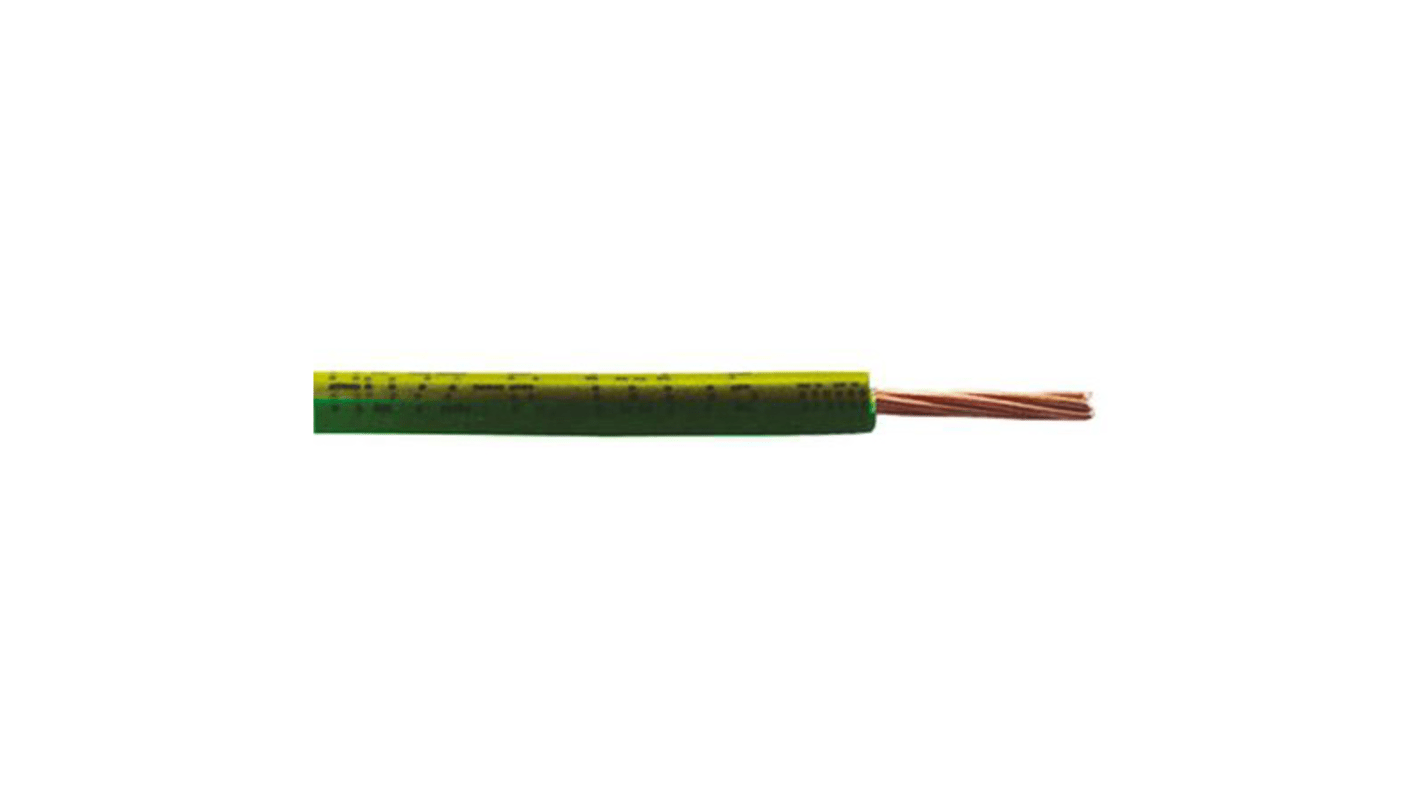

RS PRO 6491B H07Z-R Conduit Cable, Green/Yellow, 2.5 mm² CSA , 750 V

This conduit cable from RS PRO is designed for mains cable runs in building work, including power and lighting circuits. The wire is a multi-strand design, making it more flexible and easier to pass around corners and pull through conduits.

The green and yellow sheath colour shows that the wire is intended for earth connections and the flame-retardant polyvinyl chloride (PVC) insulation provides resistance to abrasion and chemical corrosion for increased durability and safe building practices.

This wire is suitable for earth-bonding pipes and any other equipment that needs grounding. At around 4 mm thick, it's narrow enough to easily fit through conduits. The cable can safely insulate voltages of up to 750 V and it comes in a 100 m reel for easy deployment.

Features and Benefits

• Cross-sectional area of 2.5 mm²

• Flame retardant

• Meets H07Z-R harmonised code for wires suitable for use in public spaces

• Insulation wall thickness of 0.8 mm

• Seven strands

• Outer diameter of 3.3 to 4.1 mm

• Green/yellow sheath colour

• Meets Euroclass Eca basic fire safety standards

• 6491B wire type (single-core, stranded wire for conduits and fixed connections)

• Voltage rating of 750 V
