RS PRO 6491X Series Blue 2.5 mm² Hook Up Wire, 14 AWG, 7, 100 m, Polyvinyl Chloride
- RS stock no.:
- 836-0874
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
R 2 272,22
(exc. VAT)
R 2 613,05
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 40 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | R 2,272.22 | R 22.722 |
| 5 + | R 2,215.41 | R 22.154 |
*price indicative
- RS stock no.:
- 836-0874
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 2.5 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Blue | |
| American Wire Gauge | 14AWG | |
| Core Strands | 7 | |
| Cable Length | 100m | |
| Outside Diameter | 3.3 → 4 mm | |
| Voltage | 750 V | |
| Maximum Operating Temperature | 70°C | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Type | H07V-R | |
| Standards/Approvals | Euroclass Eca | |
| Sub Type | 6491X | |
| Minimum Operating Temperature | -5°C | |
| Fire Behaviour | Flame Retardant | |
| Series | 6491X | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 2.5 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Blue | ||
American Wire Gauge 14AWG | ||
Core Strands 7 | ||
Cable Length 100m | ||
Outside Diameter 3.3 → 4 mm | ||
Voltage 750 V | ||
Maximum Operating Temperature 70°C | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Cable Type H07V-R | ||
Standards/Approvals Euroclass Eca | ||
Sub Type 6491X | ||
Minimum Operating Temperature -5°C | ||
Fire Behaviour Flame Retardant | ||
Series 6491X | ||
- COO (Country of Origin):
- TR

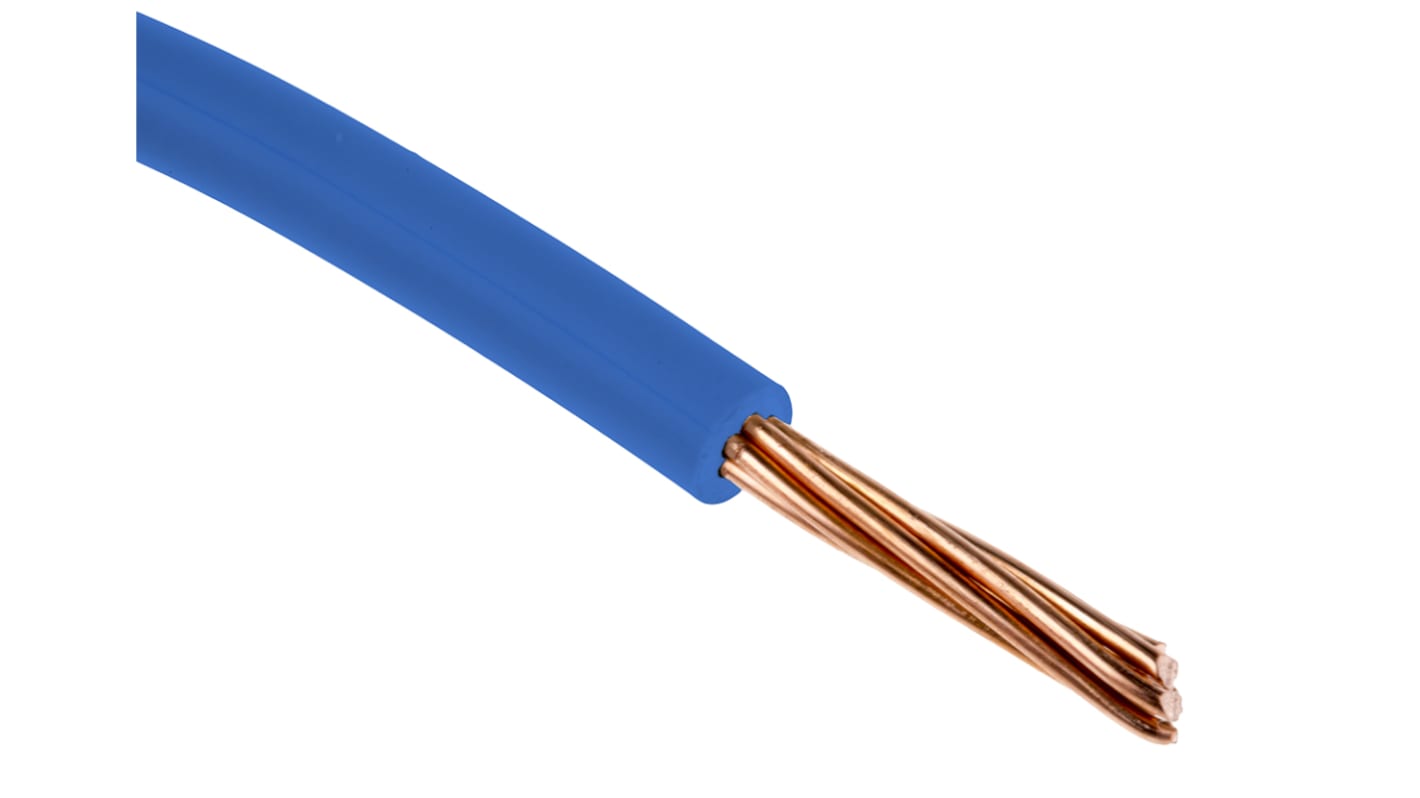

RS PRO 6491X H07V-R Conduit Cable, 2.5 mm² CSA, 750 V, Blue
You can use this 7-strand 2.5 mm² CSA conduit cable from RS PRO with your control gears, light fittings or closed systems. The 6491X H07V-R harmonised cable is suitable for use in a variety of applications, such as building wire, closed installation ducts and lighting and power circuits.
The mechanical strength and speed capability of the 6491X conduit cable make it a good choice if you need to replace internal wiring in your appliances. It's PVC-insulated for added protection and is flame-retardant, so it won't catch fire easily.
This conduit cable's International Electrochemical Commission 60228 approval means it's a safe conductor for use in insulated cables. The product also meets several other international safety standards including the EU's directive on the Restriction of Hazardous Substances (RoHS), meaning it contains minimal amounts of harmful substances.
