RS PRO H07V-R Series Blue 10 mm² Hook Up Wire, 7, 50 m, Polyvinyl Chloride

RS stock no.:: 185-3909
Manufacturer:: RS PRO

RS PRO H07V-R Series Blue 10 mm² Hook Up Wire, 7, 50 m, Polyvinyl Chloride

Subtotal (1 reel of 50 metres)*

R 5 081,98

(exc. VAT)

R 5 844,28

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

3 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	R 5,081.98	R 101.64

*price indicative

RS stock no.:: 185-3909
Manufacturer:: RS PRO

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	Hook Up Wire
	Cross Sectional Area	10 mm²
	Jacket Colour	Blue
	Core Strands	7
	Cable Length	50m
	Outside Diameter	6.7 mm
	Voltage	450 V dc, 750 V ac
	Maximum Operating Temperature	70°C
	Conductor Material	Copper
	Standards/Approvals	BS EN 50525-2-31:2011 Clause 4.1
	Cable Type	Conduit
	Jacket Material	Polyvinyl Chloride
	Minimum Operating Temperature	-15°C
	Sub Type	Single Core
	Series	H07V-R

	Select all
	Brand RS PRO
	Product Type Hook Up Wire
	Cross Sectional Area 10 mm²
	Jacket Colour Blue
	Core Strands 7
	Cable Length 50m
	Outside Diameter 6.7 mm
	Voltage 450 V dc, 750 V ac
	Maximum Operating Temperature 70°C
	Conductor Material Copper
	Standards/Approvals BS EN 50525-2-31:2011 Clause 4.1
	Cable Type Conduit
	Jacket Material Polyvinyl Chloride
	Minimum Operating Temperature -15°C
	Sub Type Single Core
	Series H07V-R

COO (Country of Origin):: GB

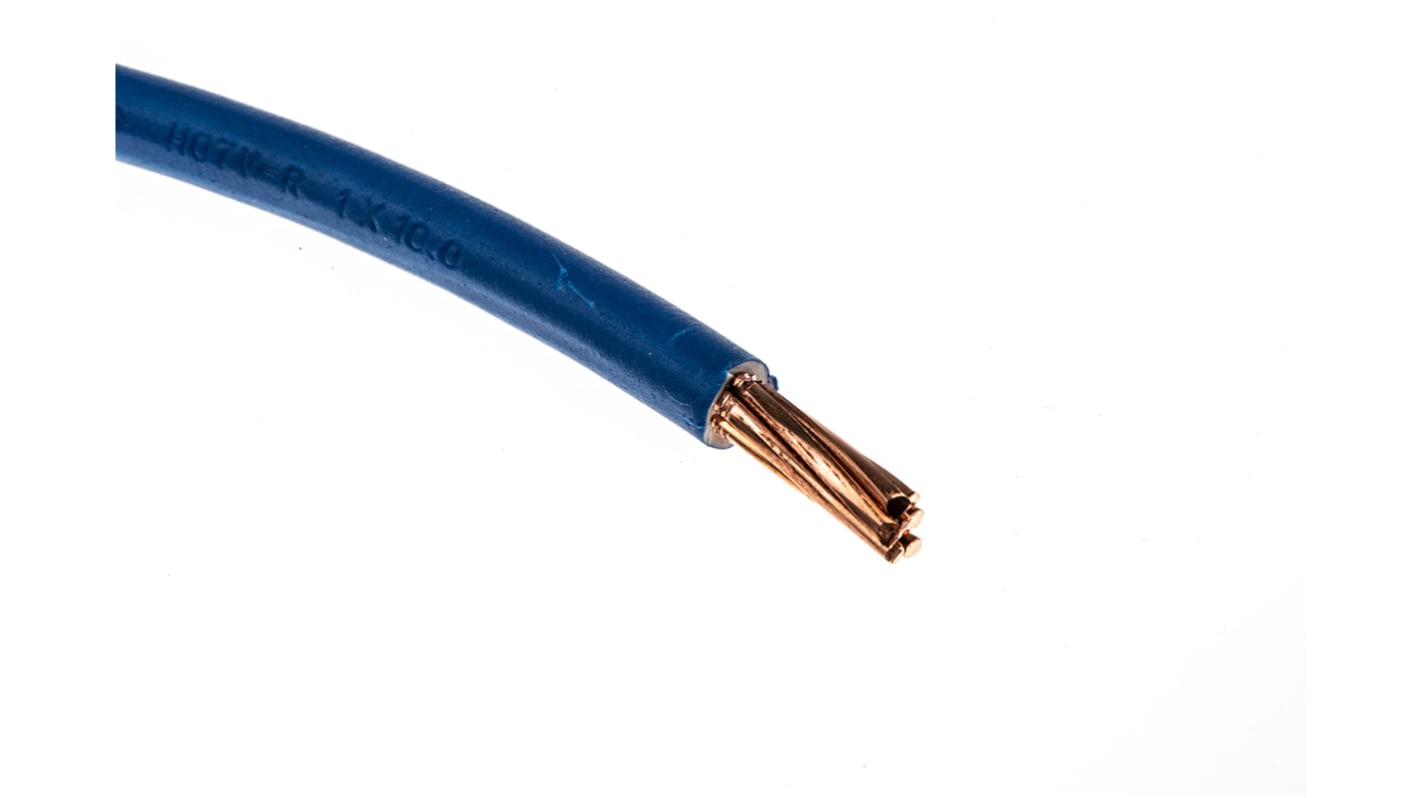

RS PRO Single Core Cable

The RS PRO 50m PVC insulated single-core cable has a plain annealed copper conductor with a nominal cross-sectional area of 10mm². The HO7V-R harmonised blue coloured cable has a voltage rating of 450VDC and 750VAC. The cable is intended for installation in surface mount or embedded conduits, or similar closed systems. This cable is suitable for use in channels with cover.

Features and Benefits

• Operating temperature ranges between -15°C and 70°C

• Insulation wall thickness: 1mm

• Strand size: 1.35mm

• Overall diameter ranges between 5.6mm and 6.7mm

• Number of strands: 7

Applications

• Switchgear

• Controlgear

• Fixed protection installation

Certifications

• BS EN 60228

• BS EN 50363-3

• BS EN 50525-2-31:2011
