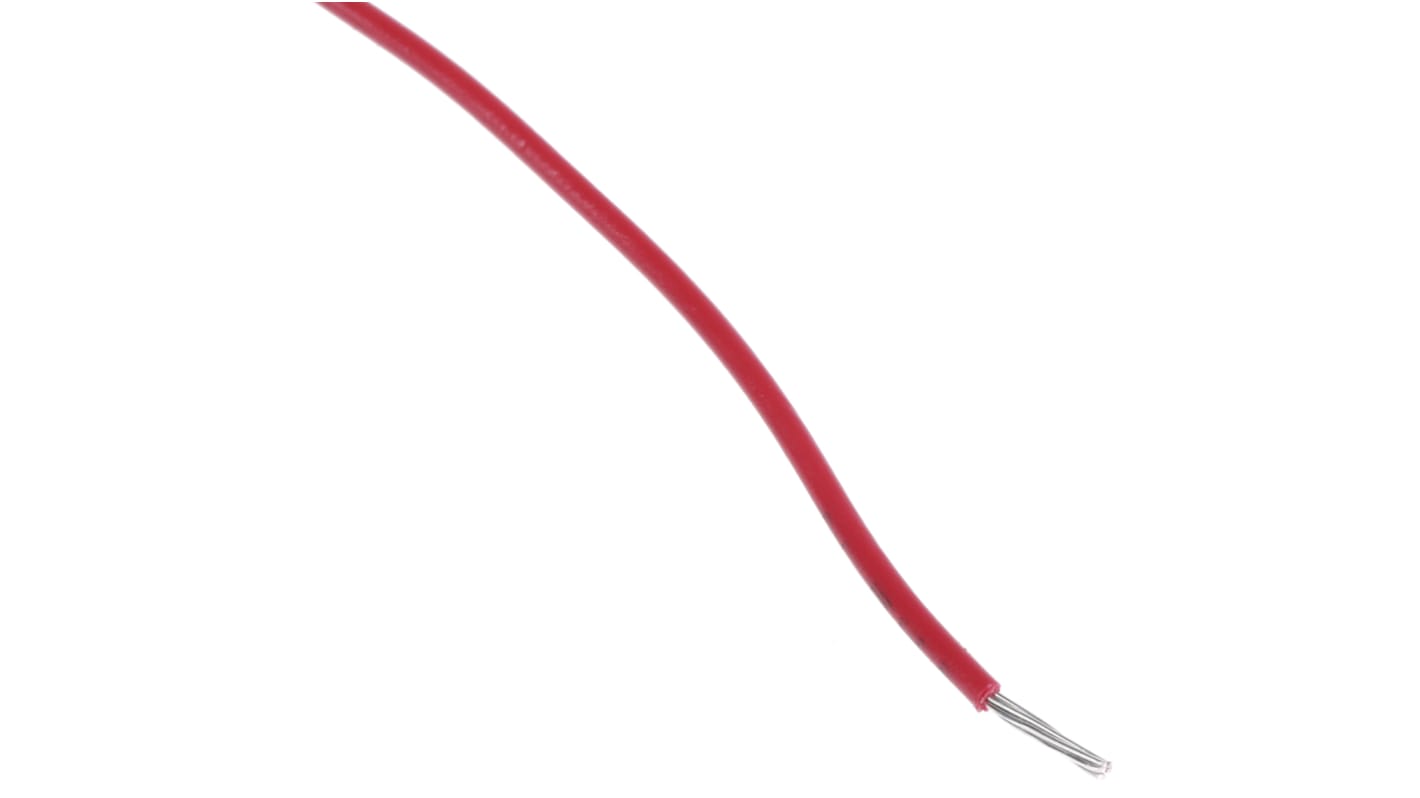

Alpha Wire Hookup Wire PVC Series Red 0.33 mm² Hook Up Wire, 22 AWG, 7, 30 m, Polyvinyl Chloride, 3251 RD005
- RS stock no.:
- 168-0764
- Distrelec Article No.:
- 301-51-346
- Mfr. Part No.:
- 3251 RD005
- Manufacturer:
- Alpha Wire
Bulk discount available
Subtotal (1 reel of 30 metres)*
R 408,15
(exc. VAT)
R 469,37
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 22 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 14 | R 408.15 | R 13.605 |
| 15 - 24 | R 397.95 | R 13.265 |
| 25 + | R 386.01 | R 12.867 |
*price indicative
- RS stock no.:
- 168-0764
- Distrelec Article No.:
- 301-51-346
- Mfr. Part No.:
- 3251 RD005
- Manufacturer:
- Alpha Wire
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.33 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Red | |
| American Wire Gauge | 22AWG | |
| Core Strands | 7 | |
| Cable Length | 30m | |
| Voltage | 300 V | |
| Outside Diameter | 1.27 mm | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Tinned Copper | |
| Sub Type | UL1061 | |
| Standards/Approvals | UL Listed | |
| Cable Type | Hookup | |
| Minimum Operating Temperature | -10°C | |
| Jacket Material | Polyvinyl Chloride | |
| Fire Behaviour | Flammability Test: VW-1 | |
| Series | Hookup Wire PVC | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.33 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Red | ||
American Wire Gauge 22AWG | ||
Core Strands 7 | ||
Cable Length 30m | ||
Voltage 300 V | ||
Outside Diameter 1.27 mm | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Tinned Copper | ||
Sub Type UL1061 | ||
Standards/Approvals UL Listed | ||
Cable Type Hookup | ||
Minimum Operating Temperature -10°C | ||
Jacket Material Polyvinyl Chloride | ||
Fire Behaviour Flammability Test: VW-1 | ||
Series Hookup Wire PVC | ||
Belden Alpha Wire Hook Up Wire, 22AWG, Tinned Copper Conductor - 3251 Series - 3251 RD005
Looking for a slim but reliable cabling solution? Make strong connections in tight spots with this hook up wire from Belden's Alpha Wire range. With a diameter of just ±1.3mm, it's a breeze to install in a conduit and other enclosed spaces. You can depend on it in demanding environments as it withstands temperatures between -10ºC and +80ºC. Red semi-rigid PVC insulation protects against abrasion and makes the wire easy to identify, for hassle-free maintenance and repairs.
Features & Benefits
• Bend radius of ±13mm shows it's flexible enough for installation around corners and in awkward spaces
• Insulation resists chemical damage so is safe to use in contaminated settings
• Comes on a 30m reel, so you have plenty in supply
Applications
• Construction equipment
• High-temperature ovens
• Factory floors
What's the voltage rating of this hook up wire?
This unit has a high rating of 300V, so it's suitable for powerful electrical systems.
