Lapp Arc Series Black Hook Up Wire, 760 x 210 μm, 50 m, 2210701, Rubber
- RS stock no.:
- 406-984
- Distrelec Article No.:
- 303-99-560
- Mfr. Part No.:
- 2210701
- Manufacturer:
- Lapp
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 50 metres)*
R 15 901,62
(exc. VAT)
R 18 286,86
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 5 | R 15,901.62 | R 318.032 |
| 6 + | R 15,504.08 | R 310.082 |
*price indicative
- RS stock no.:
- 406-984
- Distrelec Article No.:
- 303-99-560
- Mfr. Part No.:
- 2210701
- Manufacturer:
- Lapp
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Black | |
| Core Strands | 760 x 210 μm | |
| Cable Length | 50m | |
| Voltage | 100V | |
| Outside Diameter | 8.1mm | |
| Maximum Operating Temperature | 85°C | |
| Conductor Material | Copper | |
| Standards/Approvals | BS EN 50525 | |
| Sub Type | Power and Control Cable | |
| Jacket Material | Rubber | |
| Minimum Operating Temperature | -25°C | |
| Fire Behaviour | Flame Retardant | |
| Hazardous Area Certification | No | |
| Series | Arc | |
| Number of Strands | 760 | |
| Size of Strands | 210μm | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Hook Up Wire | ||
Jacket Colour Black | ||
Core Strands 760 x 210 μm | ||
Cable Length 50m | ||
Voltage 100V | ||
Outside Diameter 8.1mm | ||
Maximum Operating Temperature 85°C | ||
Conductor Material Copper | ||
Standards/Approvals BS EN 50525 | ||
Sub Type Power and Control Cable | ||
Jacket Material Rubber | ||
Minimum Operating Temperature -25°C | ||
Fire Behaviour Flame Retardant | ||
Hazardous Area Certification No | ||
Series Arc | ||
Number of Strands 760 | ||
Size of Strands 210μm | ||
- COO (Country of Origin):
- DE

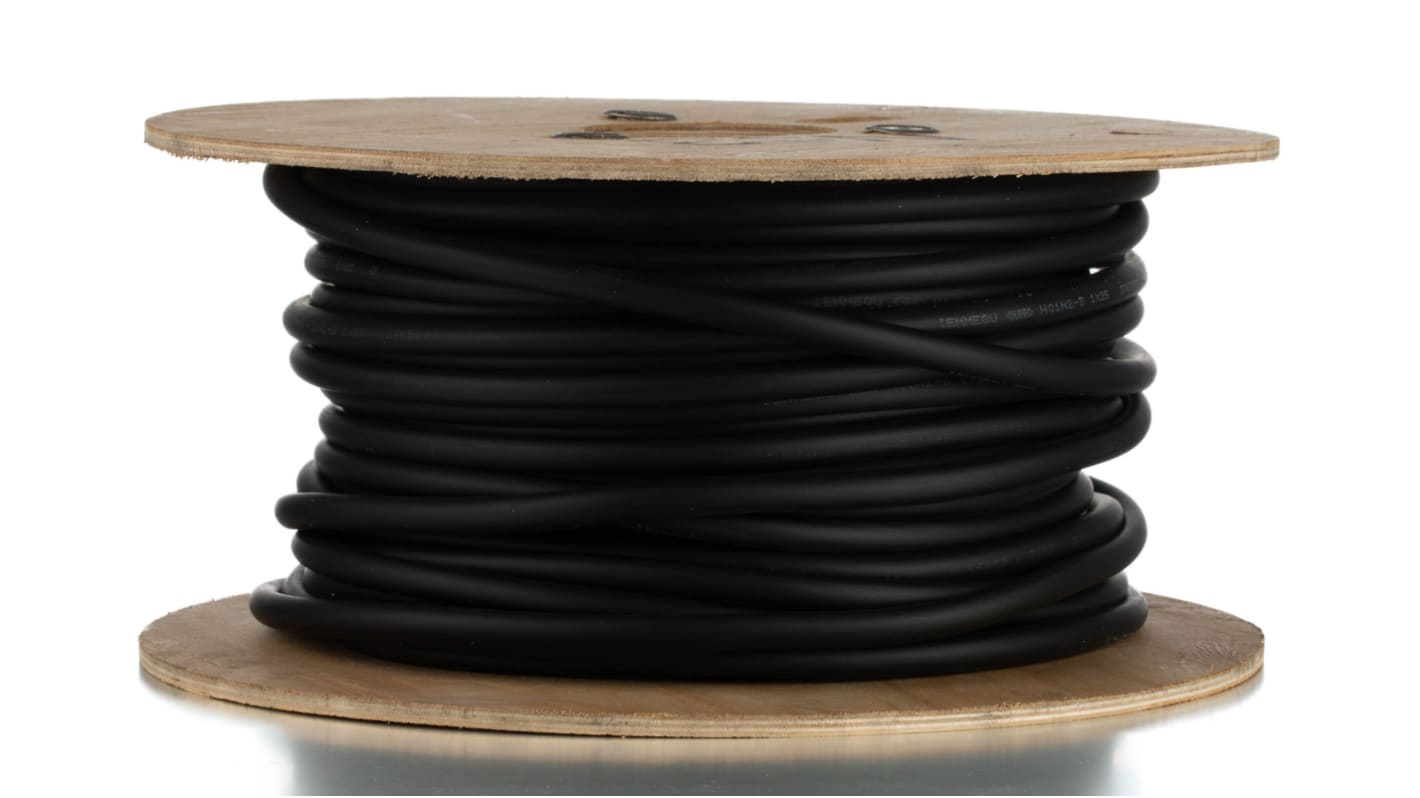

LAPP Hook-up and Equipment Wire, 3AWG, 50m Length - Arc Series - 2210701
Need a flexible cable to connect high-current or spot-welding equipment? Use this single-core equipment wire from LAPP. It has a 173A current rating, so works safely with arc welding machines. It's constructed using 760 stranded copper conductors to ensure maximum reliability. These are protected by a hard-wearing and insulating compound rubber jacket to improve safety and durability without restricting the cable's flexibility. A minimum bending radius that's 12 times the outer diameter allows for easy movement between the welding machine and the connected tool. A wide operating temperature range of -25°C to +85°C makes this cable suitable for use in demanding environments, such as hot manufacturing plants and cold storage units.
Features & Benefits
• Long cable length of 50m for repairing or installing multiple machines and attachments
• Flame-retardant cable material improves workplace safety
Applications
• Shipbuilding
• Automotive manufacturing and repair
• Construction industry
• Metal fabrication workshops
Can I use this hook-up and equipment wire for outdoor applications?
Yes, the polychloroprene sheath material used on this cable is resistant to UV light and ozone, making it suitable for use outdoors.
