RS PRO Brown 0.5 mm² Hook Up Wire, 16, 25 m, Silicone Rubber
- RS stock no.:
- 359-706
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 25 metres)*
R 682,21
(exc. VAT)
R 784,54
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 349 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 14 | R 682.21 | R 27.288 |
| 15 - 24 | R 665.15 | R 26.606 |
| 25 + | R 645.20 | R 25.808 |
*price indicative
- RS stock no.:
- 359-706
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.5 mm² | |
| Jacket Colour | Brown | |
| Core Strands | 16 | |
| Cable Length | 25m | |
| Outside Diameter | 2.6 mm | |
| Maximum Operating Temperature | 180°C | |
| Conductor Material | Tinned Copper | |
| Minimum Operating Temperature | -60°C | |
| Jacket Material | Silicone Rubber | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.5 mm² | ||
Jacket Colour Brown | ||
Core Strands 16 | ||
Cable Length 25m | ||
Outside Diameter 2.6 mm | ||
Maximum Operating Temperature 180°C | ||
Conductor Material Tinned Copper | ||
Minimum Operating Temperature -60°C | ||
Jacket Material Silicone Rubber | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- GB

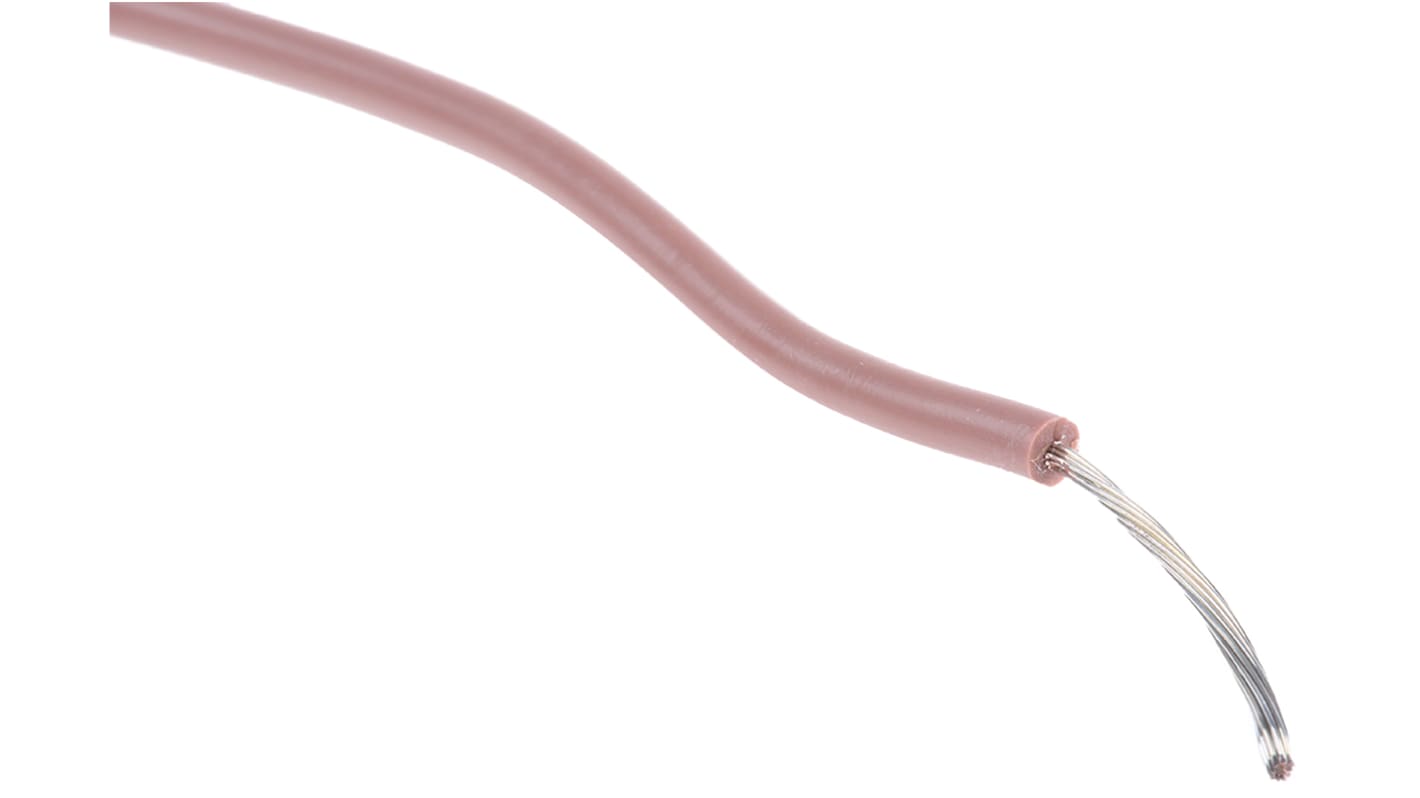

RS PRO Harsh Environment Wire 0.5 mm² CSA, Brown, 25 m Reel
This harsh environment wire from RS PRO is ideal for internal wiring in extreme industrial environments. The silicone rubber insulation material means it can be used at temperatures down to -60°C and up to +180°C and can stand up to oils and solvents as well as the effects of ozone, radiation and weathering.
The tinned copper conductors offer good conductivity to ensure quality transmission of the signal, along with corrosion resistance to give the wire a long service life. Cables of this type are used in medical, electronic and electrical equipment that needs to be used in tough environmental conditions. They're often found in laboratories, where toxic gases could interfere with regular wires.
Features and Benefits
• Cross-sectional area of 20 AWG (American Wire Gauge)
• Cross-sectional area of 0.5 mm² (metric)
• Single-core cable
• Bare copper conductors
• 16 core strands of 0.2 mm
• Silicone rubber insulation with a thickness of 0.8 mm
• Length of 25 m
• Outer diameter of 2.6 mm
• Operating temperature range of -60°C to +180°C
• Resistant to corona discharge, heat, oils, ozone, radiation, solvents and weathering
• Brown sheath colour
• Voltage rating of 750 V (volts)
• BS6195 wire style
