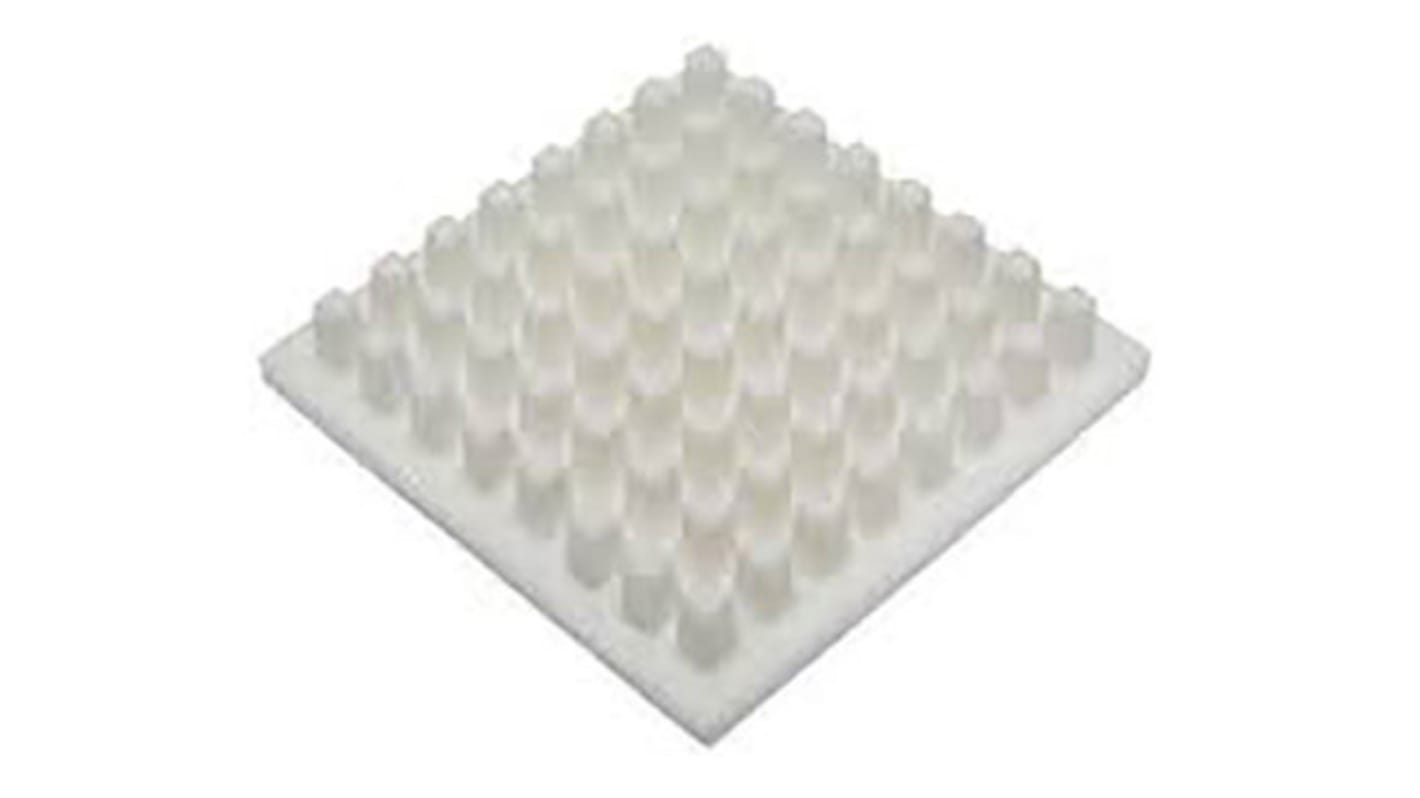

SPREADFAST Heatsink, Universal Square Ceramic, 18.5°C/W, 37.8 °C/W 6 mm 20 mm 20 mm
- RS stock no.:
- 123-5617
- Mfr. Part No.:
- SF-CHS-202006P
- Manufacturer:
- SPREADFAST
Bulk discount available
Subtotal (1 pack of 5 units)*
R 129,70
(exc. VAT)
R 149,15
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 515 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | R 25.94 | R 129.70 |
| 50 - 120 | R 25.292 | R 126.46 |
| 125 - 245 | R 24.534 | R 122.67 |
| 250 - 495 | R 23.552 | R 117.76 |
| 500 + | R 22.61 | R 113.05 |
*price indicative
- RS stock no.:
- 123-5617
- Mfr. Part No.:
- SF-CHS-202006P
- Manufacturer:
- SPREADFAST
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SPREADFAST | |
| Product Type | Heatsink | |
| For Use With | Universal Square Ceramic | |
| Length | 20mm | |
| Width | 20 mm | |
| Height | 6mm | |
| Fastening | Adhesive, Screw | |
| Thermal Resistance | 18.5, 37.8°C/W | |
| Colour | White | |
| Series | Pin Fin | |
| Standards/Approvals | RoHS | |
| Material | Aluminium Oxide | |
| Special Features | High Volume Resistivity, Ideal for Direct Metalisation, Good Heat Spreader, Good EMC, Good Thermal Cycling Stability, High Breakdown Voltage, Lower density | |
| Select all | ||
|---|---|---|
Brand SPREADFAST | ||
Product Type Heatsink | ||
For Use With Universal Square Ceramic | ||
Length 20mm | ||
Width 20 mm | ||
Height 6mm | ||
Fastening Adhesive, Screw | ||
Thermal Resistance 18.5, 37.8°C/W | ||
Colour White | ||
Series Pin Fin | ||
Standards/Approvals RoHS | ||
Material Aluminium Oxide | ||
Special Features High Volume Resistivity, Ideal for Direct Metalisation, Good Heat Spreader, Good EMC, Good Thermal Cycling Stability, High Breakdown Voltage, Lower density | ||
- COO (Country of Origin):
- CN
Spreadfast SF-CHS Series Square Pin Ceramic Heatsink
Spreadfast SF-CHS series of square pin ceramic heatsinks have been designed as a lower density improvement over traditional metal heatsinks. The innate characteristics of ceramic heatsinks means the SF-CHS series have a high breakdown voltage and heat dissipation. Thanks to the meticulous design of these ceramic heatsinks, the SF-CHS series are ideally suited to applications where thermal cycling stability are required.
Typical Applications
Traditional heatsink replacement.
LED & chipset cooling.
Power modules.
IC cooling.
Ceramic Heatsinks
