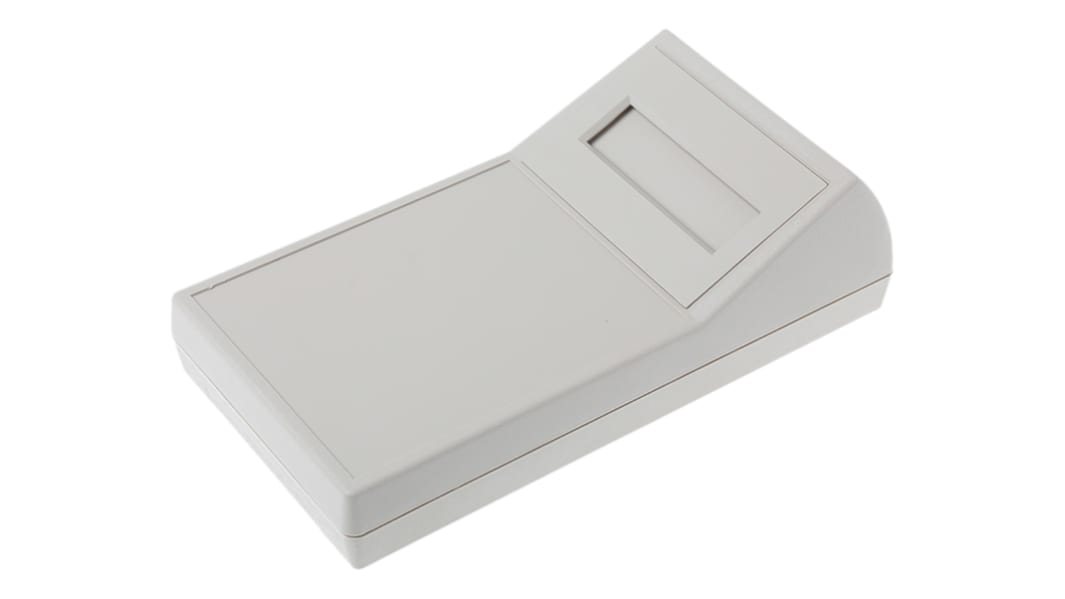

RS PRO Grey ABS Handheld Enclosure Integral Battery Compartment Display Window, IP40, 190.5 mm x 57.2 mm x, 101.6 mm
- RS stock no.:
- 222-834
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
R 707,83
(exc. VAT)
R 814,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- Final 54 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 11 | R 707.83 |
| 12 - 24 | R 690.13 |
| 25 - 49 | R 669.43 |
| 50 + | R 642.65 |
*price indicative
- RS stock no.:
- 222-834
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Body Material | ABS | |
| Product Type | Handheld Enclosure | |
| External Height | 57.2mm | |
| Integral Battery Compartment | Yes | |
| IP Rating | IP40 | |
| Display Window | Yes | |
| Colour | Grey | |
| External Width | 101.6mm | |
| External Length | 190.5mm | |
| Push Buttons | No | |
| Internal Mount Type | Screw | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS Compliant, UL 94 HB, UL E56070 | |
| Keypad Recess | Yes | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Body Material ABS | ||
Product Type Handheld Enclosure | ||
External Height 57.2mm | ||
Integral Battery Compartment Yes | ||
IP Rating IP40 | ||
Display Window Yes | ||
Colour Grey | ||
External Width 101.6mm | ||
External Length 190.5mm | ||
Push Buttons No | ||
Internal Mount Type Screw | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS Compliant, UL 94 HB, UL E56070 | ||
Keypad Recess Yes | ||
Sloped Panel Case
Battery compartment with removable cover (supplied with battery connector)
Supplied with
blank and bezel panels to fit into the sloped area.
