Honeywell Cable Mount Hall Effect Sensor, Digital Output, 4 → 24 V dc, Barrel Body, 30V

View all Hall Effect Sensors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS stock no.:
822-3810
Mfr. Part No.:
ZH10
Manufacturer:
Honeywell
Find similar products by selecting one or more attributes.
Select all

Brand

Honeywell

Output Type

Digital

Body Style

Barrel

Mounting Style

Cable Mount

Supply Voltage

4 → 24 V dc

Terminal Type

Cable

Maximum DC Voltage

30V

Switching Current

30 mA

Switching Frequency

15 kHz

Length

25.4mm

Width

11.9mm

Maximum Operating Temperature

+100°C

IP Rating

IP67

Dimensions

11.9 x 25.4 mm

Minimum Operating Temperature

-40°C

Short Circuit Overload Protection

Yes

Housing Material

Aluminium

Exempt

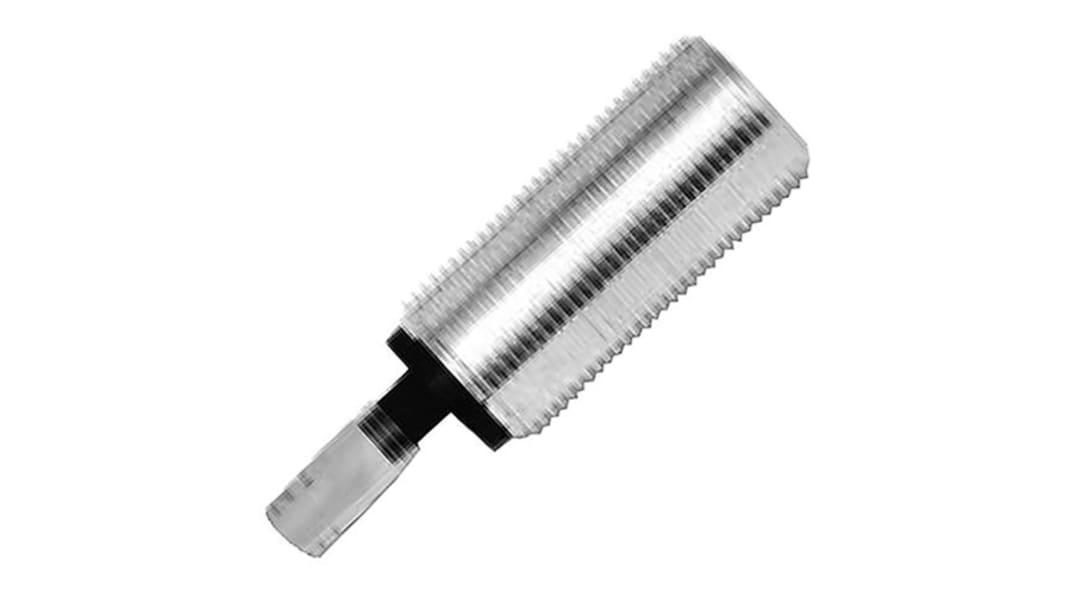

Honeywell ZH10 Hall-Effect Speed Sensor


The ZH10 series hall-effect sensor has been specially designed for harsh environments and provides a durable, cost effective solution. It has been manufactured in an aluminium package, is simple to install and does not require rotational orientation.

Low cost
Omni-directional sensor to target orientation
Digital output
Small size
Low power consumption

Potential Applications:
Industrial process control
Factory automation
Rotary applications, such as pumps, rollers, mixers, fan speed measurement, transmission, spindles, gear reducer RPM, process speed, synchronization, generator set, compressor speed and dyno testing
