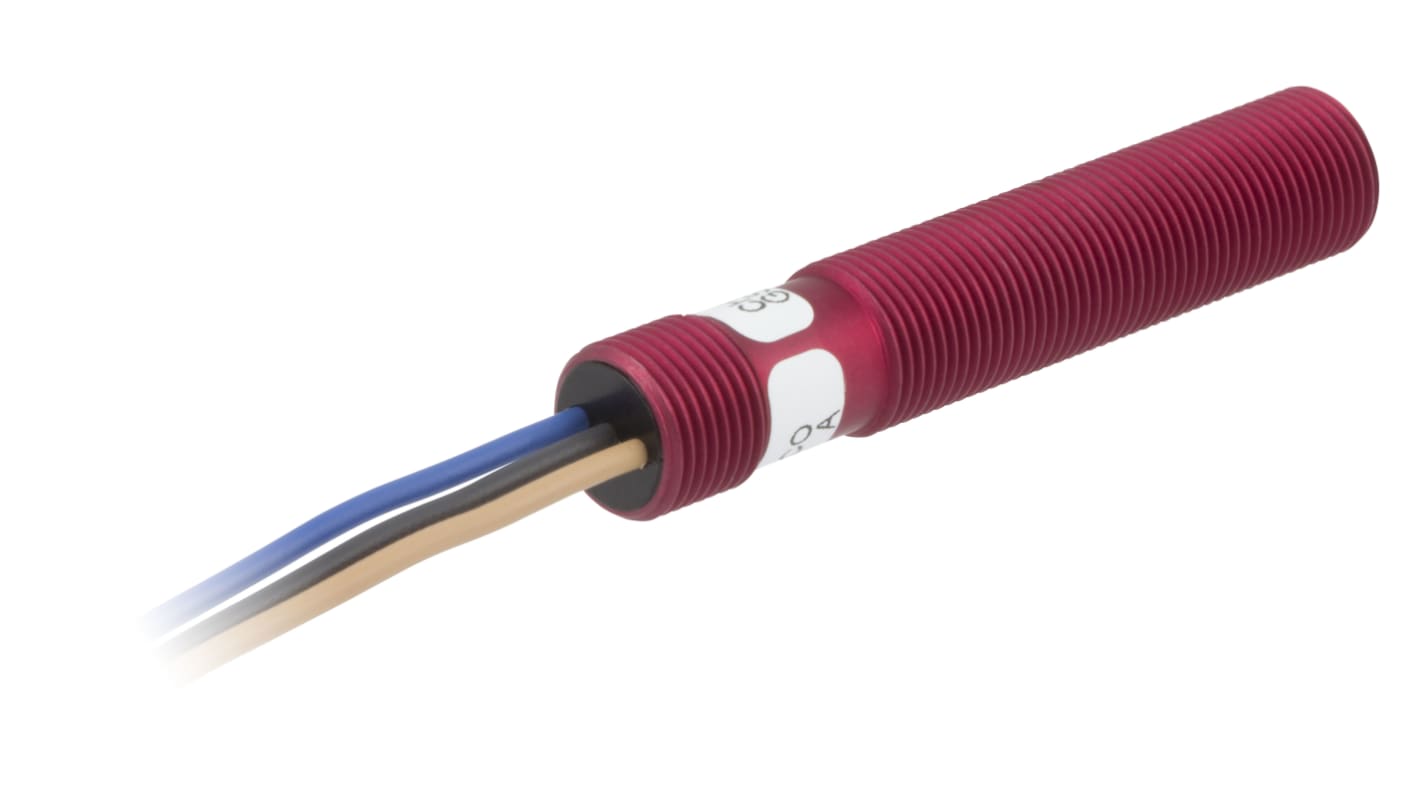

ZF Hall Effect Sensor Panel, NPN Output, Barrel Body, 30 V dc 24V dc
- RS stock no.:
- 765-9328
- Distrelec Article No.:
- 304-08-647
- Mfr. Part No.:
- GS100502
- Manufacturer:
- ZF
Subtotal (1 unit)*
R 777,98
(exc. VAT)
R 894,68
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- 20 left, ready to ship
- Plus 15 left, ready to ship from another location
- Final 12 unit(s) shipping from 26 November 2026
Units | Per unit |
|---|---|
| 1 + | R 777.98 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
R 677.32
(exc. VAT)
R 778.92
(inc. VAT)
- RS stock no.:
- 765-9328
- Distrelec Article No.:
- 304-08-647
- Mfr. Part No.:
- GS100502
- Manufacturer:
- ZF
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Output Type | NPN | |
| Product Type | Hall Effect Sensor | |
| Body Style | Barrel | |
| Terminal Type | Wire | |
| Mount Type | Panel | |
| Maximum DC Voltage | 30V dc | |
| Switching Current | 20mA | |
| Maximum Supply Voltage | 24V dc | |
| Switching Frequency | 15kHz | |
| Minimum Operating Temperature | -40°C | |
| Length | 65mm | |
| Series | GS1005 - GS1007 | |
| Standards/Approvals | RoHS | |
| IP Rating | IP68 | |
| Maximum Operating Temperature | 125°C | |
| Reverse Polarity Protection | Yes | |
| Housing Material | Aluminium | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Output Type NPN | ||
Product Type Hall Effect Sensor | ||
Body Style Barrel | ||
Terminal Type Wire | ||
Mount Type Panel | ||
Maximum DC Voltage 30V dc | ||
Switching Current 20mA | ||
Maximum Supply Voltage 24V dc | ||
Switching Frequency 15kHz | ||
Minimum Operating Temperature -40°C | ||
Length 65mm | ||
Series GS1005 - GS1007 | ||
Standards/Approvals RoHS | ||
IP Rating IP68 | ||
Maximum Operating Temperature 125°C | ||
Reverse Polarity Protection Yes | ||
Housing Material Aluminium | ||
- COO (Country of Origin):
- MX
GS1005 - GS1007 Series Hall Effect Sensors
GS1005 - GS1007 series of gear tooth speed sensors are hall effect sensors that are designed for use in applications where ferrous edge detection or near zero speed sensing is required.
Aluminium housing
High speed capability
Immune to rotational alignment
Compatible with unregulated power supply
Operating temperature -40 → 105 °C
