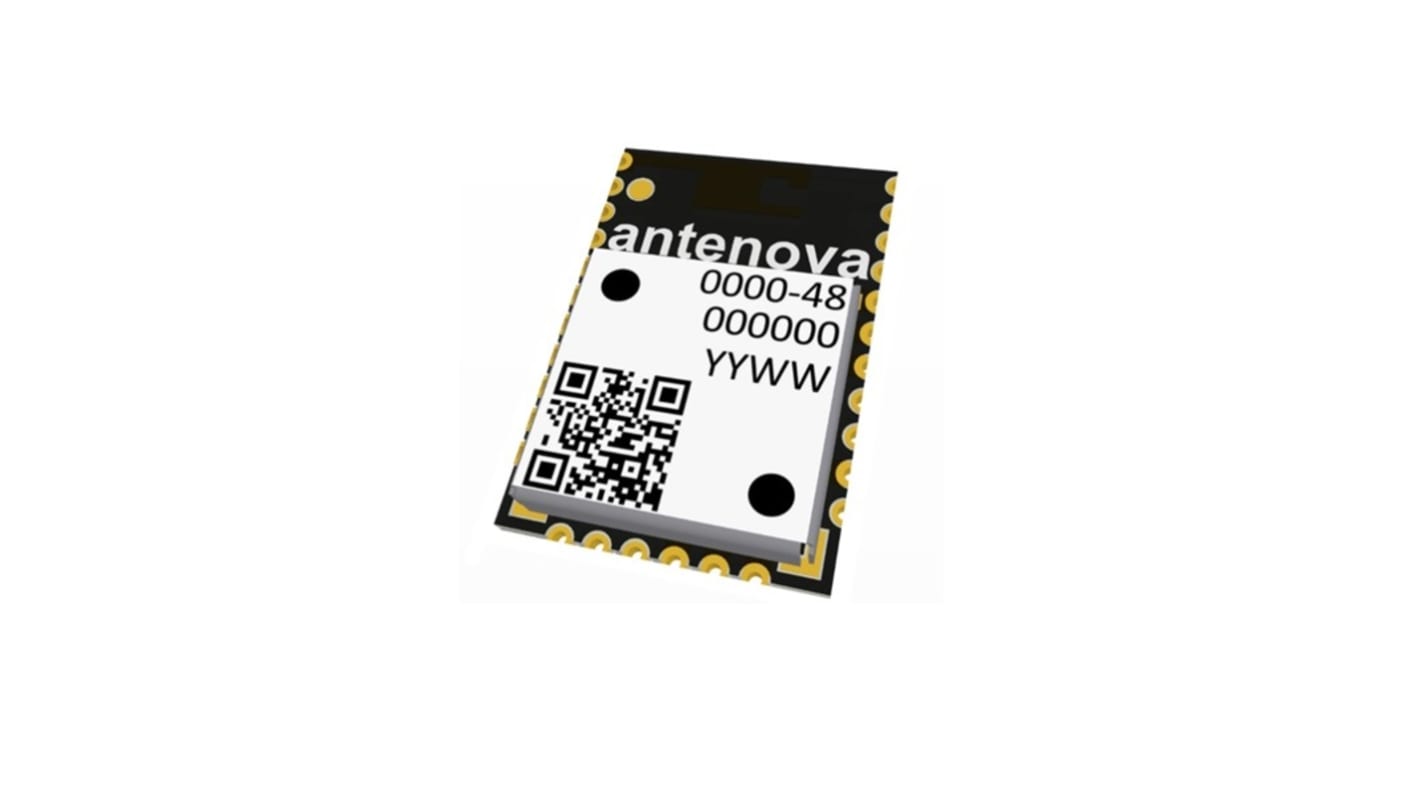

Antenova M20048-1 GPS Module -163 dBm 1575.42 MHz
- RS stock no.:
- 223-1052
- Mfr. Part No.:
- M20048-1
- Manufacturer:
- Antenova
Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 323,96
(exc. VAT)
R 372,55
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 944 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | R 323.96 |
| 10 - 24 | R 315.86 |
| 25 - 99 | R 306.38 |
| 100 - 249 | R 294.12 |
| 250 + | R 282.36 |
*price indicative
- RS stock no.:
- 223-1052
- Mfr. Part No.:
- M20048-1
- Manufacturer:
- Antenova
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Antenova | |
| Product Type | GPS Module | |
| Acquisition Sensitivity | -163dBm | |
| Tracking Sensitivity | -165dBm | |
| Frequency | 1575.42MHz | |
| Height | 1.8mm | |
| Length | 13.8mm | |
| Interface Type | UART | |
| Minimum Supply Voltage | 2.8V | |
| Maximum Supply Voltage | 4.3V | |
| Time to First Fix - Cold Start | 150s | |
| Minimum Operating Temperature | -40°C | |
| Protocol | NMEA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Width | 9.5 mm | |
| Series | M20048-1 | |
| Select all | ||
|---|---|---|
Brand Antenova | ||
Product Type GPS Module | ||
Acquisition Sensitivity -163dBm | ||
Tracking Sensitivity -165dBm | ||
Frequency 1575.42MHz | ||
Height 1.8mm | ||
Length 13.8mm | ||
Interface Type UART | ||
Minimum Supply Voltage 2.8V | ||
Maximum Supply Voltage 4.3V | ||
Time to First Fix - Cold Start 150s | ||
Minimum Operating Temperature -40°C | ||
Protocol NMEA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Width 9.5 mm | ||
Series M20048-1 | ||
- COO (Country of Origin):
- TW
The Antenova Compact GPS antenna-module receiver using the MediaTek MT3337 ROM chip providing a complete GPS receiver and antenna for optimum performance. The M20048-1 operates on a versatile 2.8V-4.2V supply with low power consumption and several low power modes for further power savings. An accurate 0.5ppm TXCO ensures short TTFF. Indoor and outdoor multi-path detection and compensation.
Simple drop in GPS solution with internal antenna
MediaTek MT3337-E ROM chip
Ultra-small SMD package 13.8 x 9.5 x 1.8 mm
Low current consumption
