Wurth Elektronik 2613021137000 GPS Module -148 dBm 1620 MHz
- RS stock no.:
- 206-0014
- Distrelec Article No.:
- 303-76-207
- Mfr. Part No.:
- 2613021137000
- Manufacturer:
- Wurth Elektronik

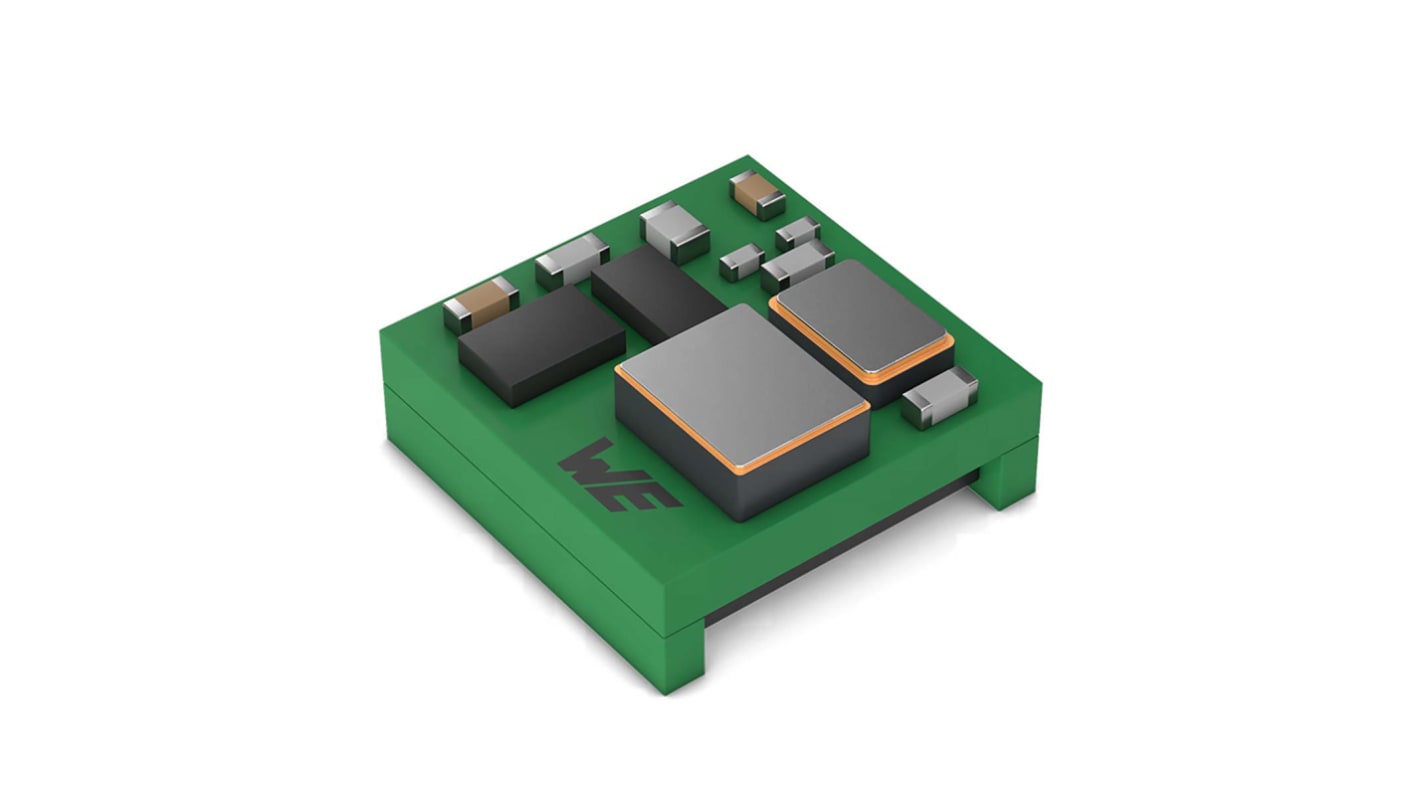

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 525,27
(exc. VAT)
R 604,06
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- Final 36 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 24 | R 525.27 |
| 25 - 49 | R 512.14 |
| 50 - 99 | R 496.78 |
| 100 - 249 | R 476.91 |
| 250 + | R 457.83 |
*price indicative
- RS stock no.:
- 206-0014
- Distrelec Article No.:
- 303-76-207
- Mfr. Part No.:
- 2613021137000
- Manufacturer:
- Wurth Elektronik
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | GPS Module | |
| Number of Channels | 52 | |
| Acquisition Sensitivity | -148dBm | |
| Tracking Sensitivity | -165dBm | |
| Frequency | 1620MHz | |
| Height | 2.2mm | |
| Length | 3.66mm | |
| Minimum Supply Voltage | 1.71V | |
| Maximum Supply Voltage | 1.89V | |
| Protocol | NMEA, OSP | |
| Time to First Fix - Cold Start | 28s | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Width | 3.5 mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type GPS Module | ||
Number of Channels 52 | ||
Acquisition Sensitivity -148dBm | ||
Tracking Sensitivity -165dBm | ||
Frequency 1620MHz | ||
Height 2.2mm | ||
Length 3.66mm | ||
Minimum Supply Voltage 1.71V | ||
Maximum Supply Voltage 1.89V | ||
Protocol NMEA, OSP | ||
Time to First Fix - Cold Start 28s | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Width 3.5 mm | ||
The Wurth Elektronik Elara-II GNSS module used UART, I2C communication interface and it has ROM based memory type. It has 52 channel with RF pad type antenna connector.
Operating temperature -40 up to +85 °C
