RF Solutions GPS-1216F GPS Receiver -165 dBm 1.58 GHz
- RS stock no.:
- 203-4661
- Mfr. Part No.:
- GPS-1216F
- Manufacturer:
- RF Solutions
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 275,80
(exc. VAT)
R 317,17
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 275.80 |
| 5 - 9 | R 268.91 |
| 10 - 24 | R 260.84 |
| 25 - 49 | R 250.41 |
| 50 + | R 240.39 |
*price indicative
- RS stock no.:
- 203-4661
- Mfr. Part No.:
- GPS-1216F
- Manufacturer:
- RF Solutions
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RF Solutions | |
| Product Type | GPS Receiver | |
| Number of Channels | 12 | |
| Acquisition Sensitivity | -165dBm | |
| Tracking Sensitivity | -148dBm | |
| Frequency | 1.58GHz | |
| Height | 2.4mm | |
| Length | 16mm | |
| Interface Type | UART | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 4.2V | |
| Minimum Operating Temperature | -40°C | |
| Protocol | GPS | |
| Time to First Fix - Cold Start | 23s | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | GPS-1216F | |
| Select all | ||
|---|---|---|
Brand RF Solutions | ||
Product Type GPS Receiver | ||
Number of Channels 12 | ||
Acquisition Sensitivity -165dBm | ||
Tracking Sensitivity -148dBm | ||
Frequency 1.58GHz | ||
Height 2.4mm | ||
Length 16mm | ||
Interface Type UART | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 4.2V | ||
Minimum Operating Temperature -40°C | ||
Protocol GPS | ||
Time to First Fix - Cold Start 23s | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series GPS-1216F | ||
- COO (Country of Origin):
- TW

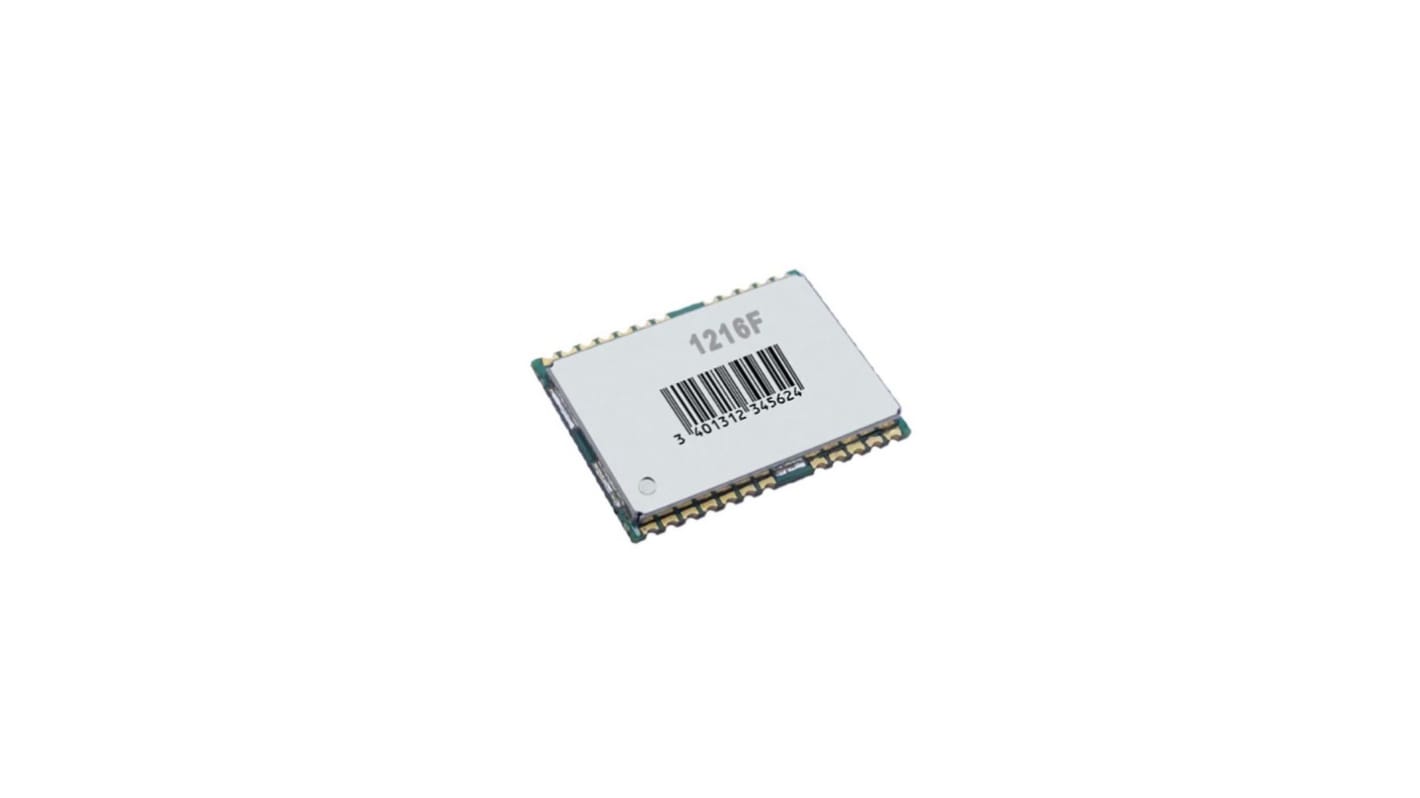

The RF Solutions ultra high sensitivity and low power GPS receiver module is based on high performance features of the MediaTek MT3337 single-chip architecture. Small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.
Extremely fast TTFF at low signal level
Built-in 12 multi-tone active interference canceller
NMEA Outputs are GGA, GSA, GSV, RMC, VTG , GLL
Support QZSS
It is RoHS certified
