Schneider Electric PanelSeT Series Light Grey Steel General Purpose Enclosure, IP20, IK08 500 mm, 650 mm, 600 mm
- RS stock no.:
- 256-6852
- Mfr. Part No.:
- NSYOPB12U5P
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
R 21 530,56
(exc. VAT)
R 24 760,14
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 21,530.56 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS stock no.:
- 256-6852
- Mfr. Part No.:
- NSYOPB12U5P
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Body Material | Steel | |
| Product Type | General Purpose Enclosure | |
| External Height | 500mm | |
| External Width | 600mm | |
| External Length | 650mm | |
| IP Rating | IP20 | |
| Colour | Light Grey | |
| Hazardous Area Certification | No | |
| Internal Mount Type | Wall | |
| Series | PanelSeT | |
| Standards/Approvals | CHINA RoHS, RoHS, REACH, IEC 60297-3-100 EIA-310D, EU RoHS | |
| Weight | 25kg | |
| Better World Product | Yes | |
| Better World Claim | Designed for Disassembly | |
| IK Rating | IK08 | |
| Transparent Door | No | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Body Material Steel | ||
Product Type General Purpose Enclosure | ||
External Height 500mm | ||
External Width 600mm | ||
External Length 650mm | ||
IP Rating IP20 | ||
Colour Light Grey | ||
Hazardous Area Certification No | ||
Internal Mount Type Wall | ||
Series PanelSeT | ||
Standards/Approvals CHINA RoHS, RoHS, REACH, IEC 60297-3-100 EIA-310D, EU RoHS | ||
Weight 25kg | ||
Better World Product Yes | ||
Better World Claim Designed for Disassembly | ||
IK Rating IK08 | ||
Transparent Door No | ||
- COO (Country of Origin):
- RO

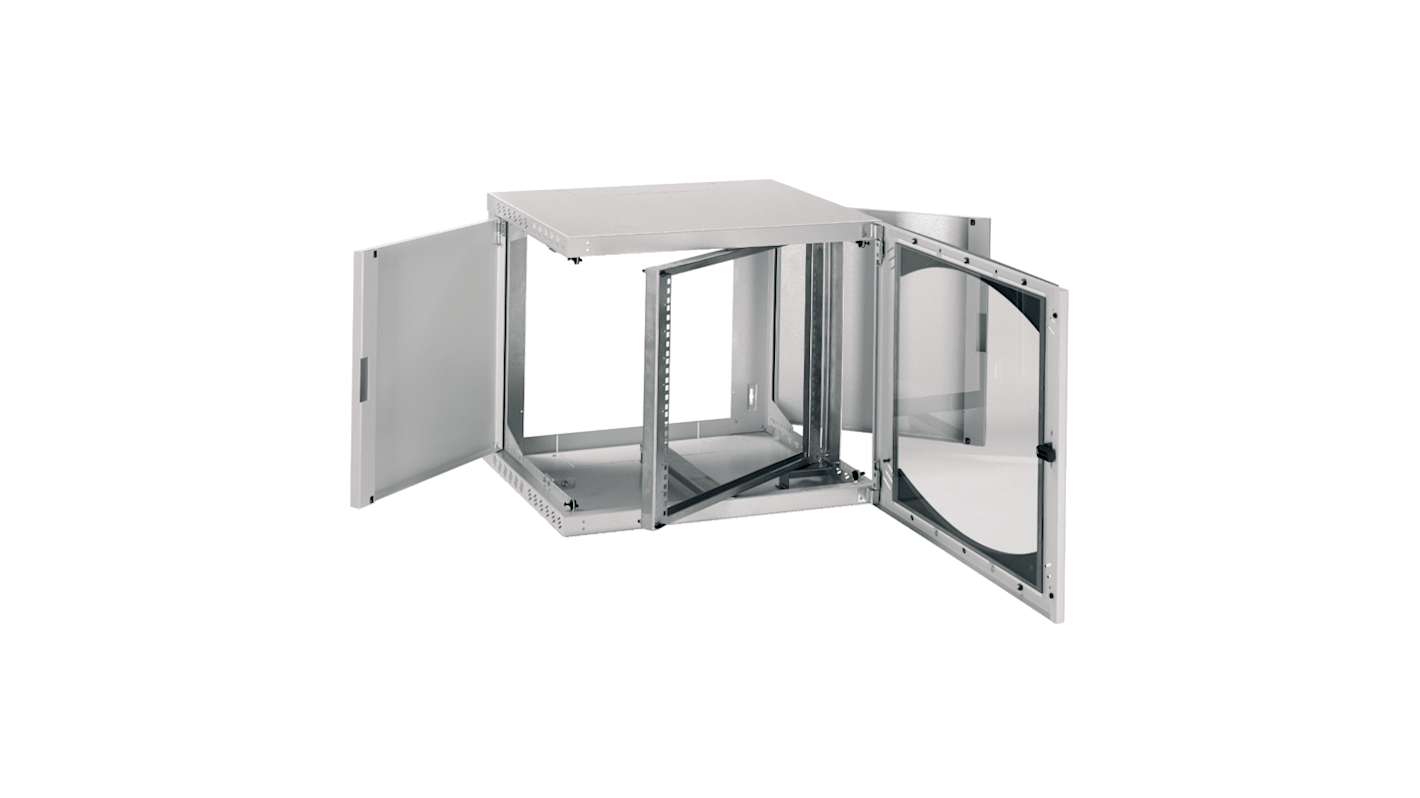

The Schneider Electric wall-mounting enclosure made from folded and welded sheet steel, powder paint, leather-grain finish, RAL 7035 light grey epoxy-polyester. The Enclosure is made up of a body 2 hinged and removable side panels, 19-inch fixed uprights and a security glass transparent door. Fixed 19-inch rack that accept up to 3kg per Unit, maximum 50kg per enclosure.
Number of rack unit 12U
Glazed door
Light grey color
