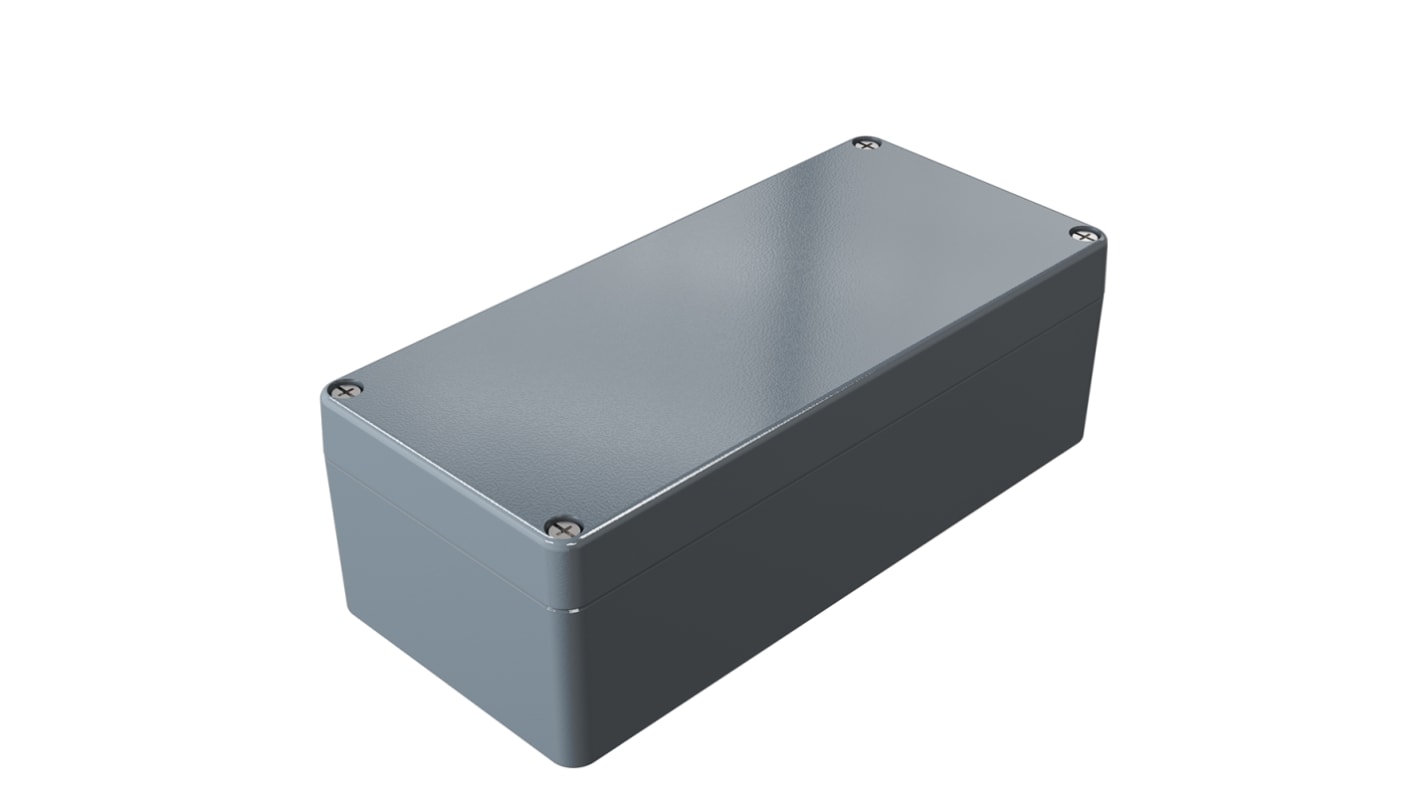

Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 250 x 80 x 52mm
- RS stock no.:
- 506-924
- Mfr. Part No.:
- 01082505
- Manufacturer:
- Rose
4 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Price (Excl VAT) Each
R 1 108,04
(exc. VAT)
R 1 274,25
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 11 | R 1 108,04 |
| 12 - 24 | R 1 080,34 |
| 25 - 49 | R 1 047,93 |
| 50 + | R 1 006,01 |
Not Available for premium delivery
- RS stock no.:
- 506-924
- Mfr. Part No.:
- 01082505
- Manufacturer:
- Rose
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
ROSE Grey Die-Cast Aluminium Enclosure, 250mm Width, 80mm Height - Aluminium Standard Series - 01082505
Choose this robust enclosure from ROSE to house electronic components in your workplace. The box is made of die-cast aluminium, which ensures effective resistance to impact and corrosion. Its light weight of 0.78kg means it won't place too much strain on your equipment. This enclosure is suitable for mounting on a DIN rail or a fixing plate, giving you flexible installation options. The polyurethane (PU) gasket material ensures a good seal to protect your equipment against dirt and other contaminants.
Features & Benefits
• IP66 (ingress protection) rating means it's dust-tight and protected against high-pressure water jets
• Compact dimensions of 80 (height) x 250 (width) x 52mm (depth) for installation in areas where space is limited
• Supplied with stainless steel captive screws for securing the lid in place to prevent tampering
• Compact dimensions of 80 (height) x 250 (width) x 52mm (depth) for installation in areas where space is limited
• Supplied with stainless steel captive screws for securing the lid in place to prevent tampering
Applications
• Food and beverage production
• Chemical industry
• Electronic modules
• Solar power batteries
• Chemical industry
• Electronic modules
• Solar power batteries
Can this enclosure withstand use in high-heat environments?
Yes, thanks to its broad operating temperature range of -40°C to +90°C, this enclosure is suitable for use in both hot and cold environments.
Specification
Attribute | Value |
|---|---|
| Body Material | Die Cast Aluminium |
| External Length | 250 mm |
| External Height | 250 mm |
| External Width | 80 mm |
| External Dimensions | 250 x 80 x 52mm |
| IP Rating | IP66 |
| Range | Aluminium Enclosure |
| Colour | Grey |
| Lid Colour | Grey |
| Flanged | No |
| Hazardous Area Certification | Lloyds Register, Maritime Register, UL 508 |
| Shielded | No |
| Series | Aluminium Standard |
| Number Of Knockouts | 0 |
| Weight | 710g |
| Transparent Door | No |
| IK Rating | IK09 |
| Gasket Material | Polyurethane |
| RAL Code | RAL 7001 |
