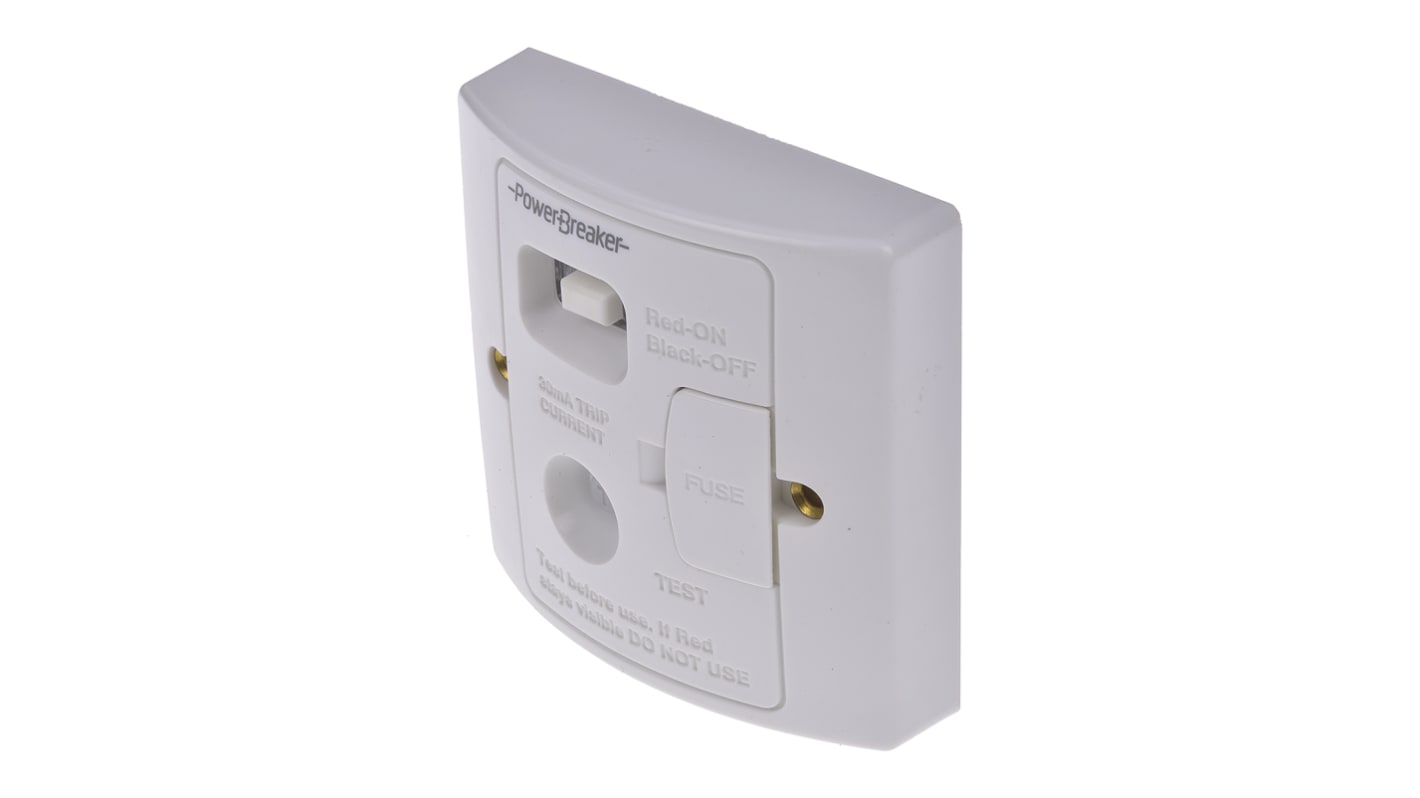

Powerbreaker 13A 1 Gang Switched Fused Spur BS1363-4:1995, EN 61543:1995, EN 55014-1:2006, BS7288:1990, EN55014-1:2000

RS stock no.:: 157-9636
Mfr. Part No.:: H92WP-C
Manufacturer:: Powerbreaker

Bulk discount available

Subtotal (1 unit)*

R 1 120,87

(exc. VAT)

R 1 289,00

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

20 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	R 1,120.87
10 - 24	R 1,092.85
25 +	R 1,060.06

*price indicative

RS stock no.:: 157-9636
Mfr. Part No.:: H92WP-C
Manufacturer:: Powerbreaker

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Powerbreaker
	Product Type	Fused Spur
	Switched	Yes
	Number of Gangs	1
	Current Rating	13A
	Material	Compression Thermoset Plastic
	Standards/Approvals	BS1363-4:1995, EN 61543:1995, EN 55014-1:2006, BS7288:1990, EN55014-1:2000
	RCD Type	Passive
	Colour	White
	IP Rating	IP40
	Number of Poles	2
	Depth	27.2mm
	Height	86mm
	Width	86mm
	Voltage	230V ac
	Trip Current	30mA
	Earth Terminal	Yes
	Faceplate Depth	13.5mm
	Trip Speed	20ms
	Minimum Box Depth	25mm

	Select all
	Brand Powerbreaker
	Product Type Fused Spur
	Switched Yes
	Number of Gangs 1
	Current Rating 13A
	Material Compression Thermoset Plastic
	Standards/Approvals BS1363-4:1995, EN 61543:1995, EN 55014-1:2006, BS7288:1990, EN55014-1:2000
	RCD Type Passive
	Colour White
	IP Rating IP40
	Number of Poles 2
	Depth 27.2mm
	Height 86mm
	Width 86mm
	Voltage 230V ac
	Trip Current 30mA
	Earth Terminal Yes
	Faceplate Depth 13.5mm
	Trip Speed 20ms
	Minimum Box Depth 25mm

Fused Spur Drawing

Exempt

COO (Country of Origin):: MY

Fused Spur - White Plastic Moulded

Integral cord outlet and cable clamp

Padlockable fuse carrier

Does not need resetting after power failure

30mA/40ms sensitivity

Mechanical flag to indicate contact position

Power Breaker RCDs

Providing protection against electrocution

Double pole switching on all types

Trip Current 30mA

Twin earth terminal

All terminals are in-line with captive screws for ease of installation

Detects pulsating dc fault currents to protect electronic equipment, loss of earth and neutral and reversed supply polarity

230Vac 50Hz

Suitable for Flush or surface mounting

Single and double gang sockets fit in place of standard sockets

Integral set and indicator button

Resistant to nuisance tripping

Typical trip speed <40ms

Standards

BS1363; BS7071

Supplied with

8888
