RS PRO 30 A In-line Fuse Holder for 19 x 18.6 mm, 32 V dc

RS stock no.:: 284-6489
Manufacturer:: RS PRO

RS PRO 30 A In-line Fuse Holder for 19 x 18.6 mm, 32 V dc

Subtotal (1 pack of 5 units)*

R 472,69

(exc. VAT)

R 543,595

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

1,685 unit(s) ready to ship from another location
Plus 600 unit(s) shipping from 14 July 2026
Plus 800 unit(s) shipping from 08 September 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 +	R 94.538	R 472.69

*price indicative

RS stock no.:: 284-6489
Manufacturer:: RS PRO

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Product Type	In-line Fuse Holder
	Current Rating	30 A
	Voltage	32 V dc
	Body Material	Polyvinyl Chloride
	Minimum Operating Temperature	-40°C
	Compatible Fuse Size	19 x 18.6 mm
	Maximum Operating Temperature	105°C
	Standards/Approvals	IP65, CE
	Contact Material	Brass, Copper
	Terminal Type	Wire

	Select all
	Brand RS PRO
	Product Type In-line Fuse Holder
	Current Rating 30 A
	Voltage 32 V dc
	Body Material Polyvinyl Chloride
	Minimum Operating Temperature -40°C
	Compatible Fuse Size 19 x 18.6 mm
	Maximum Operating Temperature 105°C
	Standards/Approvals IP65, CE
	Contact Material Brass, Copper
	Terminal Type Wire

Exempt

COO (Country of Origin):: CN

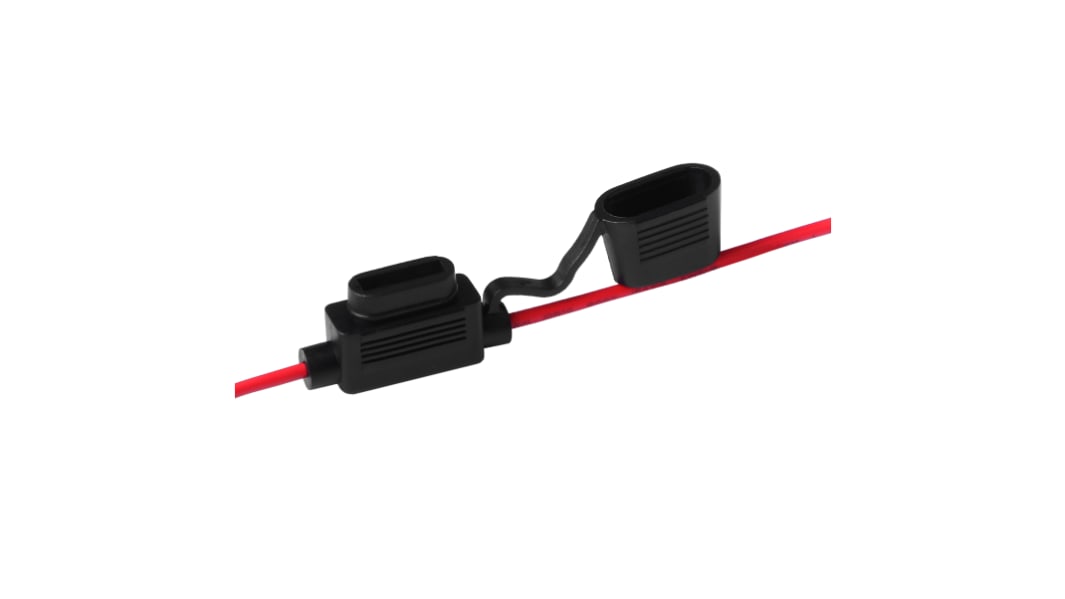

RS PRO 30A Inline Fuse Holder

RS PRO is proud to introduce a range high-quality Inline fuse holders. These fuse holders work in conjunction with a 30A blade fuse and together is designed to be a sacrificial component in electrical and electronic applications. The primary purpose of a fuse is to ultimately isolate circuitry or components from being damaged or destroyed in the event of an electrical surge.;Upon inspection the fuse holders have a standard 100 mm 1015 12 AWG wire leads on either side, PVC housing with cover for a 30 A blade fuse which secures and protects the installed fuse from splashes and debris. The RS PRO fuse holder is versatile and commonly found in automotive, audio & video applications.

Features and Benefits

Robust and reliable

Compact design

Manufactured from high-quality materials

Quick and easy to connect

Accommodates ATO/ATC blade fuses

Specifications

Inline fuse holder

30 A, 32V

Material: PVC, Brass, Copper

100 mm 1015 12 AWG wire leads -Red

Operating Temp: -40 °C to +105° C

Applications

Accessory lighting

Vehicle wiring looms

Electronics

Motorbikes

Automotive

Audio & Video
