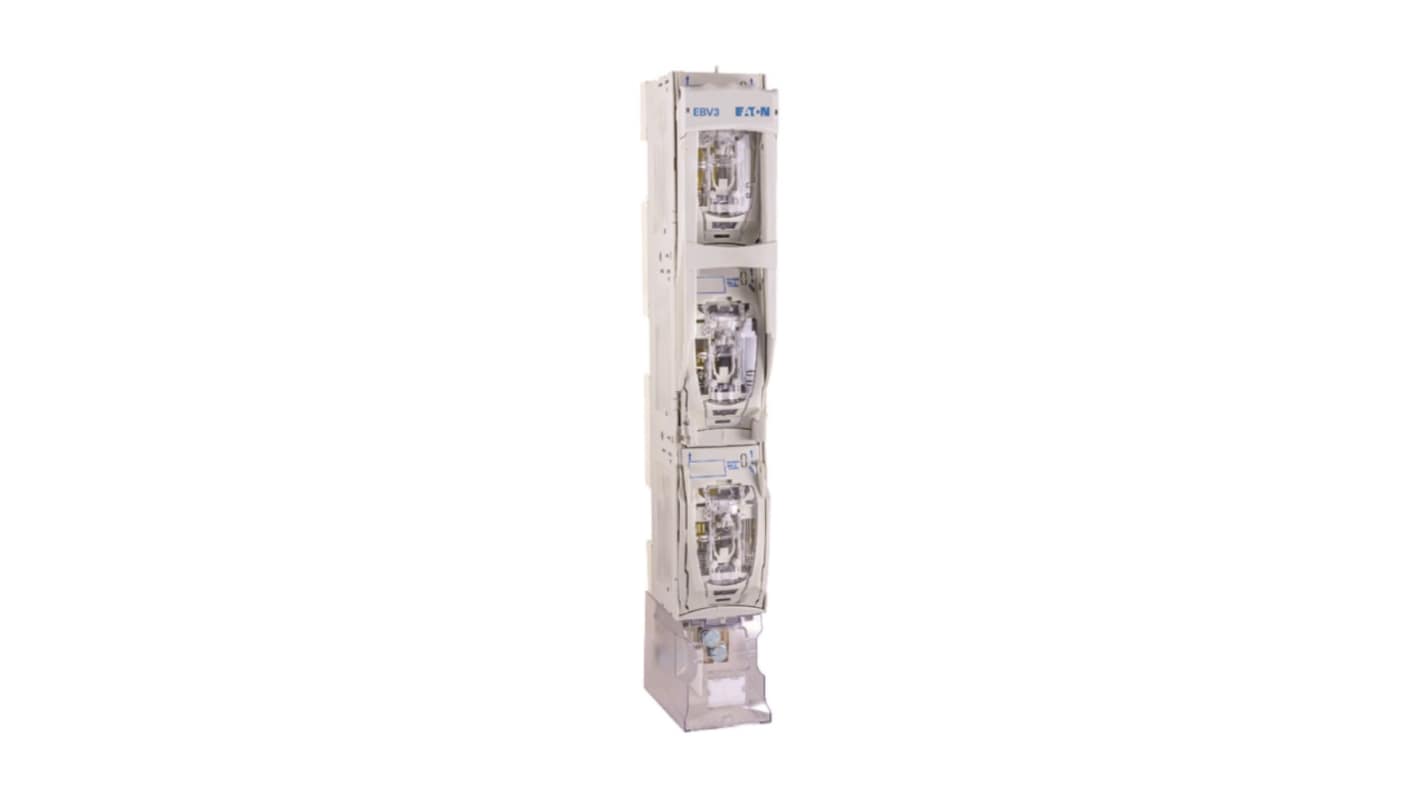

Eaton 630A Fuse Holder, 3P-Pole for 715 x 190 mm, 690V

View all Fuse Holders

Subtotal (1 unit)*

R 10 718,17

(exc. VAT)

R 12 325,90

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 10,718.17

*price indicative

RS stock no.:
261-323
Mfr. Part No.:
EBF3330W1
Manufacturer:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Fuse Holder

Current Rating

630A

Voltage

690V

Number of Poles

3

Compatible Fuse Size

715 x 190 mm

Standards/Approvals

IEC 60269-2, IEC 60269-1

Series

EBF3330W1

Exempt

COO (Country of Origin):
PL

Eaton Fuse Holder, 630A Current Rating, 690V Voltage - EBF3330W1


This fuse holder is a three-pole device designed to carry and secure high-current fuses within industrial electrical systems. It is intended for use where robust connection and safe fuse integration are required in 3-phase installations operating at elevated voltages. The component is suited to heavy-duty electrical panels and switchgear assemblies in automation, electronics and mechanical environments.

Features & Benefits


• Rated for continuous 630A operation providing high current capacity
• Three-pole configuration enabling secure 3-phase protection
• Rated for 690V service supporting high-voltage distribution
• Constructed to comply with IEC 60269-1 standards ensuring compatibility
• Meets IEC 60269-2 requirements for gG fuse applications
• Bolt-on mounting style allowing firm attachment within panels

**Applications**


• Suitable for power distribution in industrial switchgear assemblies
• Ideal for 3-phase motor protection in manufacturing plants
• Used with high-current fuses in electrical distribution boards
• Can be used for safeguarding control panels in automation systems
• Suitable for retrofit of heavy electrical installations requiring bolt-on carriers

What current capacity should I expect for heavy-load circuits?


The device is specified for 630A continuous current, making it appropriate for high-demand circuits in industrial settings.

Which system voltages is it compatible with?


It is designed for operation up to 690V, supporting high-voltage distribution and 3-phase supply systems.

Which standards govern its fuse compatibility?


Compatibility follows IEC 60269-1 for general fuse requirements and IEC 60269-2 for cartridge fuse applications, including gG utilisation types.

How is the unit secured inside electrical panels?


The holder is intended for bolt-on installation, providing a mechanically secure connection within switchgear and distribution enclosures.
