Wurth Elektronik Ferrite Bead 1.6 mm (Surface) (1206) (Ferrite Bead), 110 Ω impedance at 100 MHz
- RS stock no.:
- 863-0873
- Distrelec Article No.:
- 304-38-073
- Mfr. Part No.:
- 74279221111
- Manufacturer:
- Wurth Elektronik

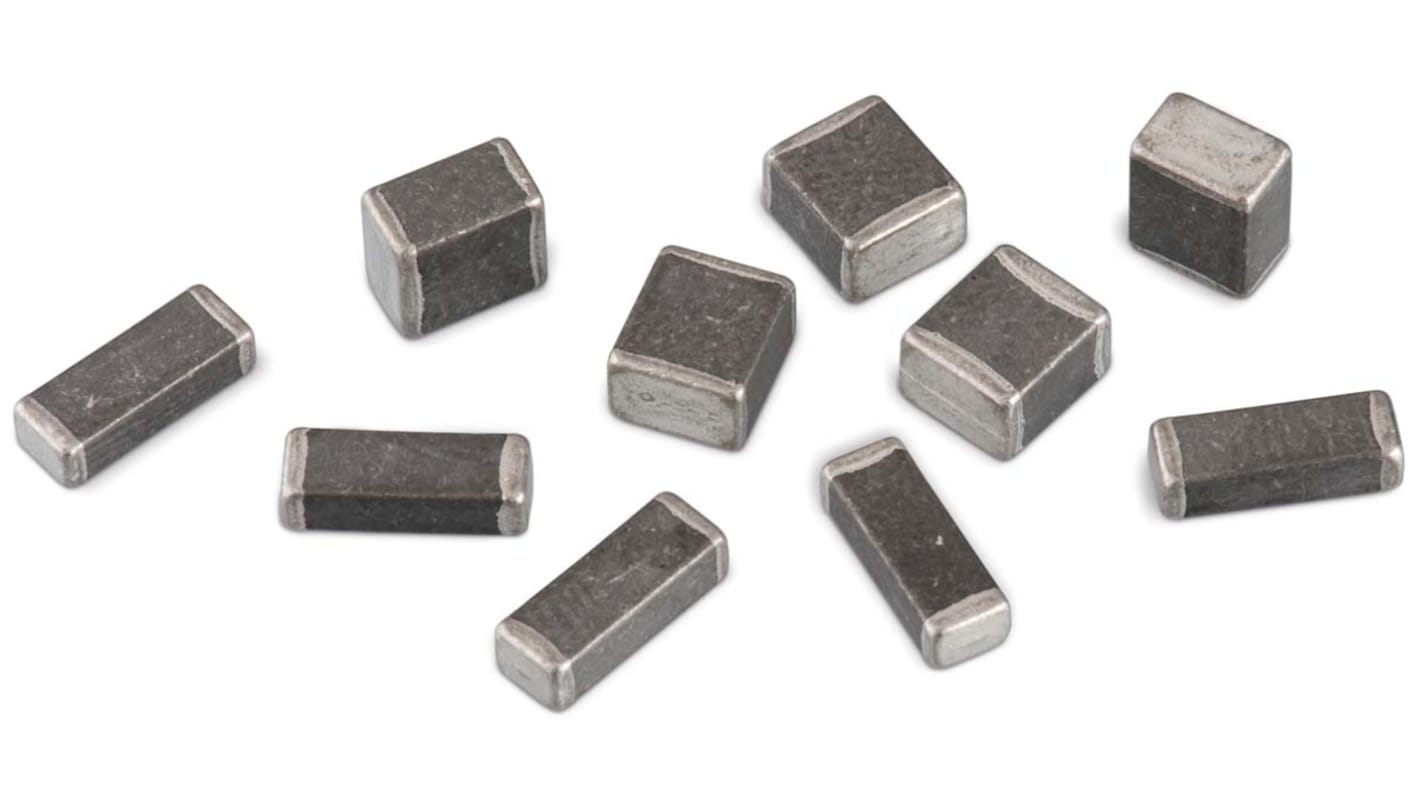

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
R 89,83
(exc. VAT)
R 103,30
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 30 unit(s) ready to ship from another location
- Plus 1,370 unit(s) shipping from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | R 8.983 | R 89.83 |
| 100 - 490 | R 8.758 | R 87.58 |
| 500 - 990 | R 8.495 | R 84.95 |
| 1000 - 2990 | R 8.155 | R 81.55 |
| 3000 + | R 7.829 | R 78.29 |
*price indicative
- RS stock no.:
- 863-0873
- Distrelec Article No.:
- 304-38-073
- Mfr. Part No.:
- 74279221111
- Manufacturer:
- Wurth Elektronik
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Package Type | 1206 | |
| Product Type | Ferrite Bead | |
| Impedance at 100 MHz | 110Ω | |
| Packaging | Tape & Reel | |
| Current Rating | 5.4A | |
| Mount Type | Surface | |
| Sub Type | Ferrite Bead | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | IPC/JEDEC J-STD-020D | |
| Height | 1.6mm | |
| Maximum DC Resistance | 15mΩ | |
| Depth | 1.1mm | |
| Length | 3.2mm | |
| Automotive Standard | AEC-Q200 | |
| Application | Power Supplies, High Current, DC Converter | |
| Material | Ferrite | |
| Series | WE-MPSB | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Package Type 1206 | ||
Product Type Ferrite Bead | ||
Impedance at 100 MHz 110Ω | ||
Packaging Tape & Reel | ||
Current Rating 5.4A | ||
Mount Type Surface | ||
Sub Type Ferrite Bead | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals IPC/JEDEC J-STD-020D | ||
Height 1.6mm | ||
Maximum DC Resistance 15mΩ | ||
Depth 1.1mm | ||
Length 3.2mm | ||
Automotive Standard AEC-Q200 | ||
Application Power Supplies, High Current, DC Converter | ||
Material Ferrite | ||
Series WE-MPSB | ||
- COO (Country of Origin):
- TW
EMI Multilayer Power Suppression Bead - WE-MPSB Series
Wurth WE-MPSB series Compact SMD suppression bead with high current up to 10.5A
Recommended for reflow soldering
Operating Temperature range: -55°C to +125°C
Very low RDC
Applications in Filter with high inrush current peaks; motor interference suppression; EMI suppression of DC/DC converters and DC power supply; Broadband suppression
