Murata Ferrite Bead (Chip Ferrite Bead), 1 x 0.5 x 0.5mm (0402 (1005M)), 22Ω impedance at 100 MHz
- RS stock no.:
- 811-9786
- Mfr. Part No.:
- BLM15BB220SN1D
- Manufacturer:
- Murata

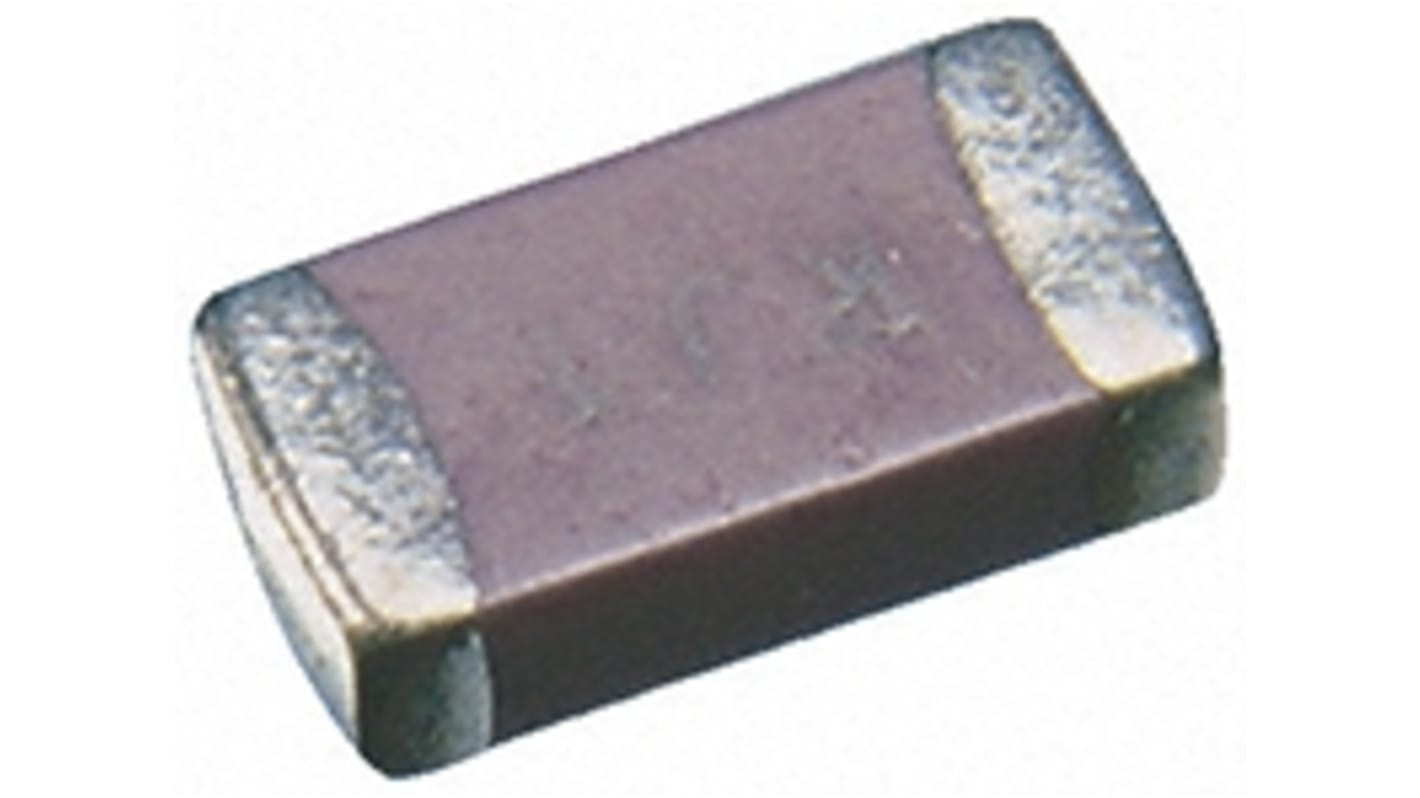

Image representative of range
Bulk discount available
Subtotal (1 bag of 50 units)*
R 46,60
(exc. VAT)
R 53,60
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 50 - 450 | R 0.932 | R 46.60 |
| 500 - 2450 | R 0.908 | R 45.40 |
| 2500 - 9950 | R 0.881 | R 44.05 |
| 10000 - 19950 | R 0.846 | R 42.30 |
| 20000 + | R 0.812 | R 40.60 |
*price indicative
- RS stock no.:
- 811-9786
- Mfr. Part No.:
- BLM15BB220SN1D
- Manufacturer:
- Murata
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Package Type | 0402 (1005M) | |
| Impedance at 100 MHz | 22Ω | |
| Current Rating | 300mA | |
| Type | Chip Ferrite Bead | |
| Dimensions | 1 x 0.5 x 0.5mm | |
| Length | 1mm | |
| Depth | 0.5mm | |
| Height | 0.5mm | |
| Maximum DC Resistance | 300mΩ | |
| Application | EMI Suppression Filter, High Speed Signal Lines | |
| Series | BLM15B | |
| Material | Ferrite | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Package Type 0402 (1005M) | ||
Impedance at 100 MHz 22Ω | ||
Current Rating 300mA | ||
Type Chip Ferrite Bead | ||
Dimensions 1 x 0.5 x 0.5mm | ||
Length 1mm | ||
Depth 0.5mm | ||
Height 0.5mm | ||
Maximum DC Resistance 300mΩ | ||
Application EMI Suppression Filter, High Speed Signal Lines | ||
Series BLM15B | ||
Material Ferrite | ||
SMC 0402 Ferrite Filters - BLM15B series
These filters are designed to act as resistors to electronic noise frequencies.
Limit the possibility of resonance.
Do not generate distortion.
Designed for high-speed data transmission lines.
Limit the possibility of resonance.
Do not generate distortion.
Designed for high-speed data transmission lines.
