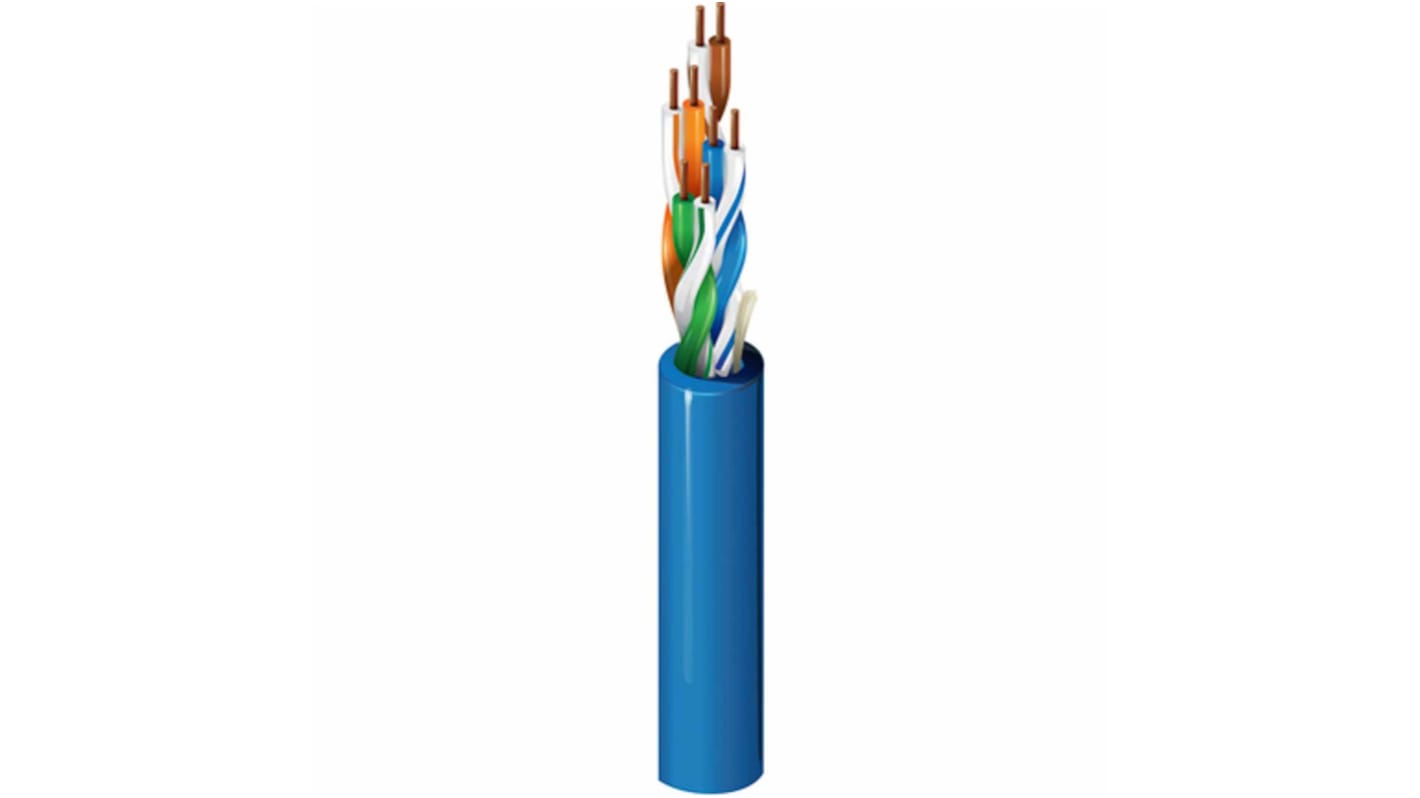

Belden 1583ENH, 305 m Cat5e Ethernet Cable, Blue Low Smoke Zero Halogen Sheath Unscreened, U/UTP

RS stock no.:: 368-4437
Mfr. Part No.:: 1583ENH.01U305
Manufacturer:: Belden

Belden 1583ENH, 305 m Cat5e Ethernet Cable, Blue Low Smoke Zero Halogen Sheath Unscreened, U/UTP

Subtotal (1 reel of 304 metres)*

R 7 042,48

(exc. VAT)

R 8 098,85

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

4 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	R 7,042.48	R 23.166

*price indicative

RS stock no.:: 368-4437
Mfr. Part No.:: 1583ENH.01U305
Manufacturer:: Belden

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Belden
	Series	1583ENH
	Product Type	Ethernet Cable
	Cable Length	305m
	LAN Category	Cat5e
	Shield Type	U/UTP
	Screened/Unscreened	Unscreened
	Conductor Type	Solid
	Jacket Colour	Blue
	Jacket Material	Low Smoke Zero Halogen
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	60°C
	Cable CSA	0.2 mm²
	Core Strands	1
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Standards/Approvals	Euroclass Dca-s2 d2 a1
	Conductor Material	Copper
	Outside Diameter	4.7 mm
	Number of Cores	8

	Select all
	Brand Belden
	Series 1583ENH
	Product Type Ethernet Cable
	Cable Length 305m
	LAN Category Cat5e
	Shield Type U/UTP
	Screened/Unscreened Unscreened
	Conductor Type Solid
	Jacket Colour Blue
	Jacket Material Low Smoke Zero Halogen
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature 60°C
	Cable CSA 0.2 mm²
	Core Strands 1
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Standards/Approvals Euroclass Dca-s2 d2 a1
	Conductor Material Copper
	Outside Diameter 4.7 mm
	Number of Cores 8

COO (Country of Origin):: HU

Belden Cat5e UTP Networking Ethernet Cable, 100m Length, 24AWG - 1583ENH.00B100

Use this Cat5e (category 5 enhanced) Ethernet cable from Belden to streamline internet data transfer to your IT systems. The cable is highly reliable thanks to its unshielded twisted pairs (UTP) structure, which increases its resistance to crosstalk and electromagnetic interference (EMI). A durable low-smoke zero-halogen (LSZH) outer sheath ensures the cable won't give off toxic gas in a fire. Solid conductor strands in the cable's core increase electric current resistance, making this an ideal choice for systems where high-speed data transfer is essential.

Features & Benefits

• Unterminated design for quick and easy installation

• High voltage rating of 48V for use in demanding electrical environments

• Capacitance of 50pF/m (farad per metre) to collect and store high levels of energy

Applications

• Data transfer

• Live broadcasting

• Networking systems

What does attenuation mean?

Attenuation refers to the loss of signals or signal strength in networking cables. A cable with a high attenuation rate can cause signals to become distorted or unreadable. This means that the lower the attenuation rate, the more reliable the cable. This cable has a low attenuation of 3.9dB (decibels) to ensure improved performance and decreased signal distortion

Standards

TIA/EIA 568B1; ISO/IEC 11801; EN 50173
