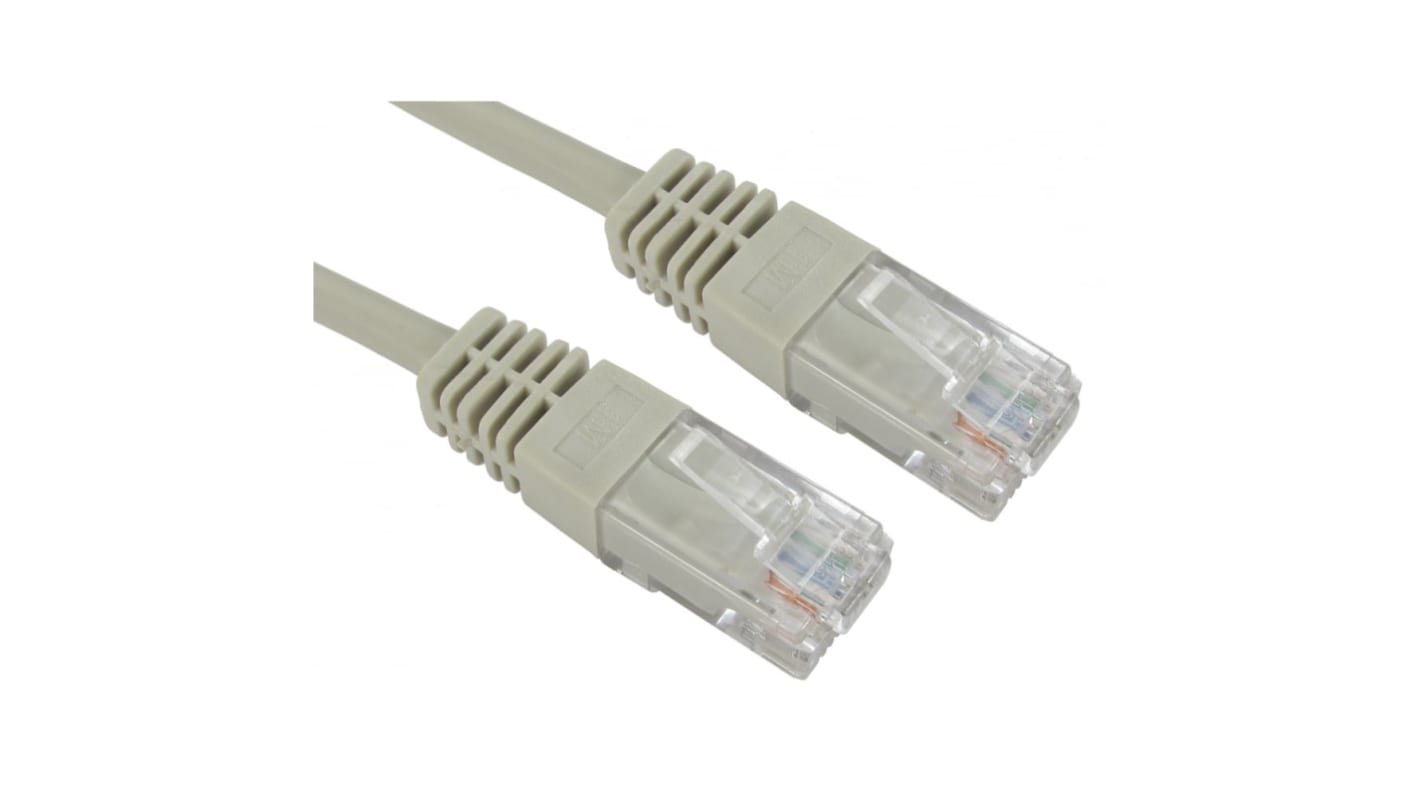

RS PRO, 6m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

RS stock no.:: 286-3633
Manufacturer:: RS PRO

RS PRO, 6m Cat5e, Grey RJ45 to Male RJ45 Male, UTP Unshielded, Terminated PVC Sheath

Subtotal (1 unit)*

R 157,21

(exc. VAT)

R 180,79

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

12 unit(s) ready to ship from another location
Plus 50 unit(s) shipping from 29 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 157.21

*price indicative

RS stock no.:: 286-3633
Manufacturer:: RS PRO

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	LAN Category	Cat5e
	Length	6m
	Terminated/Unterminated	Terminated
	Shield Type	UTP
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	8
	Connector 1 Gender	Male
	Connector 1	RJ45
	Connector 2 Gender	Male
	Connector 2	RJ45
	Connector 2 Number of Contacts	8
	Connector 2 Orientation	Straight
	Shielded/Unshielded	Unshielded
	Outer Sheath Material	PVC
	Sheath Colour	Grey
	Wiring Configuration	Straight Through
	Fire Behaviour	CM Rated
	Core Strands	7/0.15
	Standards Met	C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cross Sectional Area	0.126 to 0.158mm²
	Capacitance	5.6nF/100m
	Voltage Rating	80V
	Conductor Strand Type	Stranded
	Cable Shape	Round
	Outer Diameter	4.6mm
	American Wire Gauge	26AWG
	Number of Strands	8
	Current Rating	960mA

	Select all
	Brand RS PRO
	LAN Category Cat5e
	Length 6m
	Terminated/Unterminated Terminated
	Shield Type UTP
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 8
	Connector 1 Gender Male
	Connector 1 RJ45
	Connector 2 Gender Male
	Connector 2 RJ45
	Connector 2 Number of Contacts 8
	Connector 2 Orientation Straight
	Shielded/Unshielded Unshielded
	Outer Sheath Material PVC
	Sheath Colour Grey
	Wiring Configuration Straight Through
	Fire Behaviour CM Rated
	Core Strands 7/0.15
	Standards Met C (UL), CM (UL), ISO/IEC 11801, TIA/EIA 568B.2
	Cross Sectional Area 0.126 to 0.158mm²
	Capacitance 5.6nF/100m
	Voltage Rating 80V
	Conductor Strand Type Stranded
	Cable Shape Round
	Outer Diameter 4.6mm
	American Wire Gauge 26AWG
	Number of Strands 8
	Current Rating 960mA

COO (Country of Origin):: CN

RS PRO Ethernet Cable, Cat5e

This RS PRO Ethernet Cable is a high-performance Cat5e patch cable designed for reliable data transmission in computer networks. Ideal for Ethernet applications, it offers excellent noise rejection and is suitable for both residential and commercial use.

Features and Benefits

UTP (Unshielded Twisted Pair) design ensures minimal interference and high signal integrity
Cat5e compliance supports data rates up to 1 Gbps, making it suitable for fast network connections
Moulded connectors provide durability and strain relief, extending cable life
26 AWG bare copper cores enhance conductivity and performance
CM (UL) C(UL) 4P rating ensures compliance with safety standards
ISO/IEC 11801 and TIA/EIA 568B.2 standards guarantee compatibility with global networking requirements
PoE (Power over Ethernet) compatible, allowing power and data transmission over a single cable

Applications

Computer networks
Ethernet connections
Residential and commercial networking

Additional Information

Sheath Colour: Grey
Outer Sheath Material: PVC
Wiring Configuration: Straight Through
Fire Behaviour: CM Rated
Voltage Rating: 80 V
Length: 6 m
Connector Type: RJ45 Male to Male
