RS PRO Cat6a Ethernet Cable, U/FTP, Grey PVC Sheath, 100m
- RS stock no.:
- 113-5901
- Manufacturer:
- RS PRO
8 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) 1 Reel of 100 Metre(s)
R 3 705,46
(exc. VAT)
R 4 261,28
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 2 | R 3 705,46 | R 37,055 |
| 3 - 4 | R 3 612,82 | R 36,128 |
| 5 + | R 3 504,44 | R 35,044 |
| *price indicative | ||
- RS stock no.:
- 113-5901
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

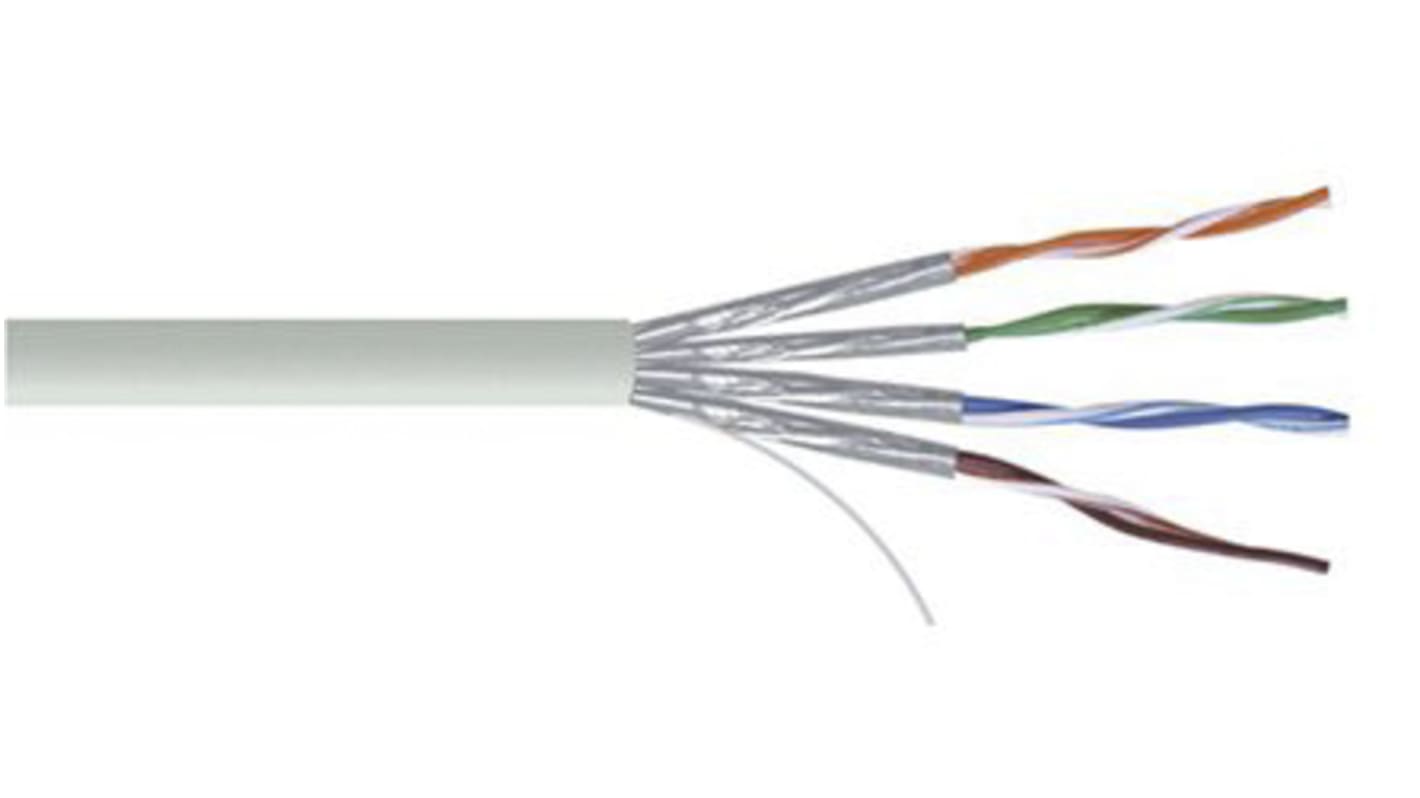

RS Pro Shielded Ethernet Cat6a Cable
Brought to you by RS Pro, A well built and durable Cat6a cable suitable for home, office and industrial networks requiring a reliable internet connection. Being Cat6a, these shielded ethernet cables have a copper conductor and are suitable for 10 gigabit per second networks and will provide a frequency of up to 500 MHz, both at 100 m.
Features and Benefits
• 4 Pair multi construction
• Bare copper conductor
• Cat6a performs at better lengths than a cat6
• Skin foam skin insulation
• Both 100 m and 500 m shielded cables available
• Bare copper conductor
• Cat6a performs at better lengths than a cat6
• Skin foam skin insulation
• Both 100 m and 500 m shielded cables available
Do these cables come with a connector?
These particular RS Pro cables are unterminated at both ends (bare copper), meaning a connector will need to be attached. RJ45 are the standard connector used with these types of cat6a shielded cables. Meaning once an RJ45 connector is attached, installation to an ethernet network can occur.
Why Cat6a?
Cat6a has a reputation for delivering excellent speeds and frequencies at long lengths. A cat6 on average would put out 250 MHz at 100 m and 10 gb/s at around 45 m. The cat6a version will more double the length for the network speed 10 gigbits per second at 100 m and also double the frequency (500 MHz at 100m). If it's a big space you need for an ethernet connection, then a cat6a cable is a perfect choice.
What is a Cat6a Cable?
A Cat6a cable or Category 6a cables are an high speed type of ethernet cable or patch cable as they're also known. They are used as a commonly within various types of industries and workplaces, including offices and warehouses requiring a network connection. Anywhere which has an internet connection, it's almost a guarantee you'll find one of these network cables.
What is UTP?
UTP (unshielded twisted pair) is a certain type of wiring design in which 2 conductors are crossed with each other inside the cabling. This will greatly improve the electromagnetic capability of the cable securing a highly reliable network connection.
Standards
ISO/IEC 11801:2011, IEC61156-5:2009, IEC60332-1, IEC61034, IEC60754
What kind of shield does this cable have?
RS Stock Number 113-5901 has a shield type of U/FTP, meaning each of the four twisted pairs inside the shielded cabling is foil lined to guarantee extra protection.
Standards
IEC61156- & ISO/IEC 11801
Specification
Attribute | Value |
|---|---|
| Length | 100m |
| LAN Category | Cat6a |
| Terminated/Unterminated | Unterminated |
| Shield Type | U/FTP |
| Shielded/Unshielded | Shielded |
| CPR Certification | Fca |
| Sheath Colour | Grey |
| Outer Sheath Material | PVC |
| Number of Strands | 8 |
| Cable Shape | Twisted Pair |
| Standards Met | Euroclass Eca |
| American Wire Gauge | 23 AWG |
| Outer Diameter | 7.5mm |
| Conductor Strand Type | Solid |
