Broadcom AFBR-S6PY3151 Environmental Sensor for Gas Leak Detectors & Alarm
- RS stock no.:
- 281-3004
- Mfr. Part No.:
- AFBR-S6PY3151
- Manufacturer:
- Broadcom

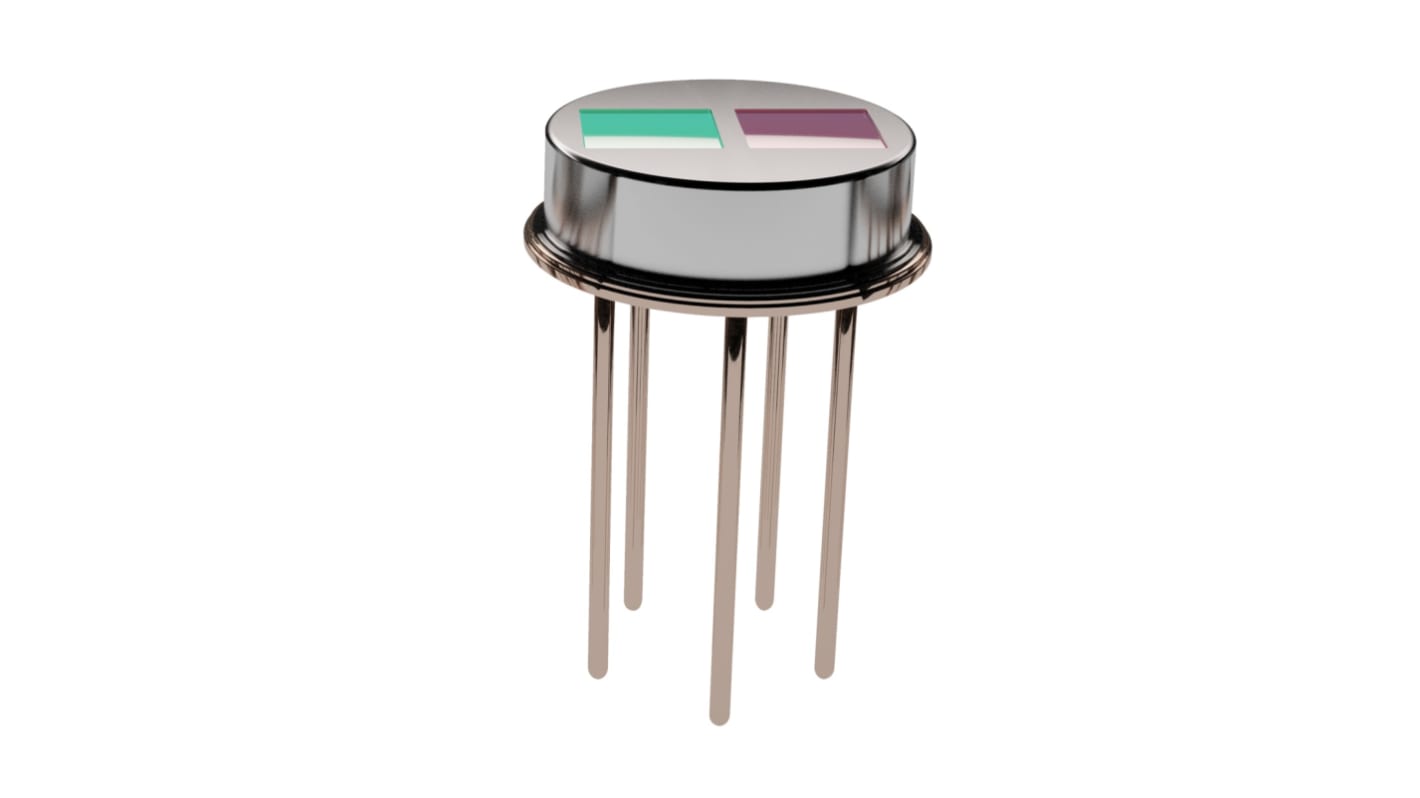

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 1 053,71
(exc. VAT)
R 1 211,77
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 100 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | R 1,053.71 |
| 10 - 24 | R 1,027.37 |
| 25 - 49 | R 996.55 |
| 50 + | R 956.69 |
*price indicative
- RS stock no.:
- 281-3004
- Mfr. Part No.:
- AFBR-S6PY3151
- Manufacturer:
- Broadcom
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Environmental Sensor | |
| Response Time | 10ms | |
| Application | Gas Leak Detectors & Alarm | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 1.75V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Package Type | Surface Mount | |
| Maximum Operating Temperature | 85°C | |
| Length | 5.65mm | |
| Width | 3.7 mm | |
| Standards/Approvals | No | |
| Series | ezPyro | |
| Height | 1.75mm | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Environmental Sensor | ||
Response Time 10ms | ||
Application Gas Leak Detectors & Alarm | ||
Mount Type Surface | ||
Minimum Supply Voltage 1.75V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Package Type Surface Mount | ||
Maximum Operating Temperature 85°C | ||
Length 5.65mm | ||
Width 3.7 mm | ||
Standards/Approvals No | ||
Series ezPyro | ||
Height 1.75mm | ||
- COO (Country of Origin):
- MY
The Broadcom thin film pyroelectric infrared (IR) sensors for gas detection and other substance concentration measurements, The main use of this high sensitivity device is CO2 detection. It is High-performance current mode sensor that achieves a signal-to-noise of 10,000 and offers a fast, stable response over a wide operating frequency range. The sensor elements are built into a low noise circuit that has an internal CMOS op amp, with a 10 GΩ feedback resistor outputting a voltage signal centered on half the supply rail. This product is lead-free and compliant with RoHS.
High sensitivity
Thermally stable to slow drift and thermal shock
Extended temperature range
Less external gain required
Reliable and easy to use
