Siemens SIRIUS ACT 3SU11 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, 1NC, IP66, IP67,
- RS stock no.:
- 180-9497
- Distrelec Article No.:
- 300-21-100
- Mfr. Part No.:
- 3SU1100-1HB20-1CF0
- Manufacturer:
- Siemens
Subtotal (1 unit)*
R 934,75
(exc. VAT)
R 1 074,96
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 37 unit(s) shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 934.75 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS stock no.:
- 180-9497
- Distrelec Article No.:
- 300-21-100
- Mfr. Part No.:
- 3SU1100-1HB20-1CF0
- Manufacturer:
- Siemens
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Mounting Type | Panel Mount | |
| Cutout Diameter | 22mm | |
| Better World Product | Yes | |
| Contact Configuration | 1NC | |
| Voltage Rating | 5 → 500V ac/dc | |
| Push Button Actuation | Twist Release | |
| Illuminated | No | |
| Series | SIRIUS ACT 3SU11 | |
| IP Rating | IP66, IP67, IP69 | |
| Colour | Red | |
| Push Button Shape | mushroom | |
| Supply Current | 10A | |
| Depth | 95mm | |
| Auxiliary Contacts | NC | |
| Width | 75mm | |
| Better World Claim | Extended product life, Low carbon manufacture | |
| Height | 40mm | |
| Push Button Material | Plastic | |
| Bezel Material | Plastic | |
| Switch Operation | Latching | |
| Push Button Diameter | 22mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Mounting Type Panel Mount | ||
Cutout Diameter 22mm | ||
Better World Product Yes | ||
Contact Configuration 1NC | ||
Voltage Rating 5 → 500V ac/dc | ||
Push Button Actuation Twist Release | ||
Illuminated No | ||
Series SIRIUS ACT 3SU11 | ||
IP Rating IP66, IP67, IP69 | ||
Colour Red | ||
Push Button Shape mushroom | ||
Supply Current 10A | ||
Depth 95mm | ||
Auxiliary Contacts NC | ||
Width 75mm | ||
Better World Claim Extended product life, Low carbon manufacture | ||
Height 40mm | ||
Push Button Material Plastic | ||
Bezel Material Plastic | ||
Switch Operation Latching | ||
Push Button Diameter 22mm | ||
- COO (Country of Origin):
- DE

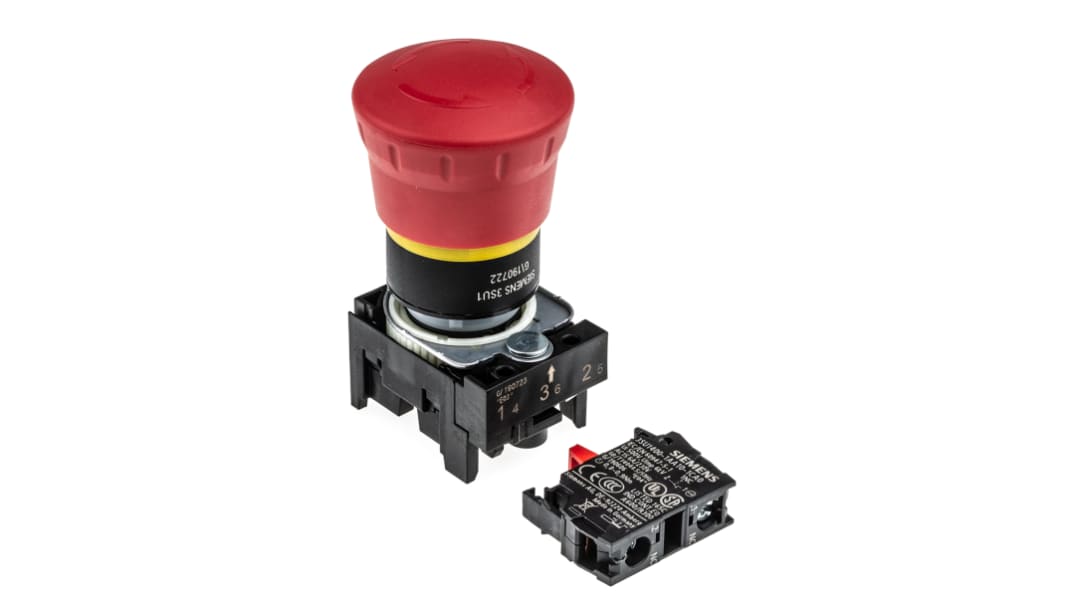

Siemens Emergency-Stop Pushbutton, Panel Mount, 40mm OD - SIRIUS ACT Series - 3SU1100-1HB20-1CF0
Optimise safety in your workplace with this SIRIUS ACT emergency-stop pushbutton from Siemens. It's a reliable control switch, also known as an E-stop, which protects both operators and equipment in a critical situation. Use it to quickly halt operations when there's a risk of injury, damage to machinery or when your workflow needs to be stopped immediately. The round red body and yellow backing plate are highly visible, so personnel can easily locate and use the button when needed. Confidently use this device in applications like communication systems, industrial automation processes and safety circuits.
• IP69K (ingress protection) rating indicates the unit is completely sealed against dust, water jets and submersion in water
• Compact (75mm) installation width so you can mount it easily in confined spaces
• Latching actuation keeps the button in place until it's manually released, for added safety
• Compact (75mm) installation width so you can mount it easily in confined spaces
• Latching actuation keeps the button in place until it's manually released, for added safety
What does a NC push button switch do?
NC (normally closed) refers to the contact position. Closed contacts supply uninterrupted power to an application. When you push this emergency push button from Siemens, it opens the contacts to interrupt the power supply and stop the machinery.
