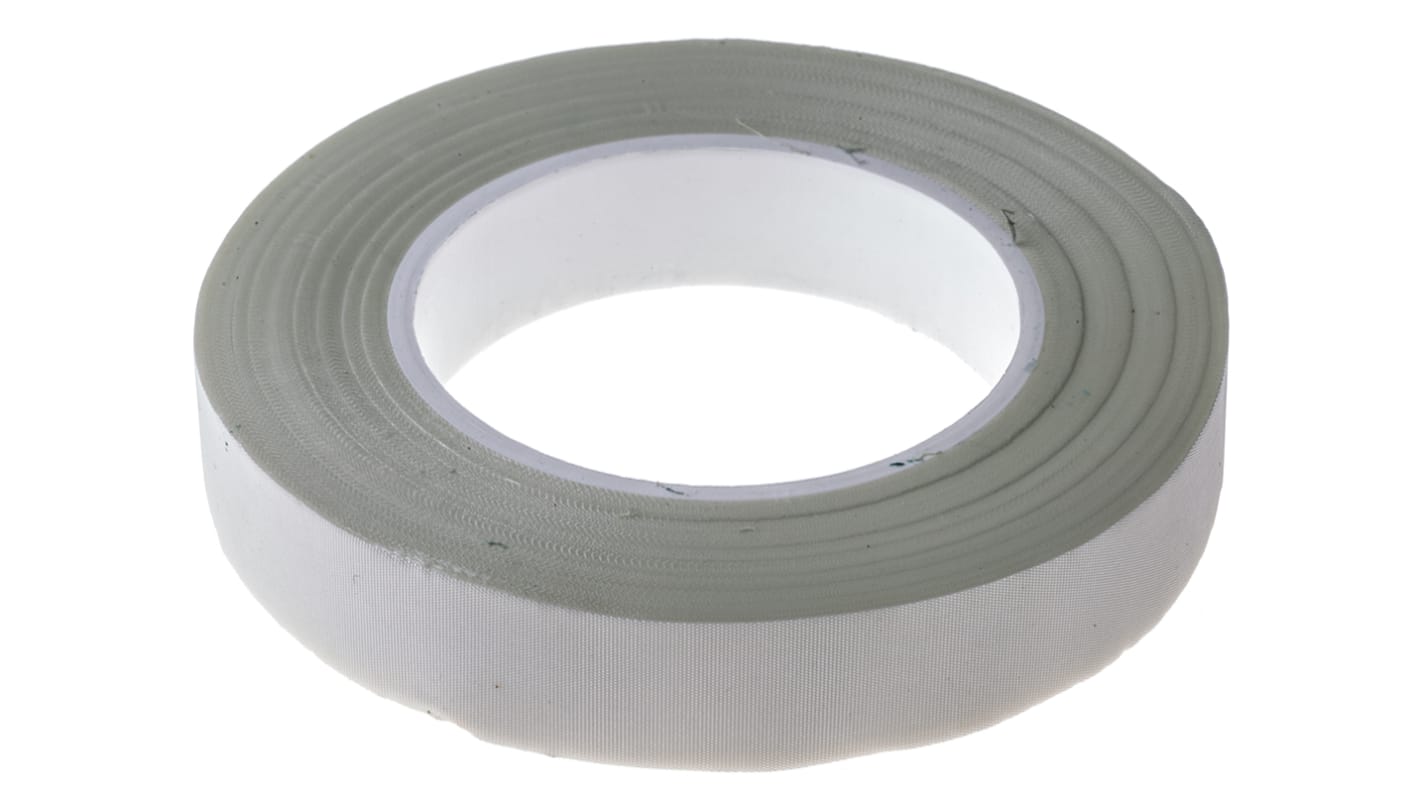

Advance Tapes AT4002 White Glass Cloth Electrical Tape, 12 mm x 55 m

RS stock no.:: 408-9445
Manufacturer:: Advance Tapes

Advance Tapes AT4002 White Glass Cloth Electrical Tape, 12 mm x 55 m

Bulk discount available

Subtotal (1 reel of 50 metres)*

R 1 019,53

(exc. VAT)

R 1 172,46

(inc. VAT)

Add 2 reels to get free delivery

Orders below R 1 500,00 (exc. VAT) cost R 120,00.

In Stock

55 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 5	R 1,019.53	R 20.391
6 - 11	R 994.04	R 19.881
12 +	R 964.22	R 19.284

*price indicative

RS stock no.:: 408-9445
Manufacturer:: Advance Tapes

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Advance Tapes
	Colour	White
	Breakdown Voltage	2.5kV
	Product Type	Electrical Tape
	Width	12 mm
	Length	55m
	Backing Material	Glass Cloth
	Thickness	0.18mm
	Maximum Operating Temperature	155°C
	Trade Name	AT4002
	Adhesive Material	Acrylic
	Adhesion Strength	3.5N/cm
	Minimum Operating Temperature	0°C
	Standards/Approvals	No
	Tensile Strength	280N/cm

	Select all
	Brand Advance Tapes
	Colour White
	Breakdown Voltage 2.5kV
	Product Type Electrical Tape
	Width 12 mm
	Length 55m
	Backing Material Glass Cloth
	Thickness 0.18mm
	Maximum Operating Temperature 155°C
	Trade Name AT4002
	Adhesive Material Acrylic
	Adhesion Strength 3.5N/cm
	Minimum Operating Temperature 0°C
	Standards/Approvals No
	Tensile Strength 280N/cm

Datasheet

Advance Tapes Glass Cloth Tape

The Advance Tapes AT4002 class F white single-sided woven glass cloth tape is an acrylic adhesive. This is 0.18mm thick, 25mm wide, and 55m long. It is used in electrical insulation of coils, insulation of square conductors in traction motors and generators as well as tensional strapping of coils and armature windings.

Features and Benefits

Very high-temperature resistance

High mechanical strength

Breaking load is 280N/cm

Adhesion to steel is 3.5N/cm

Elongation is 5%

Breakdown Voltage 2.5kV

Service temperature is from 0°C to 155°C

Applications

For electrical installation and repair work

Soldered joints and seams

Insulation of soldered joints, terminals, cable socket and conduction rails

Certifications

UL approved

BS EN 60454-3-8 type 2

ISO 9001
