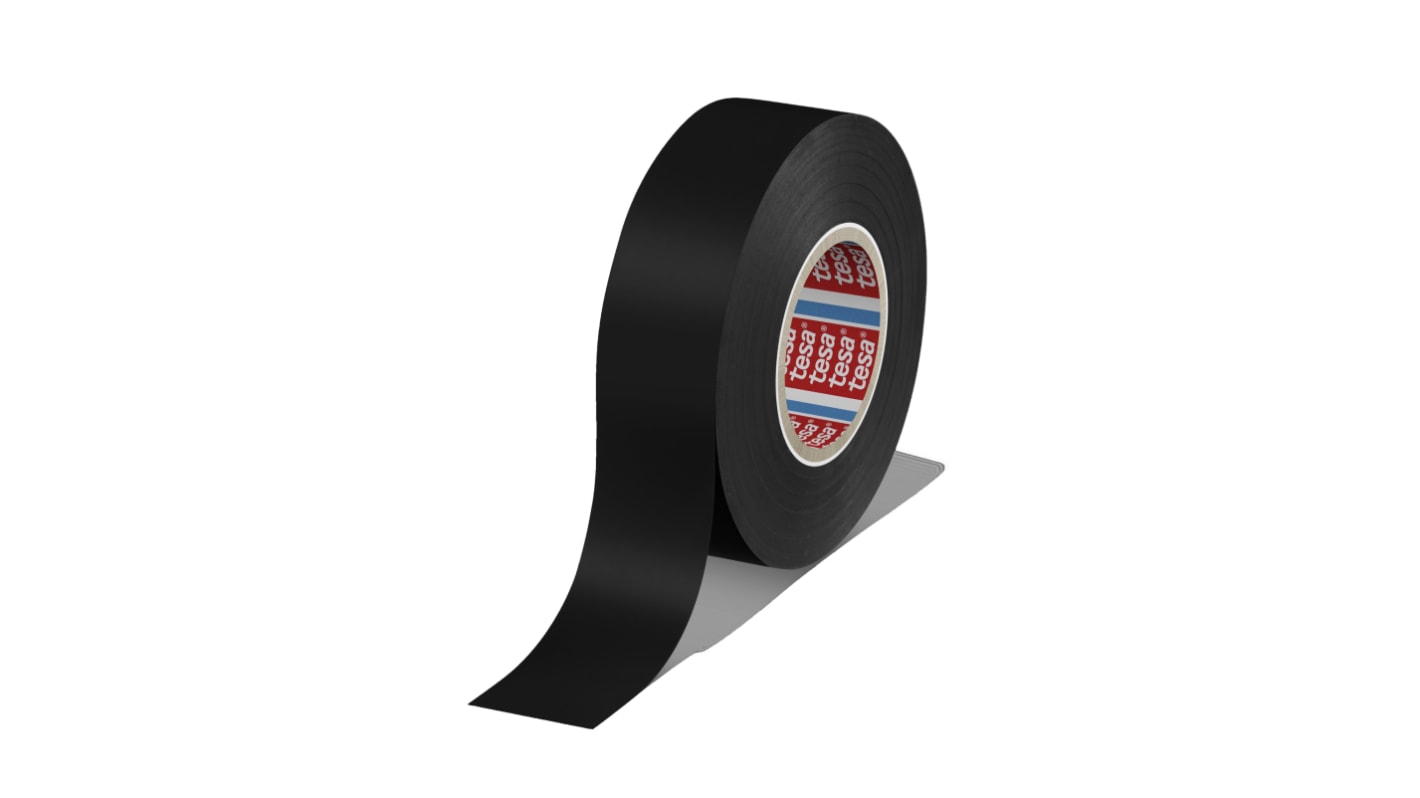

Tesa 4163 Black Polyvinyl Chloride Electrical Insulation Tape, 25mm x 33 m

RS stock no.:: 277-5072
Mfr. Part No.:: 04163-00006-02
Manufacturer:: Tesa

Tesa 4163 Black Polyvinyl Chloride Electrical Insulation Tape, 25mm x 33 m

Subtotal (1 unit)*

R 212,09

(exc. VAT)

R 243,90

(inc. VAT)

FREE delivery for orders over R 1,500.00

Limited stock

376 left, ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 212.09

*price indicative

RS stock no.:: 277-5072
Mfr. Part No.:: 04163-00006-02
Manufacturer:: Tesa

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Tesa
	Product Type	Electrical Insulation Tape
	Colour	Black
	Breakdown Voltage	7kV
	Width	25mm
	Length	33m
	Backing Material	Polyvinyl Chloride
	Thickness	126μm
	Maximum Operating Temperature	33°C
	Trade Name	4163
	Adhesive Material	Acrylic
	Adhesion Strength	1.8N/cm
	Minimum Operating Temperature	33°C
	Standards/Approvals	DIN EN 60454-2, UL510, US 302
	Tensile Strength	30N/cm

	Select all
	Brand Tesa
	Product Type Electrical Insulation Tape
	Colour Black
	Breakdown Voltage 7kV
	Width 25mm
	Length 33m
	Backing Material Polyvinyl Chloride
	Thickness 126μm
	Maximum Operating Temperature 33°C
	Trade Name 4163
	Adhesive Material Acrylic
	Adhesion Strength 1.8N/cm
	Minimum Operating Temperature 33°C
	Standards/Approvals DIN EN 60454-2, UL510, US 302
	Tensile Strength 30N/cm

Datasheet - 04163-00006-02

Exempt

COO (Country of Origin):: IT

TESA Electrical Insulation Tape, 25mm Width, 33m Length - 04163-00006-02

This electrical insulation tape is a PVC-backed, acrylic-adhesive solution for insulating and protecting wiring and electrical joints. It is designed for use where reliable dielectric separation and flexible wrapping are required, functioning across typical wiring and cabling tasks in installations and maintenance.

Features and Benefits:

• 126μm thickness provides consistent film integrity and handling
• 7000V breakdown voltage offers high-voltage dielectric separation
• 30N/cm tensile strength maintains mechanical stability under strain
• 1.8N/cm adhesion strength ensures secure initial tack
• Acrylic adhesive resists temperature-related softening for performance

Applications

• Suitable for insulating splices and terminations in control panels
• Ideal for colour-coding and bundling wiring runs
• Used with single-core cables in electrical maintenance work
• Can be used for temporary surface protection during installation
• Suitable for wrapping joints in high-voltage test setups

What backing material provides the tape’s flexibility and electrical barrier?

A polyvinyl chloride backing supplies both flexibility and insulating properties.

Which approvals indicate conformity with recognised tape standards?

It meets DIN EN 60454-2 and UL510 specifications and carries US 302 recognition.

How does the adhesive type affect long-term performance?

The acrylic adhesive maintains adhesion over time and offers resistance to temperature-related degradation.

What mechanical loads can the tape withstand before failure?

The material endures tensile loads up to 30N/cm before tensile failure occurs.
