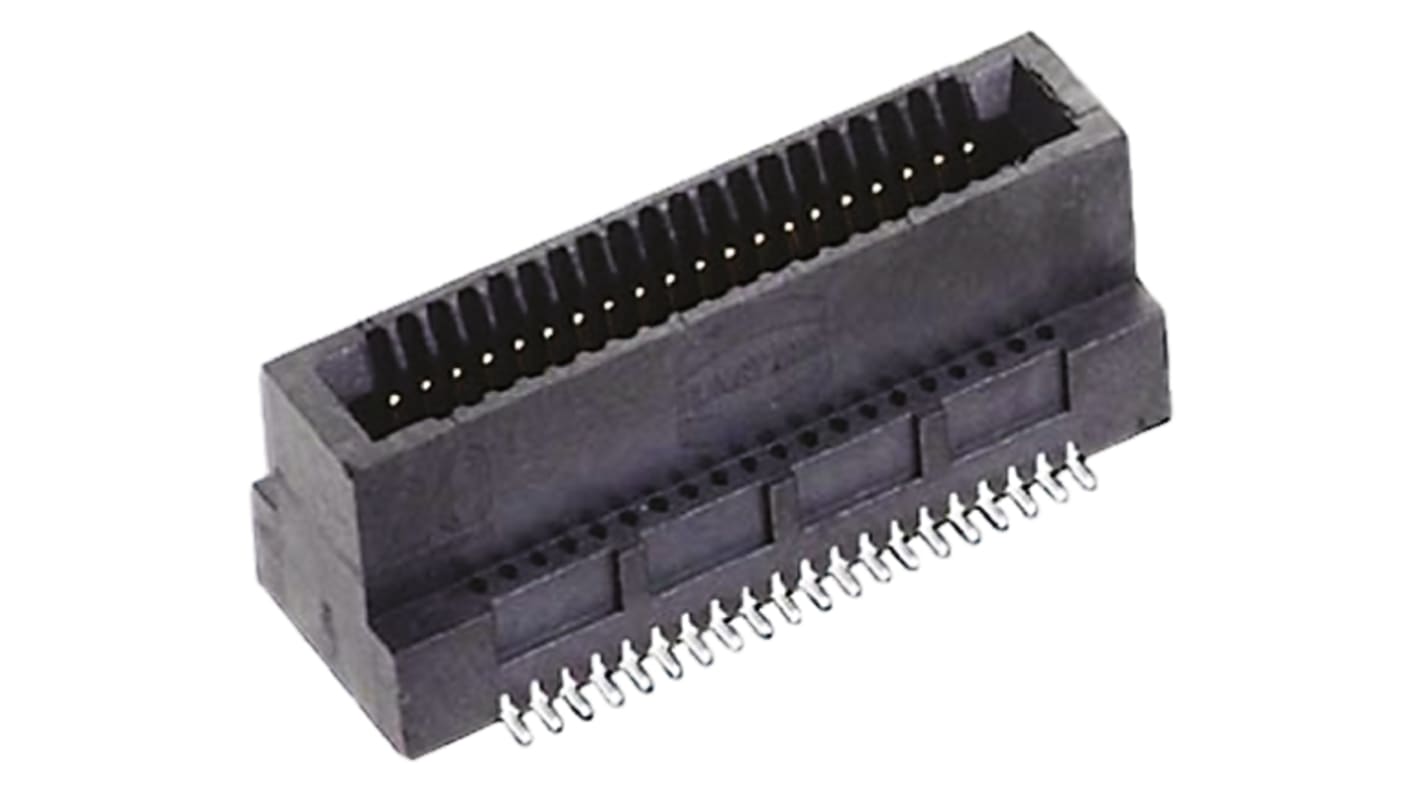

HARTING 15 Series Edge Connector, Surface Mount, 40-Contacts, 0.8mm Pitch, 2-Row, Solder Termination
- RS stock no.:
- 747-2512
- Mfr. Part No.:
- 15010404601042
- Manufacturer:
- HARTING
Stock information currently inaccessible
- RS stock no.:
- 747-2512
- Mfr. Part No.:
- 15010404601042
- Manufacturer:
- HARTING
Specification
Technical data sheets
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Body Orientation | Straight | |
| Number of Contacts | 40 | |
| Number of Rows | 2 | |
| Pitch | 0.8mm | |
| Mounting Type | Surface Mount | |
| Termination Method | Solder | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Current Rating | 1.7A | |
| Voltage Rating | 400.0 V | |
| Series | 15 | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Body Orientation Straight | ||
Number of Contacts 40 | ||
Number of Rows 2 | ||
Pitch 0.8mm | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Current Rating 1.7A | ||
Voltage Rating 400.0 V | ||
Series 15 | ||
- COO (Country of Origin):
- CN
