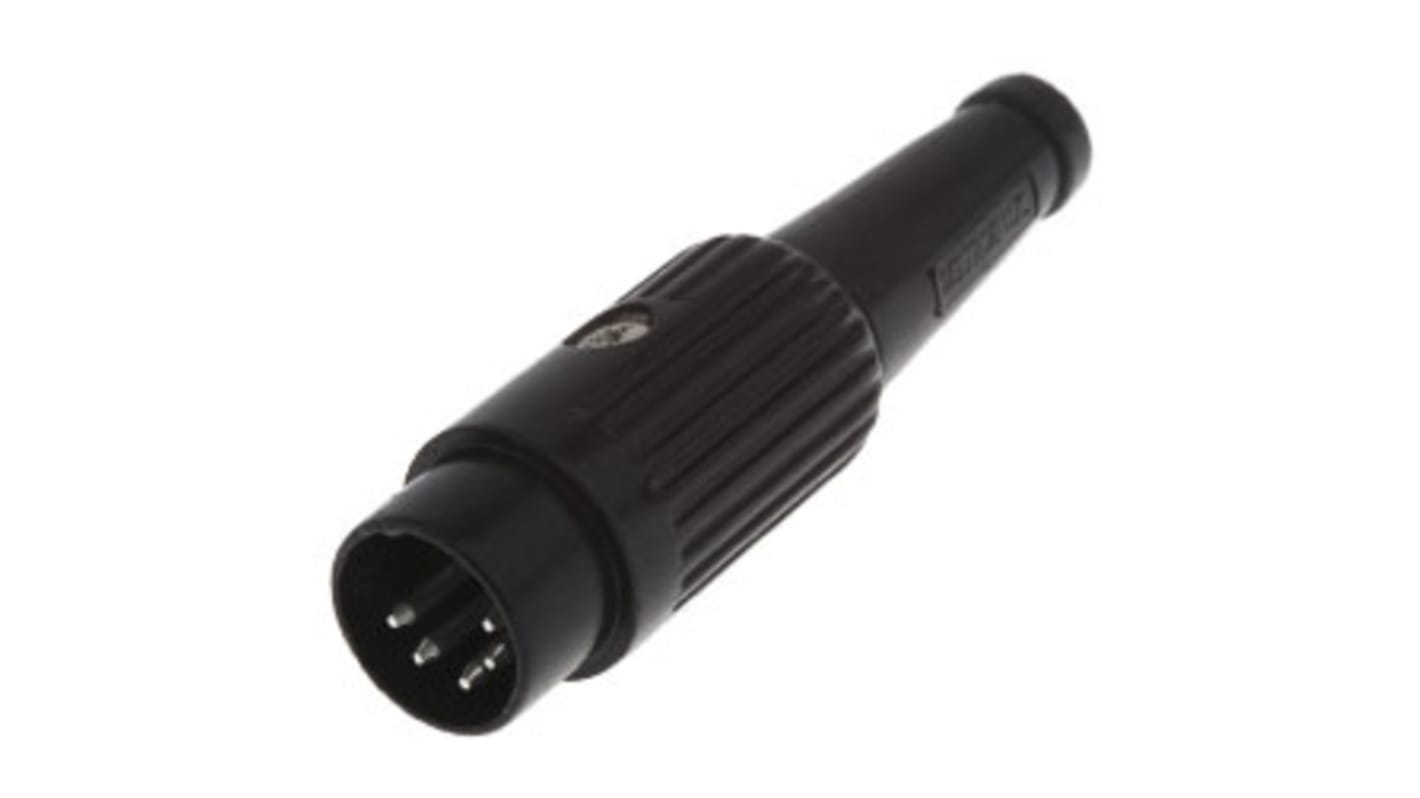

Deltron, 592 5 Pole Straight Standard DIN Plug, DIN 45329, DIN 45326, DIN 45327, DIN 41524, DIN 45322, 2A, 34V ac/dc,
- RS stock no.:
- 180-6677
- Mfr. Part No.:
- 592-0501
- Manufacturer:
- Deltron
Bulk discount available
Subtotal (1 unit)*
R 117,00
(exc. VAT)
R 134,55
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 28 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 117.00 |
| 5 - 9 | R 114.08 |
| 10 - 24 | R 110.66 |
| 25 - 49 | R 106.23 |
| 50 + | R 101.98 |
*price indicative
- RS stock no.:
- 180-6677
- Mfr. Part No.:
- 592-0501
- Manufacturer:
- Deltron
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron | |
| Number of Contacts | 5 | |
| Product Type | DIN Plug | |
| Current | 2A | |
| Mount Type | Cable | |
| Connector Size | Standard | |
| Mating Type | Locking Ring | |
| Connector Gender | Male | |
| Shield Type | Shielded | |
| Orientation | Straight | |
| Voltage | 34V ac/dc | |
| Minimum Operating Temperature | -25°C | |
| Termination Type | Crimp | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 70°C | |
| DIN Number | DIN 45329, DIN 45326, DIN 45327, DIN 41524, DIN 45322 | |
| Standards/Approvals | No | |
| Series | 592 | |
| Pole Format | 5 | |
| Housing Material | Zinc Alloy | |
| Contact Material | Brass | |
| Contact Plating | Silver | |
| Select all | ||
|---|---|---|
Brand Deltron | ||
Number of Contacts 5 | ||
Product Type DIN Plug | ||
Current 2A | ||
Mount Type Cable | ||
Connector Size Standard | ||
Mating Type Locking Ring | ||
Connector Gender Male | ||
Shield Type Shielded | ||
Orientation Straight | ||
Voltage 34V ac/dc | ||
Minimum Operating Temperature -25°C | ||
Termination Type Crimp | ||
Contact Gender Male | ||
Maximum Operating Temperature 70°C | ||
DIN Number DIN 45329, DIN 45326, DIN 45327, DIN 41524, DIN 45322 | ||
Standards/Approvals No | ||
Series 592 | ||
Pole Format 5 | ||
Housing Material Zinc Alloy | ||
Contact Material Brass | ||
Contact Plating Silver | ||
- COO (Country of Origin):
- GB
A FULLY SCREENED ROBUST RANGE OF DIN CONNECTORS FOR USE IN INSTRUMENTATION AND AUDIO APPLICATIONS.AVAILABLE IN BRIGHT NICKEL FINISH WITH INTERCHANGEABLE BLACK PLASTIC LOCKING RINGS. A SIMPLE HALF TURN OF THE RING SECURES THE PLUG ONTO THE MATING PANEL SOCKET (SOLD SEPERATELY)CONSTRUCTION INCORPORATES CABLE GRIP AND STRAIN RELIEF
